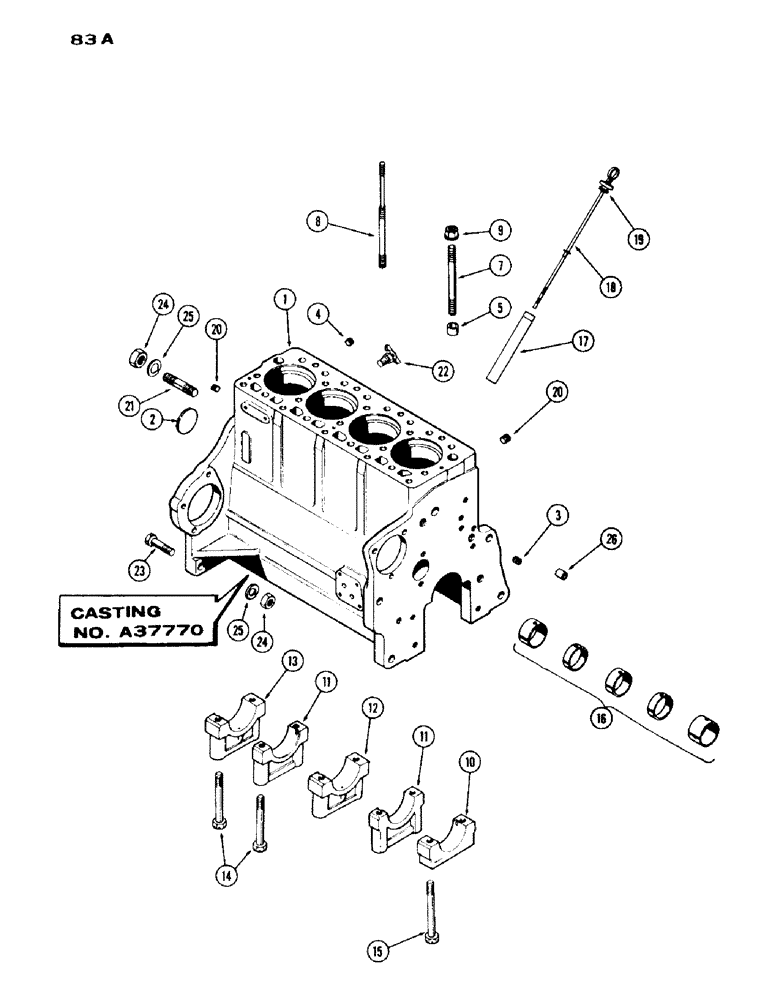

Запчасти Case IH 430 (083A) - CYL. BLOCK ASSY., CASTING NO. A37770, ENG S/N 2610998 THRU 2614826, 430 AND 530 SERIES, 188 DSL ENG. (02) - ENGINE
№
Артикул
Название
Примечание
Количество
NSS
NOT SOLD SEPARAT
SHORT BLOCK ASSY. (Casting No. A37770) (Order A40592 fron Figure 82) (includes stripped block, crankshaft & brgs., camshaft & gear, pistons & conn. rods, and oil pump assy.), Includes: Ref. 1 - 22
1шт.
1
NSS
NOT SOLD SEPARAT
BLOCK ASSY. - stripped (Casting No. A37770) Order A40818 from Figure 82, Includes: Ref. 2 - 19
1шт.
2
A39241
PLUG,Exp, 2.12" dia
- camshaft opening (2-1/8" dia.)
1шт.
3
G49070
PLUG
- drilled, oil gallery front
1шт.
4
221-1032
DRAIN PLUG,Sq Soc, 3/8"-18 NPTF
PLUG - heater plug opening (3/8" P.T. socket hd.)
1шт.
5
G49608
RING
DOWEL -, Serial Range: head-block
2шт.
7
A37904
STUD - head to block (1/2" N.C. x 4")
4шт.
7
A36902
STUD
- head to block (1/2" N.C. x 5-5/8")
11шт.
7
A36905
STUD
- head to block (1/2" N.C. x 6")
2шт.
8
A36903
STUD
- head and cover
2шт.
9
A37030
FLANGE NUT
- head stud (1/2" N.C. flanged)
19шт.
10
G2126
CAP
- front crankshaft brg.
1шт.
11
G2128
CAP
- intermediate crankshaft brg.
2шт.
12
G2127
CAP
- center crankshaft brg.
1шт.
13
G2129
CAP
- rear crankshaft brg.
1шт.
14
G49078
BOLT - bearing cap (1/2 x 4-1/2" N.C. spec.)
8шт.
15
G49077
BOLT
- front brg. cap (1/2 x 5-1/8" N.C. spec.)
2шт.
16
A41232
KIT
BUSHING SET - camshaft (pre-sized)
1шт.
17
A37149
TUBE
- dipstick
1шт.
18
A37148
DIPSTICK
- oil level, Includes: Ref. 19
1шт.
19
F62075
O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro
"O" RING - dipstick seal (3/4 x 1 x 1/8")
2шт.
20
217-433
PLUG,Hex Soc, 1/4" - 18 NPTF
Oil gallery Hex Soc, 1/4"-18 NPTF
2шт.
21
A29333
STUD
- engine mounting (5/8" N.C. x 2-1/2")
2шт.
22
217-103
COCK, DRAIN
COCK - drain, cyl. block (1/4" P.T.)
1шт.
23
A30099
X
BOLT - eng. to torque tube (5/8 x 3-1/2")
2шт.
24
25-1110
NUT,5/8"-18, G5
- 5/8" N.F. hex
4шт.
26
A29442
RING
- dowel, timing gear cover
1шт.
Выбрано товаров: 28
