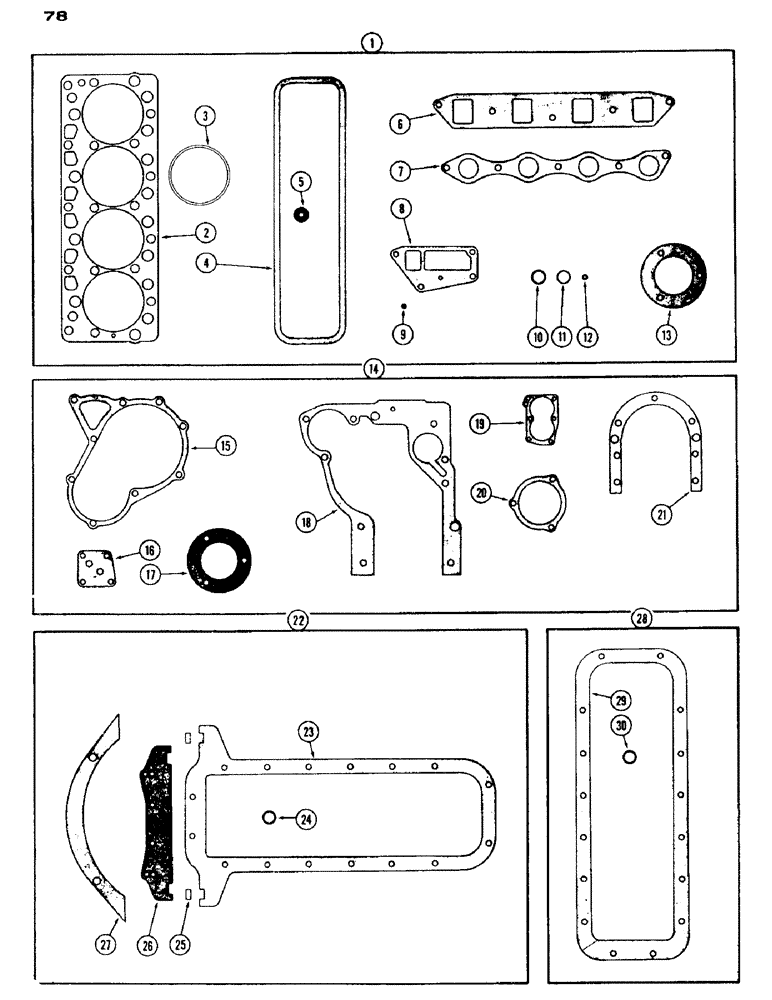

Запчасти Case IH 430 (078) - ENGINE GASKET KITS, 430 AND 530 SERIES, 188 DIESEL ENGINE (02) - ENGINE

1

A40707

GASKET KIT

VALVE GRIND KIT, Includes: Ref. 2 - 13

1шт.

For complete engine overhaul Order: 1-A40707, 1-G11950 & 1-A40713 or 1-A40712

1шт.

2

A36877

GASKET

-, Serial Range: head-block

1шт.

3

A36900

RING, PISTON

RING - fire (orange coded)

4шт.

4

G46866

GASKET

- valve cover

1шт.

5

G46867

GROMMET

- rubber, valve cover

2шт.

6

G46871

GASKET

- intake manifold

1шт.

7

G46872

MANIFOLD GASKET

- exhaust manifold

1шт.

8

G46858

GASKET

- pump drive, Serial Range: cover-head

1шт.

9

G46851

SEAL

- rubber, valve stem

8шт.

10

G49068

GASKET

- seat, fuel injector

4шт.

11

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - injector, Serial Range: tube-pump

8шт.

12

222-101

SLEEVE,3/16" Tube

- fuel line, 3/16" Tube

4шт.

12

222-103

SLEEVE,5/16" Tube

Fuel line 5/16" Tube

4шт.

13

G46875

GASKET

- water pump, order A38083

1шт.

14

G11950

GASKET

CYLINDER BLOCK KIT, Includes: Ref. 15 - 21

1шт.

For complete engine overhaul Order: 1-A40707, 1-G11950 & 1-A40713 or 1-A40712

1шт.

15

G46859

GASKET

- pump drive cover

1шт.

16

G46854

GASKET

- oil filter bracket, order A38083

1шт.

17

G46875

GASKET

- water pump, order A38228

1шт.

18

A38228

GASKET

- pump drive cover (Replaces G46857)

1шт.

19

G46852

GASKET

- oil pump cover

1шт.

20

A30042

GASKET

- power steering pump

1шт.

21

G46802

GASKET

- rear oil seal retainer

1шт.

22

A40713

KIT

OIL PAN GASKET KIT - (w/Case-O-Matic), Includes: Ref. 23 - 27

1шт.

Following part furnished to replace oil cooler tubes in Case-O-Matic tractor radiator G45479

1шт.

23

NSS

NOT SOLD SEPARAT

GASKET - oil pan

1шт.

24

A27927

OIL PAN GASKET SET

- drain plug

1шт.

25

A11604

OIL PAN GASKET SET

- rear, oil, Serial Range: pan-engine

2шт.

26

A36653

GASKET

- pivot bracket

1шт.

27

G46913

GASKET

- block to torque tube

1шт.

28

A40712

KIT

OIL PAN GASKET KIT - (std. clutch), Includes: Ref. 29 and 30

1шт.

For complete engine overhaul Order: 1-A40707, 1-G11950 & 1-A40713 or 1-A40712

1шт.

29

NSS

NOT SOLD SEPARAT

GASKET - oil pan

1шт.

30

A29727

GASKET - drain plug

1шт.
