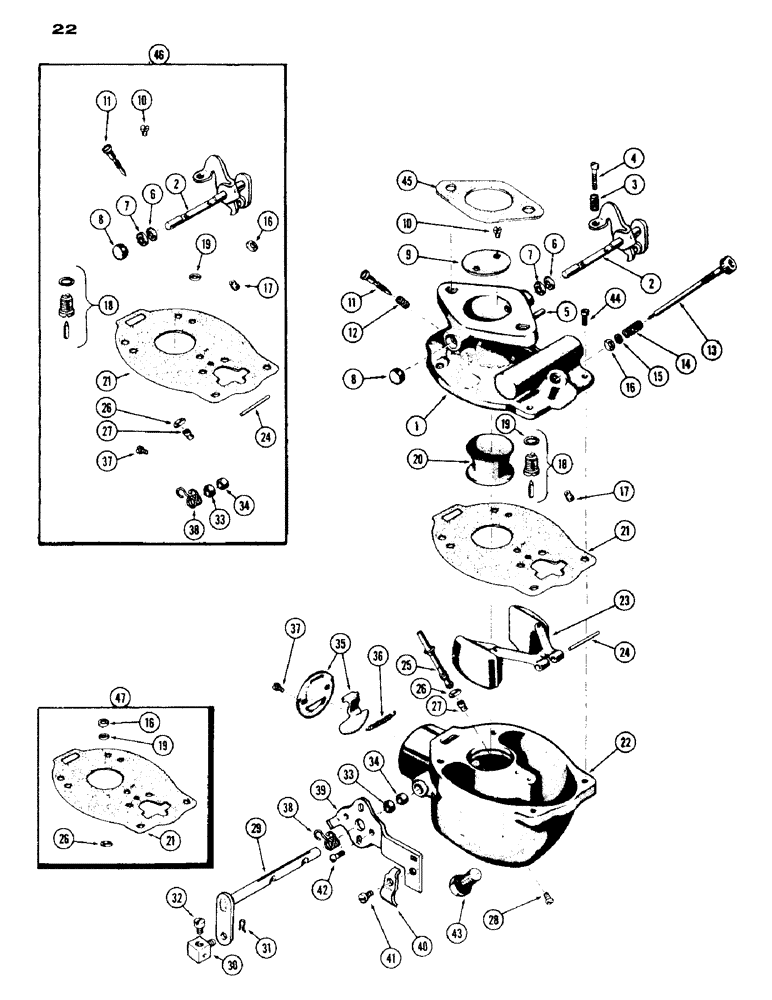

Запчасти Case IH 430 (022) - CARBURETOR PARTS, 430 SERIES, 148 B SPARK IGNITION ENGINE (02) - ENGINE

A38243

CARBURETOR

ASSY., with solenoid (Marvel-Schebler TSX-635) Replaces G11050, Includes: Ref. 1 - 44

1шт.

Replaced by A38243 with solenoid

1шт.

1

B51905

BODY ASSY. - throttle

1шт.

2

B51662

SHAFT

ASSY. - throttle

1шт.

Part of Repair kit, P/N B51926

1шт.

3

B51742

SPRING

- throttle stop screw

1шт.

4

B51680

SCREW - throttle stop

1шт.

5

B51862

PIN - throttle stop

1шт.

6

B51853

RETAINER

- packing, throttle shaft

1шт.

Part of Repair kit, P/N B51926

1шт.

7

B51805

PACKING

- throttle shaft

1шт.

Part of Repair kit, P/N B51926

1шт.

8

B51852

CUP

- throttle shaft

1шт.

Part of Repair kit, P/N B51926

1шт.

9

B51669

PLATE - throttle disc

1шт.

10

B51685

SCREW

- throttle plate

2шт.

Part of Repair kit, P/N B51926

1шт.

11

B51788

NEEDLE

- idle adjusting

1шт.

Part of Repair kit, P/N B51926

1шт.

12

B51744

SPRING

- idel adj. needle

1шт.

13

B51797

NEEDLE BEARING CAGE

NEEDLE ASSY. - high speed

1шт.

14

B51732

VALVE SPRING

SPRING - high speed needle

1шт.

15

B51870

WASHER

- high speed needle

1шт.

16

B51723

GASKET

- high speed needle (See A30241)

1шт.

Part of Gasket Kit, P/N A30241

1шт.

17

B51828

JET

- idle

1шт.

Part of Repair kit, P/N B51926

1шт.

18

A30244

SHUT-OFF VALVE

VALVE ASSY. - float, Includes: Ref. 19

1шт.

Part of Repair kit, P/N B51926

1шт.

19

B51703

GASKET

- valve seat (See A30241)

1шт.

Part of Gasket Kit, P/N A30241

1шт.

20

B51815

VENTURI

1шт.

21

B51708

GASKET

- throttle body to bowl (See A30241)

1шт.

Part of Gasket Kit, P/N A30241

1шт.

22

B51644

BODY

BOWL ASSY

1шт.

23

B51772

FLOAT

ASSY

1шт.

24

B51779

SHAFT

- float axle

1шт.

Part of Repair kit, P/N B51926

1шт.

25

B51826

NOZZLE INJECTION

NOZZLE ASSY. - main

1шт.

26

B51720

GASKET

- main nozzle (See A30241)

1шт.

Part of Gasket Kit, P/N A30241

1шт.

27

B51839

JET

- power

1шт.

Part of Repair kit, P/N B51926

1шт.

28

B51700

SCREW

- nozzle hold plug

1шт.

29

B51757

SHAFT

ASSY. - choke

1шт.

30

B51764

PIVOT

SWIVEL - choke cable

1шт.

31

B51877

SPLIT PIN

PIN - hair, swivel ret

1шт.

32

B51698

SCREW,0.164" - 32 x 5/16"

- swivel

1шт.

33

B51854

RETAINER

- choke shaft packing

1шт.

Part of Repair kit, P/N B51926

1шт.

34

B51803

PACKING

- choke shaft

1шт.

Part of Repair kit, P/N B51926

1шт.

35

B51763

VALVE

PLATE ASSY. - choke disc

1шт.

36

B51735

SPRING

- choke disc fly

1шт.

37

B51685

SCREW

- choke disc

2шт.

Part of Repair kit, P/N B51926

1шт.

38

B51741

SPRING - choke return

1шт.

Part of Repair kit, P/N B51926

1шт.

39

B51767

BRACKET - choke lever

1шт.

40

B51765

CLIP

- choke cable

1шт.

41

B51687

SCREW -, Serial Range: clip-bracket

1шт.

42

B51686

SCREW - choke bracket

1шт.

43

B51887

PLUG

- drain

1шт.

44

B51683

SCREW,#12 - 24 x 5/8"

- throttle, Serial Range: body-bowl

4шт.

45

A29956

GASKET

-, Serial Range: carburetor-manifold

1шт.

46

B51926

KIT

REPAIR KIT - (Includes Ref. 2, 6, 7, 8, 10, 11, 17, 18, 24, 27, 33, 34, 37, 38 and 47)

1шт.

47

A30241

GASKET KIT

- (Includes Ref. 16, 19, 21 and 26)

1шт.

Part of Repair kit, P/N B51926

1шт.
