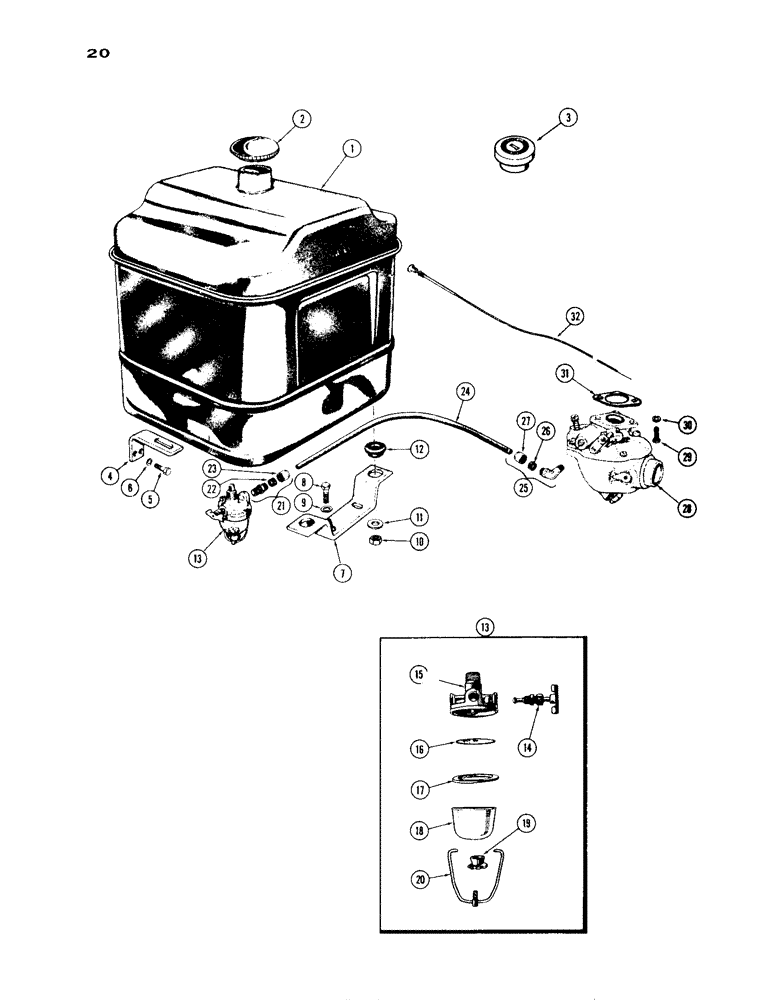

Запчасти Case IH 430 (020) - FUEL SYSTEM, 430 SERIES, 148 B SPARK IGNITION ENGINE (02) - ENGINE

1

G14471

FUEL TANK

TANK - fuel

1шт.

2

G32119

GLAND

CAP - fuel tank (See ref. 3)

1шт.

3

A32120

CAP

- fuel tank (Locking type) Includes keys. Keys not furnished for repairs

1шт.

4

G10691

SUPPORT - rear, fuel tank

1шт.

5

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

6

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

7

G10690

SUPPORT - front, fuel tank

1шт.

8

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

9

92-5

LOCK WASHER,5/16"

2шт.

10

131-5

LOCK NUT,3/8"-16, GB

NUT - lock, tank stud (3/8" N.F.)

3шт.

11

B18261

WASHER

- tank stud

3шт.

12

A7336

CUSHION

- rubber, tank support

3шт.

13

A30049

STRAINER ELEMENT

STRAINER ASSY. - fuel, Includes: Ref. 14 - 20

1шт.

14

A11205

VALVE

1шт.

15

A11214

HEAD

1шт.

16

A11211

FILTER SCREEN

SCREEN

1шт.

17

A11208

GASKET

- bowl

1шт.

18

A11209

BOWL

1шт.

19

A11210

ADJUSTER

CUP & NUT ASSY.

1шт.

20

A11212

BAIL

ASSY.

1шт.

21

222-604

FITTING,1/2"-24 x 1/8" NPT, Comp

CONNECTOR - tube, 5/16" O.D. x 1/8" P.T., Includes: Ref. 22 and 23

1шт.

22

222-653

SLEEVE,5/16" Tube, Comp

- 5/16" tube

1шт.

23

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT - 5/16" tube

1шт.

24

G10945

LINE - fuel, tank to carburetor, order A37183

1шт.

25

222-619

ELBOW,90 Degree, 1/2"-24 x 1/8" NPT, Comp

ASSY. - tube to carburetor, Includes: Ref. 26 and 27

1шт.

26

222-653

SLEEVE,5/16" Tube, Comp

- 5/16" tube

1шт.

27

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT - 5/16" tube

1шт.

28

G11050

X

CARBURETOR (Marvel-Schebler TSX-635) (See Figure 22)

1шт.

29

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

30

92-5

LOCK WASHER,5/16"

2шт.

31

A29956

GASKET

-, Serial Range: carburetor-manifold

1шт.

32

A36578

ROD

- choke control

1шт.
