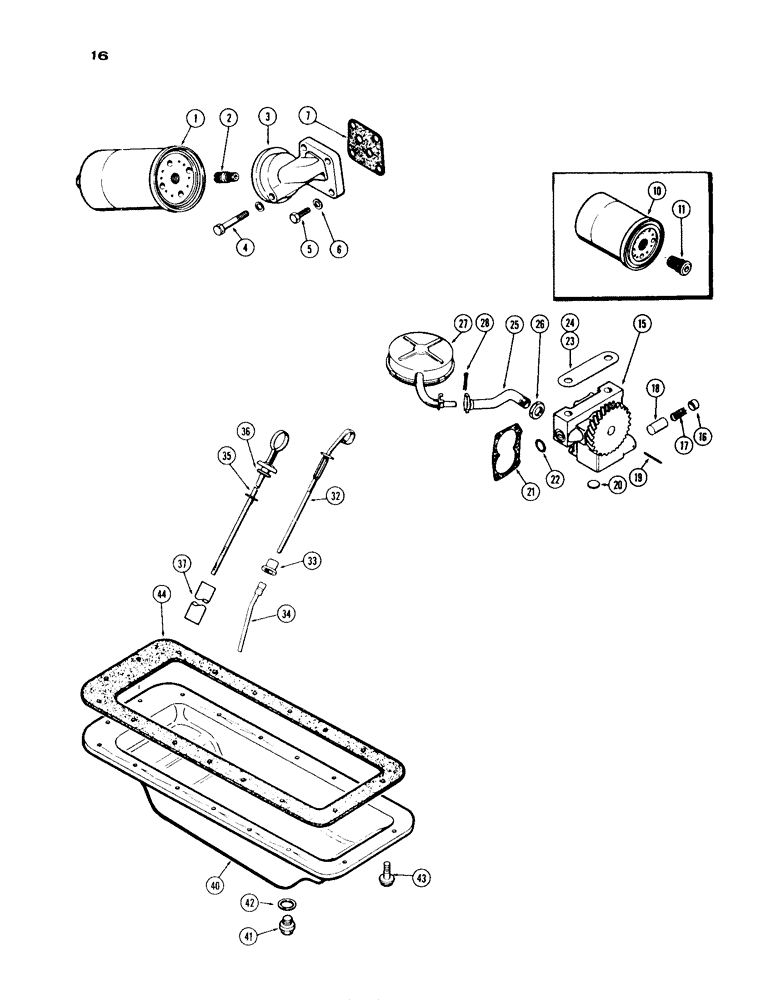

Запчасти Case IH 430 (016) - OIL FILTER, BRACKET MOUNTED, FLANGE MOUNTED AND OIL PUMP, 430 SERIES,148 B SPARK IGNITION ENGINE (02) - ENGINE

1

A37189

FILTER, ELEMENT

FILTER - engine oil (Replaces G45210)

1шт.

2

A35557

ADAPTER

-, Serial Range: filter-bracket

1шт.

3

A36616

- filter mounting

1шт.

4

13-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

- 5/16 x 3-3/4" N. C. hex. hd.

1шт.

5

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

5

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

(Upper rear) Hex, 5/16"-18 x 1 1/8", G5

1шт.

6

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

4шт.

7

G46854

GASKET

- filter, Serial Range: bracket-block

1шт.

10

A37189

FILTER, ELEMENT

FILTER - engine oil, flange mounted filter

1шт.

11

A153552

ADAPTER

- filter to block, flange mounted

1шт.

15

G11844

PUMP, ENGINE OIL

OIL PUMP ASSY. - complete, Includes: Ref. 16 - 21

1шт.

16

A29260

RETAINER

- relief spring, oil pump

1шт.

17

G48513

VALVE SPRING

SPRING - relief valve, oil pump

1шт.

18

A155144

VALVE, PRESSURE RELI

- relief, oil pump

1шт.

19

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

PIN, , Oil pump 1/8" x 1 1/8", Slotted

1шт.

20

41-102

PLUG,Exp, 1/2"

- pump body, oil

2шт.

21

G46852

GASKET

- pump cover, oil

1шт.

22

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - oil port, pump

1шт.

23

G11337

SHIM,.002" Thk

Pump to block, Oil .002" Thk

2шт.

24

G11338

SHIM,.005" Thk

Pump to block, Oil .005" Thk

1шт.

25

G45766

PIPE, EXHAUST SYSTEM

PIPE - suction, oil pump

1шт.

26

223-207

LOCK NUT

NUT - lock, pipe to pump, oil

1шт.

27

A30126

FLOAT ASST. (includes screen), oil pump

1шт.

28

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , Oil pump 1/8" x 1 1/4"

1шт.

32

G37037

DIPSTICK

- oil level (Use prior to eng. SN2122555), Includes: Ref. 33, pan

1шт.

33

G46892

OIL SEAL

- rubber, oil pan

1шт.

34

G45139

BRACKET

SUPPORT - dipstick (Used prior to eng. SN2122555), oil pan

1шт.

35

A37148

DIPSTICK

- oil level (1st used eng. SN2122555), Includes: Ref. 36, pan

1шт.

36

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - dipstick, oil pan

2шт.

37

A37149

TUBE

- dipstick (1st used eng. SN2122555), oil pan

1шт.

40

A36726

PAN

OIL PAN ASSY, Includes: Ref. 41 and 42

1шт.

41

A14280

PLUG

- drain, oil pan

1шт.

42

A27927

OIL PAN GASKET SET

- drain plug, oil pan

1шт.

43

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - oil pan (special includes lockwasher)

16шт.

44

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A40710 from Figure 6)

1шт.
