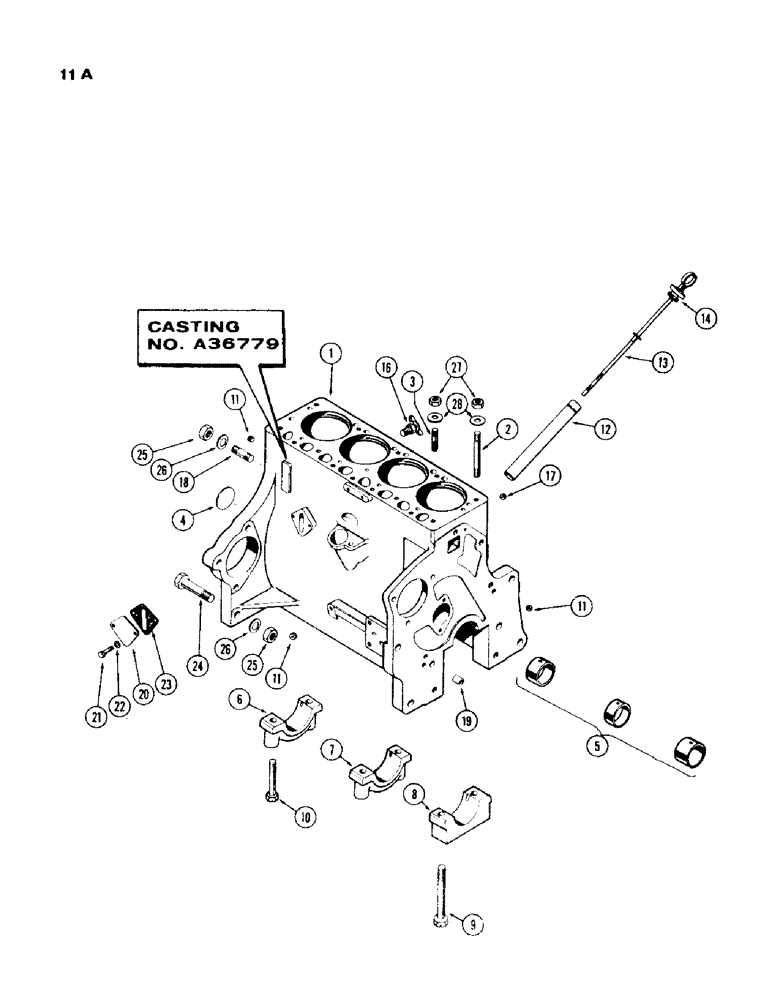

Запчасти Case IH 430 (011A) - CYL. BLOCK ASSY., 430 SERIES, 148 B SPARK IGN. ENG., CASTING NO. A36779, W/ BRACKET MNTD OIL FILTER (02) - ENGINE

A40586

SKELETON ENGINE

SHORT BLOCK ASSY. (Casting No. A36779) (Includes stripped block, crankshaft & bearings, camshaft & gear, pistons & sleeves, conn. rods and oil pump)

1шт.

1

A40584

X

BLOCK ASSY. - stripped (Casting No. A36779), Includes: Ref. 2 - 19

5шт.

2

A29436

STUD

- head to block (1/2 x 5-7/8")

5шт.

3

A30057

STUD

- head to block (1/2 x 2")

9шт.

4

A39241

PLUG,Exp, 2.12" dia

- rear (2-1/8" expansion type)

1шт.

5

A41225

KIT

BUSHING SET - camshaft (pre-sized)

1шт.

6

G2037

CAP

- rear bearing, crankshaft

1шт.

7

G2036

CAP

- center brg., crankshaft

1шт.

8

G2035

CAP

- front brg., crankshaft

1шт.

9

G49059

BOLT

- front brg. cap (1/2 x 4-3/4")

2шт.

10

G49037

BOLT

- bearing cap (1/2 x 3")

4шт.

11

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Oil gallery Hex Soc, 1/4"-18 NPTF

3шт.

12

A37149

TUBE

- dipstick

1шт.

13

A37148

DIPSTICK

- oil level, Includes: Ref. 14

1шт.

14

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - dipstick seal

1шт.

16

217-103

COCK, DRAIN

DRAINCOCK - cyl. block (1/4" P.T.)

1шт.

17

221-1850

PLUG,Hex Soc, 1/16"-27

- L.H. side, 1/16" P.T. socket hd.

1шт.

18

A29333

STUD

- eng. to torque tube (5/8" x 3")

2шт.

19

A29442

RING

- dowel, timing gear cover

2шт.

20

G11702

COVER

- fuel pump opening

1шт.

21

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

22

92-5

LOCK WASHER,5/16"

2шт.

23

G46902

GASKET

- cover

1шт.

24

A30099

X

BOLT - eng. to torque tube (5/8 x 3-1/2")

2шт.

25

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex

4шт.

26

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

27

A30021

NUT

- head stud (1/2" N.F. hex)

4шт.

28

NLS

NO LONGER SERVICED

WASHER - head stud (17/32 I.D. x 27/32 O.D. x 1/16")

14шт.
