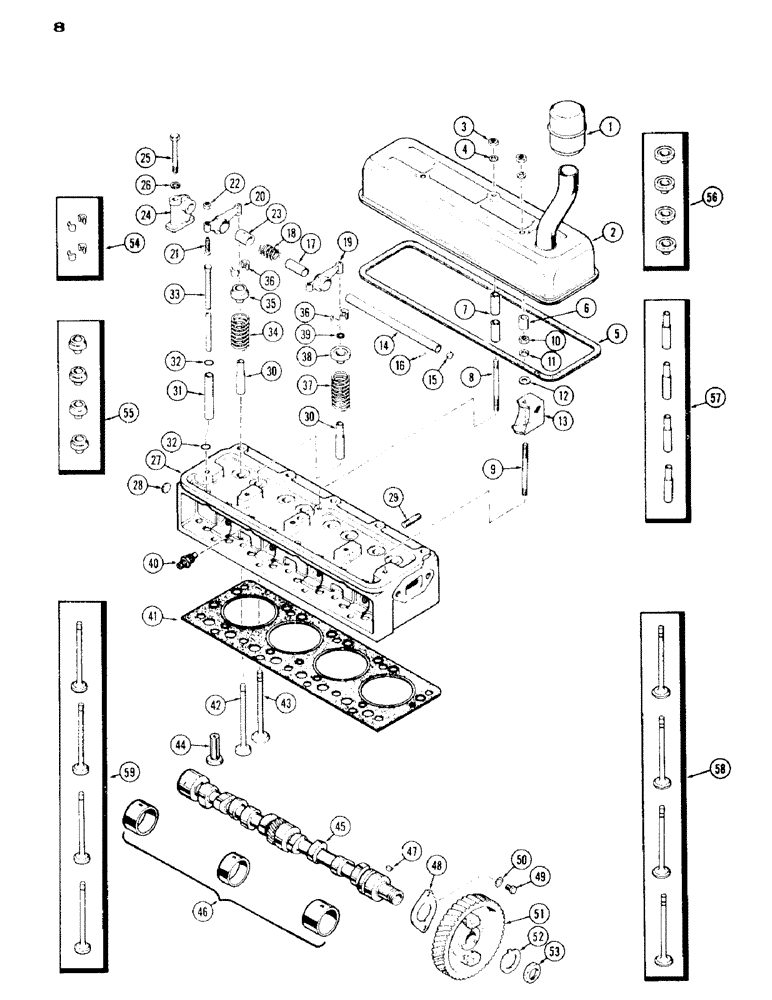

Запчасти Case IH 430 (008) - CYLINDER HEAD ASSEMBLY, 430 SERIES, 148 B SPARK IGNITION ENGINE (02) - ENGINE

1

A36608

CAP

- oil filler, & breather

1шт.

2

G11597

COVER - valve and rocker arm

1шт.

3

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

4

A29277

WASHER

- plain, cover nut

3шт.

5

A30009

GASKET

-, Serial Range: cover-head

1шт.

6

A30065

SPACER

- cover (17/32" high)

2шт.

7

A29999

SPACER

- cover (19/32" high)

2шт.

8

G49504

STUD

- cover to head (3/8" x 4-5/8" w/1" thrd.)

1шт.

9

G49505

STUD

- brkt. & cover to hd. (3/8" x 4-5/8" w/2" thrd.)

2шт.

10

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

A29277

WASHER

- plain, bracket nut

2шт.

13

G46250

BRACKET

- rocker arm shaft

4шт.

14

A29444

SHAFT

- rocker arm

2шт.

15

A26796

PLUG

- rocker shaft

2шт.

16

139-205

PIN - taper, rocker shaft 2/0 x 3/4", Tapered

2шт.

17

A30008

SPACER

- rocker arm shaft

2шт.

18

A30007

SPRING

- rocker arm shaft

4шт.

19

G45234

ARM

ROCKER ARM - R.H. (Includes: Ref. 21 - 23)

4шт.

20

G45235

ARM

ROCKER ARM - L.H. (Includes: Ref. 21 - 23)

4шт.

21

A31056

ADJUSTMENT SCREW,5/16" - 24 x 1 11/32"

SCREW - adjusting

8шт.

22

25-155

JAM NUT,Jam, 5/16"-24, G5

- jam 5/16" N.F. hex

8шт.

23

A31055

BUSHING

- rocker arm

8шт.

24

G2107

BRACKET

- center, rocker shaft

1шт.

25

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8"

3шт.

26

92-6

LOCK WASHER,3/8"

3шт.

27

G11909

HEAD ASSY. - cylinder, Includes: Ref. 28 - 32

1шт.

28

A30079

X

PLUG - rear (1-1/8" dia.)

1шт.

29

A29431

STUD

- manifold

7шт.

30

NSS

NOT SOLD SEPARAT

GUIDE - valve stem (See Ref. 57)

8шт.

31

G11360

TUBE,0.687" OD x 3.687" L

- push rod

8шт.

32

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - tube seal

16шт.

33

G11086

ROD

PUSH ROD

8шт.

34

G10004

SPRING

- exhaust valve

4шт.

35

NSS

NOT SOLD SEPARAT

ROTO CAP - exhaust valve (See Ref. 55)

4шт.

36

NSS

NOT SOLD SEPARAT

LOCK - retainer, valve spring (Order Ref. 54)

16шт.

37

A30025

SPRING

- intake valve

4шт.

38

NSS

NOT SOLD SEPARAT

RETAINER - intake valve spring (See Ref. 56)

4шт.

39

G46851

SEAL

- intake valve stem

4шт.

40

A21462

SENDER UNIT

SENDER - heat gauge

1шт.

41

G10672

CYLINDER HEAD GASKET

-, Serial Range: head-block

1шт.

42

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order Ref. 59)

4шт.

43

NSS

NOT SOLD SEPARAT

VALVE - intake (See Ref. 58)

4шт.

44

A30006

TAPPET

- valve

8шт.

45

G2055

CAMSHAFT

1шт.

46

A41225

KIT

BUSHING SET - camshaft (pre-sized)

1шт.

47

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Gear to camshaft #6, 5/32" x 5/8"

1шт.

48

A29290

PLATE

- thrust, camshaft

1шт.

49

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

- thrust plate

2шт.

50

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

51

G37066

GEAR

- camshaft

1шт.

52

A29438

LOCK NUT

LOCKWASHER - camshaft nut

1шт.

53

A30063

NUT

- camshaft

1шт.

54

G11929

LOCK

KIT - valve spring (Set of 4)

4шт.

55

G11928

CAP

ROTO-CAPS - exhaust valve (Set of 4)

1шт.

56

G11927

RETAINER

S - intake valve spring (Set of 4)

1шт.

57

A30270

GUIDE

SET - valve stem (Set of 4)

2шт.

58

G11914

VALVE

- intake (Set of 4)

1шт.

59

G11915

VALVE, ENG EXHAUST,

VALVE - exhaust (Set of 4)

1шт.
