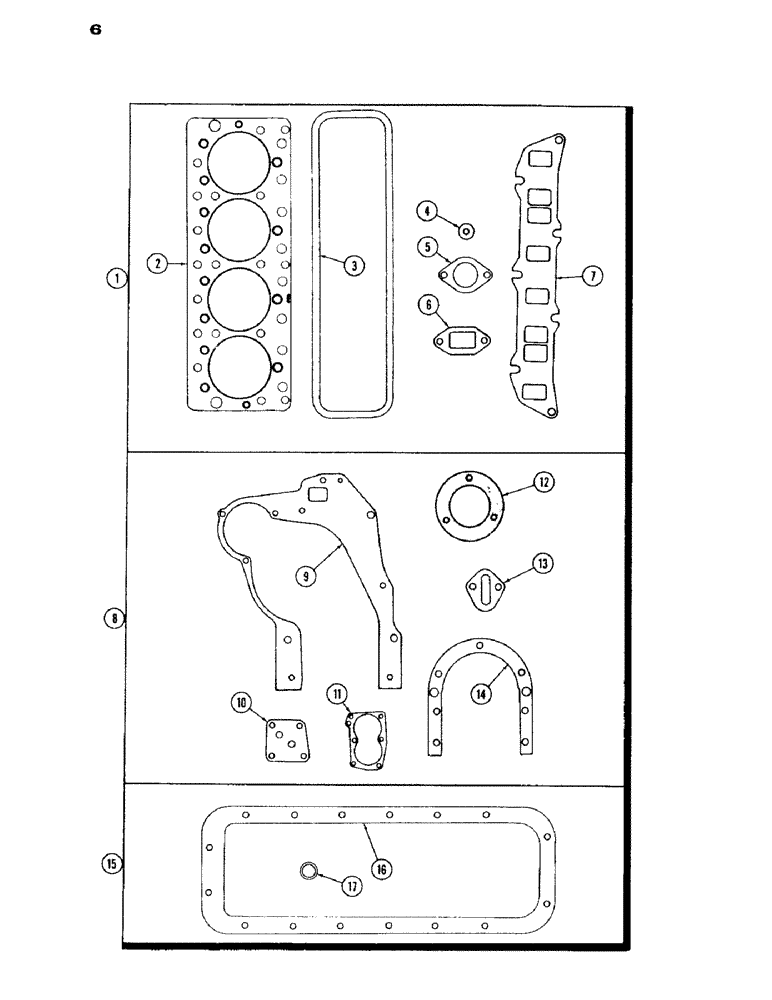

Запчасти Case IH 430 (006) - ENGINE GASKET KITS, 430 SERIES, 148 B SPARK IGNITION ENGINE (02) - ENGINE

1

G11917

KIT

VALVE GRIND KIT, Includes: Ref. 2 - 7

1шт.

2

G10672

CYLINDER HEAD GASKET

-, Serial Range: head-block

1шт.

3

A30009

GASKET

- valve cover

1шт.

4

G46851

SEAL

- rubber, intake valve stem

4шт.

5

A29956

GASKET

- carburetor

1шт.

6

A30003

GASKET

- water outlet elbow

1шт.

7

A30030

GASKET

- manifold

1шт.

8

G11916

X

CYLINDER BLOCK KIT, Includes: Ref. 9 - 14

1шт.

9

A30010

GASKET

- timing gear cover (Order A38226)

1шт.

10

G46854

GASKET

- oil filter bracket

1шт.

11

G46852

GASKET

- oil pump cover

1шт.

12

G46875

GASKET

- water pump (Order A38083)

1шт.

13

G46902

GASKET

- fuel pump opening

1шт.

14

G46802

GASKET

- rear oil seal retainer

1шт.

15

A40710

KIT

GASKET - oil pan, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

GASKET - oil pan

1шт.

17

A27927

OIL PAN GASKET SET

- drain plug

1шт.
