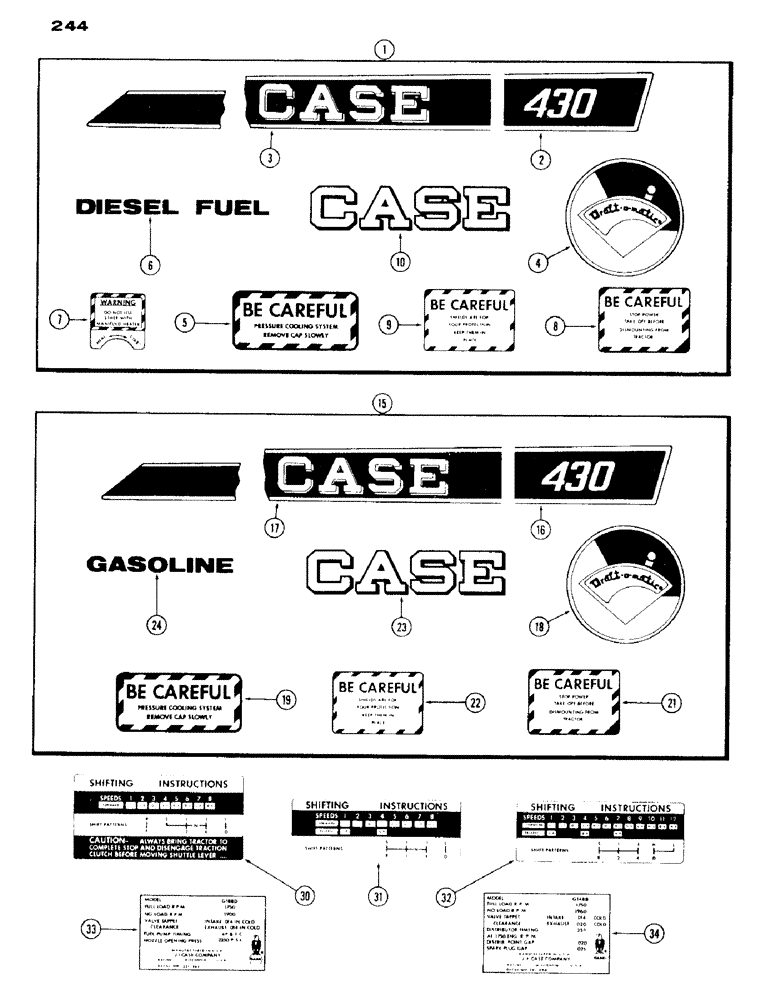

Запчасти Case IH 430 (244) - 430 SERIES DECALS, DIESEL, SPARK IGNITION AND MISCELLANEOUS (09) - CHASSIS

1

B17112

X

DECAL KIT, Includes: Ref. 2 - 10

1шт.

2

321-368

X

430 (RIGHT HAND) (HOOD)

1шт.

2

321-369

X

430 (LEFT HAND) (HOOD)

1шт.

3

321-776

DECAL

CASE (RIGHT HAND) (HOOD)

1шт.

3

321-777

DECAL

CASE (LEFT HAND) (HOOD)

1шт.

4

321-767

DECAL

DRAFT-O-MATIC (inst. panel)

2шт.

5

321-6672

DECAL

BE CAREFUL PRESSURE COOLING (Replaces 321-122)

1шт.

6

321-230

DECAL

DIESEL FUEL (FUEL TANK)

2шт.

7

321-422

DECAL

WARNING HEATER

1шт.

8

321-605

DECAL

BE CAREFUL (P. T. O.) (TOOL BOX)

1шт.

9

321-608

DECAL

BE CAREFUL (P. T. O.) (P. T. O. SHIELD)

1шт.

10

321-287

DECAL

CASE (SEAT)

1шт.

15

B17111

X

DECAL KIT, SPARK IGNITION, Includes: Ref. 16 - 24

1шт.

16

321-368

X

430 (RIGHT HAND) (HOOD), SPARK IGNITION

1шт.

16

321-369

X

430 (LEFT HAND) (HOOD), SPARK IGNITION

1шт.

17

321-776

DECAL

CASE (RIGHT HAND) (HOOD), SPARK IGNITION

1шт.

17

321-777

DECAL

CASE (LEFT HAND) (HOOD), SPARK IGNITION

1шт.

18

321-767

DECAL

DRAFT-O-MATIC (inst. panel), SPARK IGNITION

2шт.

19

321-122

DECAL

BE CAREFUL PRESSURE COOLING, SPARK IGNITION

1шт.

21

321-605

DECAL

BE CAREFUL (P. T. O.) (TOOL BOX), SPARK IGNITION

1шт.

22

321-608

DECAL

BE CAREFUL (P. T. O. shield), SPARK IGNITION

1шт.

23

321-287

DECAL

CASE (seat), SPARK IGNITION

1шт.

24

321-18

DECAL

GASOLINE (fuel tank), SPARK IGNITION

1шт.

30

321-924

SHUTTLE SHIFT INSTRUCTIONS, MISCELLEOUS

1шт.

31

321-923

DUAL RANGE SHIFT INSTRUCTIONS, MISCELLEOUS

1шт.

32

321-922

DECAL

TRIPL-RANGE SHIFT INSTRUCTIONS, MISCELLEOUS

1шт.

33

321-882

DECAL

ENGINE DATA (DIESEL), MISCELLEOUS

1шт.

34

321-890

DECAL

ENGINE DATA (GAS), MISCELLEOUS

1шт.
