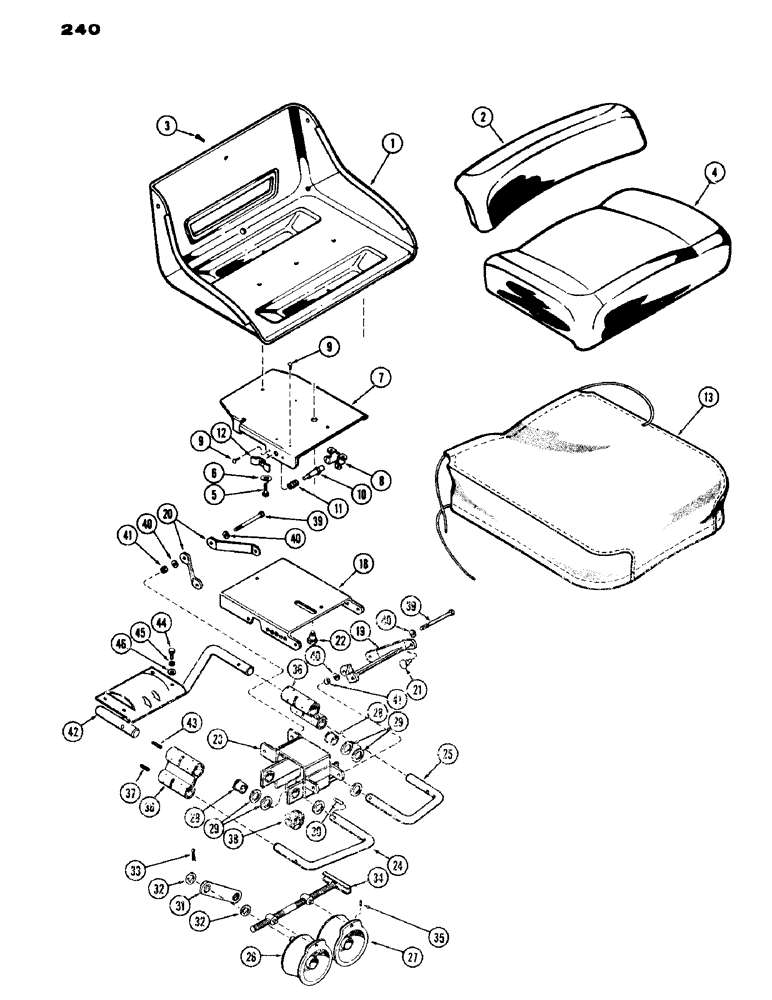

Запчасти Case IH 430 (240) - DELUXE SEAT (09) - CHASSIS

A36193

SEAT ASSY.

- (See D32724), Includes: Ref. 1 - 12

1шт.

D32724

SEAT ASSY.

- (LCK), Includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - seat (order A3193 or D32724)

1шт.

2

A24712

BACKREST

CUSHION - backrest

1шт.

3

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- (1/4" x 1/2" N. C. Ph. truss hd.)

3шт.

4

A24713

CUSHION

- seat (See item 13)

1шт.

5

175-428

SCREW,Phil Truss Hd, 1/4" - 20 x 5/8"

- seat (1/4" x 5/8" N. C. PH. truss hd.)

2шт.

6

195-518

WASHER,1/4", SAE

- (9/32" x 5/8" x 1-1/1")

2шт.

G30541

GUIDE ASSY. - seat (not illust.), Includes: Ref. 7 - 12

1шт.

7

NSS

NOT SOLD SEPARAT

GUIDE - seat pan (order G30541)

1шт.

8

G16891

BRACKET - spring retainer

1шт.

9

151-210

RIVET - bracket (3/16" x 7/16" truss hd.)

4шт.

10

G10783

PIN - plunger lock

1шт.

11

A30370

SPRING - plunger

1шт.

12

G10784

HANDLE - plunger lock

1шт.

13

A23697

COVER

- seat cushion (for worn cushion)

1шт.

A39248

CHANNEL

ASSY. - seat (not illust.) (order A37945) (Replaces A33309), Includes: Ref. 18 - 21

1шт.

18

A33310

CHANNEL

- seat

1шт.

19

G13379

ARM - pivot, front (order A38148)

1шт.

20

G10775

ARM

- pivot, rear

2шт.

21

G10779

RIVET

- pivot, Serial Range: arms-channel

4шт.

22

G49092

BOLT -, Serial Range: channel-guide

1шт.

G13385

X

SUSPENSION ASSY. - seat (illust.) (order A37951), Includes: Ref. 23 - 38

1шт.

23

G45031

BRACKET - support

1шт.

24

G46000

SHAFT - spring, right hand

1шт.

25

G46001

SHAFT - spring, left hand

1шт.

26

G45002

SPRING SEAT

SPRING - cushion, right hand

1шт.

27

G45003

SPRING SEAT

SPRING - cushion, left hand

1шт.

28

G46002

FLANGED BEARING

BEARING - spring cushion (flanged)

2шт.

29

A26462

WASHER

- shaft (4-9/64 x 1-1/4 x 14 Ga.)

6шт.

30

135-583

GROOVED PIN,1/4" x 1 1/4", Type D

Pin, Grooved, , shaft, upper 1/4" x 1 1/4", Type D

2шт.

31

G45005

LINK - spring stabilizer

1шт.

32

A26381

WASHER

- link (17/32 x 1 x 14 Ga.)

4шт.

33

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

34

G45001

STUD

- spring adjusting

1шт.

35

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, , Adj. stud 1/8" x 3/4", Slotted

2шт.

36

G45004

LEVER

- suspension

2шт.

37

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, , Lever to shaft 1/4" x 1 1/4", Slotted

2шт.

38

A30644

BUMPER

- suspension

1шт.

39

16-572

BOLT - channel (5/16" x 4-1/2" N. F. hex.)

2шт.

40

195-21

WASHER,5/16"

(11/32" x 11/16" x 1/16") 5/16"

4шт.

41

131-3

LOCK NUT,5/16"-24, GB

NUT - (5/16" N. F. self-locking)

2шт.

42

G13034

SUPPORT - seat (order A37954)

1шт.

43

138-155

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, , Lever to support 5/16" x 1 1/4", Slotted

2шт.

44

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Support Hex, 3/8"-16 x 7/8", G5, Full Thd

4шт.

45

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

46

95-6

WASHER,3/8"

- (7/16" x 1" x 5/64")

4шт.
