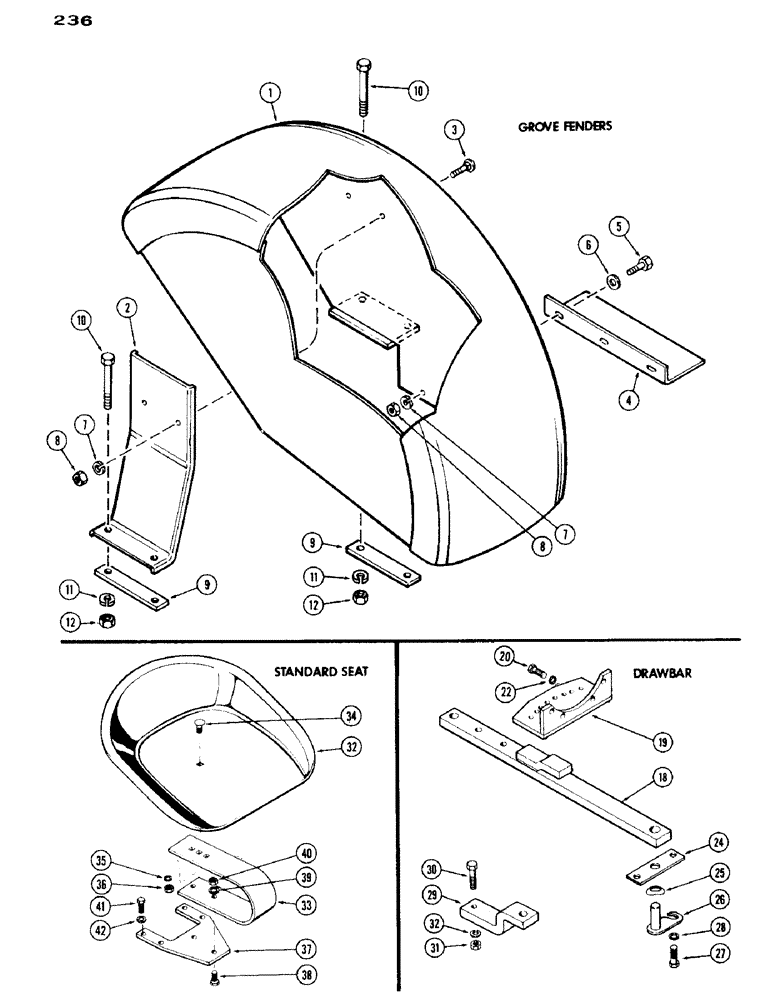

Запчасти Case IH 430 (236) - GROOVE FENDERS, DRAWBAR, AND 430 SERIES STANDARD SEAT (09) - CHASSIS

1

A36842

FENDER - right hand side, groove

1шт.

1

A36843

FENDER - left hand side, groove

1шт.

2

A36845

BRACE - fender, inside, groove

2шт.

3

11-622

BOLT - brace to fender (3/8" x 1-3/8" N. C. carr.), groove

4шт.

4

A36844

PLATE - fender reinforcement, groove

2шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Plate, groove fender Hex, 3/8"-16 x 1", G5, Full Thd

10шт.

6

95-6

WASHER,3/8"

- (7/16" x 1" x 5/64"), groove fender

6шт.

7

92-6

LOCK WASHER,3/8"

groove fender 3/8"

14шт.

8

25-106

NUT,3/8"-16, G5

- (3/8" N. C. hex.), groove fender

14шт.

9

A36846

BAR - fender mounting, groove

4шт.

10

15-10104

BOLT

- fender to bar (5/8" x 6-1/2" N. C. hex.), groove fender

8шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Groove fender 5/8"

8шт.

12

25-1010

NUT,5/8"-11, G5

Groove fender 5/8"-11, G5

8шт.

18

A36757

DRAWBAR

- (38-1/4" long) (used w/C-O-M)

1шт.

18

A36756

DRAWBAR

- (34-3/4" lg.) (used w/std. clutch)

1шт.

19

G30266

SUPPORT

- drawbar, rear

1шт.

20

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Drawbar Hex, 5/8"-11 x 1 1/2", G5, Full Thd

4шт.

22

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Drawbar 5/8"

4шт.

24

G10617

SUPPORT

- drawbar, front

1шт.

25

A35270

WASHER

- spring, drawbar

1шт.

26

G14403

PIN

- drawbar pivot

1шт.

27

15-1232

X

BOLT - front support (3/4" x 2" N. C. hex.), drawbar

2шт.

28

192-27

LOCK WASHER,3/4"

WASHER, LOCK, , Drawbar 3/4"

2шт.

29

A36754

BRACKET - raised, drawbar (L.C.K.)

1шт.

30

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

Drawbar Hex, 5/8"-11 x 3", G5

2шт.

31

25-1010

NUT,5/8"-11, G5

Drawbar 5/8"-11, G5

2шт.

32

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Drawbar 5/8"

2шт.

32

G14202

PAN - seat, 430 series standard

1шт.

33

G17203

SPRING - seat, 430 series standard

1шт.

34

11-816

BOLT,Short NK, 1/2"-13 x 1", G2

- pan to spring (1/2" x 1" N. C. carr.), 430 series standard seat

1шт.

35

92-8

LOCK WASHER,1/2"

430 series standard seat 1/2"

1шт.

36

25-108

NUT,1/2"-13, G5

- (1/2" N. C. hex.), 430 series standard seat

1шт.

37

G17204

BASE - seat spring anchor, 430 series standard

1шт.

38

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- spring to base (1/2" x 1-1/2" N. F. hex.), 430 series standard seat

2шт.

39

92-8

LOCK WASHER,1/2"

430 series standard seat 1/2"

2шт.

40

25-118

NUT,1/2"-20, G5

- (1/2" N. F. hex.), 430 series standard seat

2шт.

41

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Support, Base, 430 series standard seat Hex, 3/8"-16 x 7/8", G5, Full Thd

4шт.

42

92-6

LOCK WASHER,3/8"

430 series standard seat 3/8"

4шт.
