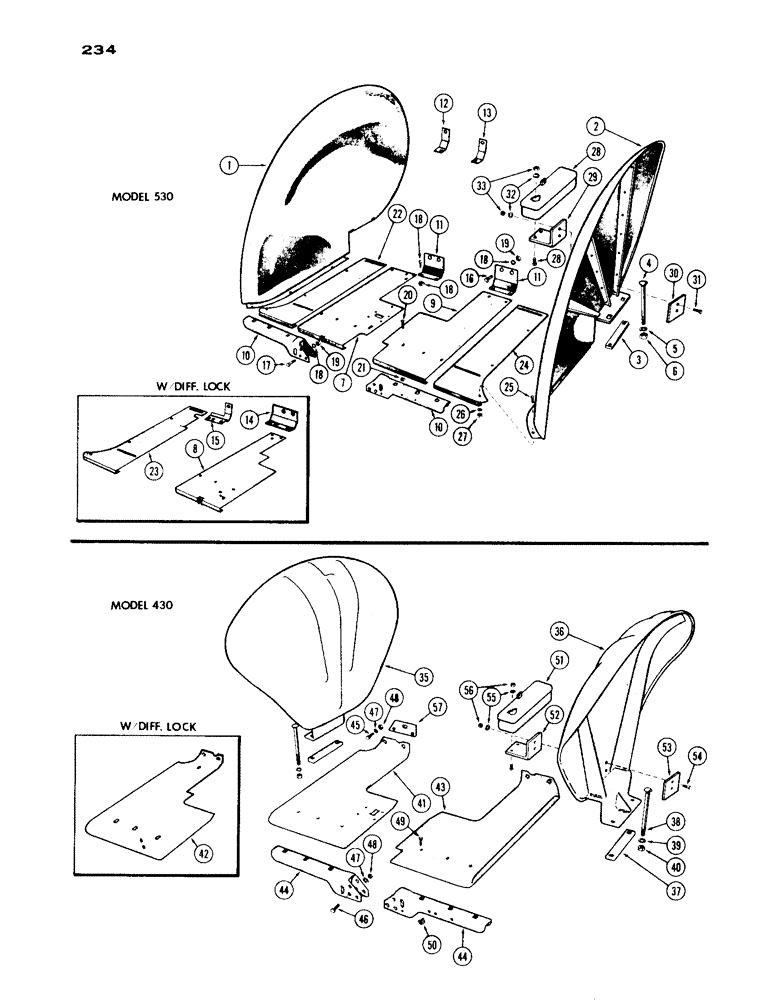

Запчасти Case IH 430 (234) - FENDER, PLATFORM AND TOOL BOX, 530 SERIES AND 430 SERIES (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
G13372
FENDER - right hand side, 530 Series
1шт.
2
G13373
FENDER - left hand side, 530 Series
1шт.
3
A29091
CLAMP - fender, 530 Series
2шт.
5
192-22
LOCK WASHER,7/16"
WASHER, LOCK, , 530 Series 7/16"
4шт.
6
129-104
NUT,7/16"-14, G5
530 Series 7/16"-14, G5
4шт.
7
G14388
PLATFORM - right hand (w/out diff. lock), 530 Series
1шт.
8
A36603
PLATFORM - right hand (w/diff lock), 530 Series
1шт.
9
G15651
PLATFORM - left hand, 530 Series
1шт.
10
G10752
SUPPORT - platform, front, 530 Series
2шт.
11
G10753
SUPPORT
- rear (Gen. Purpose) See ref. 14, 530 Series
2шт.
12
A35170
SUPPORT
- R. H. rear (Standard) See ref. 15, 530 Series
1шт.
13
A35171
SUPPORT
- L. H. rear (Standard), 530 Series
1шт.
14
A36972
SUPPORT - R. H. rear (w/diff. lock, G. P.), 530 Series
1шт.
15
A36970
BRACKET
SUPPORT - R. H. rear (w/diff. lock, std.), 530 Series
1шт.
16
15-612
BOLT (SPREADER)
BOLT - rear support (3/8" x 3/4" N. C. hex.), 530 Series
4шт.
17
15-628
X
BOLT - frt. support (3/8" x 1-3/4" N. C. hex.), 530 Series
6шт.
18
192-21
LOCK WASHER,3/8"
WASHER, LOCK, , 530 Series 3/8"
10шт.
19
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, , 530 Series 3/8"-16, G5
10шт.
20
175-410
SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
- platform (5/16" x 3/4" N. C., truss hd.), 530 Series
10шт.
21
1502286C2
NUT,Floating Cage, 5/16"-18
- platform (5/16" N. C. cage), 530 Series
10шт.
22
G10756
EXTENSION
- platform, R. H. (w/out diff. lock), 530 Series
1шт.
23
A36605
EXTENSION
- platform, R. H. (w/diff. lock), 530 Series
1шт.
24
G10757
EXTENSION - platform left hand, 530 Series
1шт.
25
75-410
SCREW,Rd, 1/4" - 20 x 5/8"
- fender to ent. (1/4" x 5/8" N. C., rd. hd.), 530 Series
6шт.
26
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, , 530 Series 1/4"
6шт.
27
7770
NUT,Hex, 1/4 - 20, Cl 5
1/4"-20, G5, 530 Series
6шт.
28
G13138
TOOL BOX ASSY., 530 Series
1шт.
29
A35831
BRACKET - tool box mounting, 530 Series
1шт.
30
A35832
PLATE - mtg. bracket reinforcement, 530 Series
1шт.
31
13-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
Tool box & bracket, 530 Series Hex, 1/4"-20 x 3/4", G5, Full Thd
4шт.
32
92-4
LOCK WASHER,1/4"
WASHER, LOCK, , 530 Series 1/4"
4шт.
33
25-104
NUT,1/4"-20, G5
530 Series 1/4"-20, G5
4шт.
35
A35749
FENDER - (std. & Gen. Purpose), 430 Series
2шт.
35
A37034
FENDER - right hand side (L. C. K.), 430 Series
1шт.
36
A37035
FENDER - left hand side (L. C. K.), 430 Series
1шт.
37
A29091
CLAMP - fender, 430 Series
2шт.
39
192-22
LOCK WASHER,7/16"
WASHER, LOCK, , 430 Series 7/16"
4шт.
40
129-104
NUT,7/16"-14, G5
430 Series 7/16"-14, G5
4шт.
41
G17228
PLATFORM - right hand (w/out diff. lock), 430 Series
1шт.
42
A36600
PLATFORM - left hand (w/diff. lock), 430 Series
1шт.
43
G14307
PLATFORM - left hand side, 430 Series
1шт.
44
G10752
SUPPORT - platform, front, 430 Series
2шт.
45
15-612
BOLT (SPREADER)
BOLT - platform, rear (3/8" x 3/4" N. C. hex.), 430 Series
4шт.
46
15-628
X
BOLT - front support (3/8" x 1-3/4" N. C. hex.), 430 Series
6шт.
47
192-21
LOCK WASHER,3/8"
WASHER, LOCK, , 430 Series 3/8"
10шт.
48
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, , 430 Series 3/8"-16, G5
10шт.
49
175-410
SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
- platform (5/8" x 3/4" N. C., truss hd.), 430 Series
6шт.
50
1502286C2
NUT,Floating Cage, 5/16"-18
- platform (5/16" N. C. cage), 430 Series
6шт.
51
G13138
TOOL BOX ASSY., 430 Series
1шт.
52
A35831
BRACKET - tool box mounting, 430 Series
1шт.
53
A35832
PLATE - mtg. bracket reinforcement, 430 Series
4шт.
54
13-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
Tool box & bracket, 430 Series Hex, 1/4"-20 x 3/4", G5, Full Thd
4шт.
55
92-4
LOCK WASHER,1/4"
WASHER, LOCK, , 430 Series 1/4"
4шт.
56
25-104
NUT,1/4"-20, G5
430 Series 1/4"-20, G5
4шт.
57
G17219
SUPPORT - rear, platform (Std. only), 430 Series
2шт.
Выбрано товаров: 57
