Запчасти Case IH 430 (004) - ENGINE COOLING SYSTEM, 430 SERIES, 148 B SPARK IGNITION ENGINE (02) - ENGINE

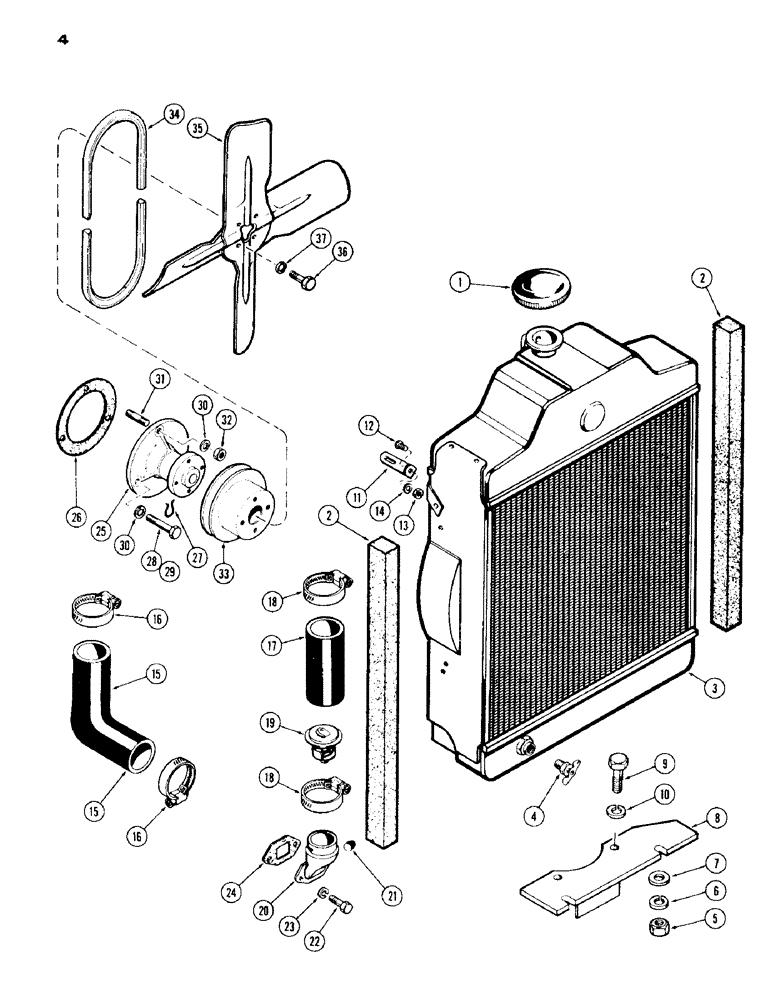

Схема запчастей Case IH 430 - (004) - ENGINE COOLING SYSTEM, 430 SERIES, 148 B SPARK IGNITION ENGINE (02) - ENGINE
26
16
14
32
11
2
28
13
37
18
15
25
20
12
9
35
31
7
22
2
10
33
1
18
30
19
4
6
27
3
24
5
21
34
29
8
36
17
30
16
15
23

Артикул

Название

Примечание

Количество

1

G45179

CAP

CAP - radiator

1шт.

2

G46337

SPARE PART BAFFLE - radiator side

2шт.

3

G45177

SPARE PART RADIATOR

1шт.

4

217-103

COCK, DRAIN

DRAIN COCK - radiator

1шт.

5

25-106

NUT,3/8"-16, G5

NUT - radiator stud, 3/8" N.C.

2шт.

6

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

7

95-6

WASHER,3/8"

WASHER - plain 3/8"

2шт.

8

A35796

SUPPORT

BRACKET - radiator mounting

1шт.

9

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

BOLT, Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

10

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

2шт.

11

G10838

SPARE PART BRACE -, Serial Range: radiator-engine

2шт.

12

173-207

X

SCREW - 1/4" x 5/8" N.C. rd. hd. (pltd.)

2шт.

13

7770

NUT,Hex, 1/4 - 20, Cl 5

NUT, 1/4"-20, G5

2шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

15

G46361

RADIATOR HOSE,1.75" ID x 5.13", SAE 20R4

Lower, Radiator to Pump

1шт.

16

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

HOSE CLAMP, #28, 1.31/2.25 Type F Worm

2шт.

17

A30074

HOSE

HOSE - upper, Serial Range: elbow-radiator

1шт.

18

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

HOSE CLAMP, #36, 1.81/2.75 Type F Worm

3шт.

19

G11055

SPARE PART THERMOSTAT (177deg. to 182 deg. F.)

1шт.

20

G11087

SPARE PART ELBOW - cylinder head to radiator, Includes: Ref. 21

1шт.

21

221-1013

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe, 3/8" sq. hd.

1шт.

22

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

23

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

24

A30003

GASKET

GASKET -, Serial Range: elbow-head

1шт.

25

G11956

WATER PUMP

WATER PUMP - complete, Includes: Ref. 26 and 27

1шт.

25

A48364

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

25

A48325

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

26

G46875

GASKET

GASKET - pump to cover (Order A38083)

1шт.

27

A30067

RING

RING - retainer

1шт.

28

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

29

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT - 3/8" x 2-3/4" N.C. hex. hd.

1шт.

30

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

3шт.

31

A29433

STUD

STUD - pump mounting (3/8 x 1")

1шт.

32

25-106

NUT,3/8"-16, G5

NUT - 3/8" N.C. hex

1шт.

33

G11339

PULLEY

PULLEY - fan & pump drive

1шт.

34

G46238

BELT,0.55" W x 17.78" L

Fan Drive

1шт.

35

G45244

FAN

FAN

1шт.

36

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

37

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

4шт.

Выбрано товаров: 39
