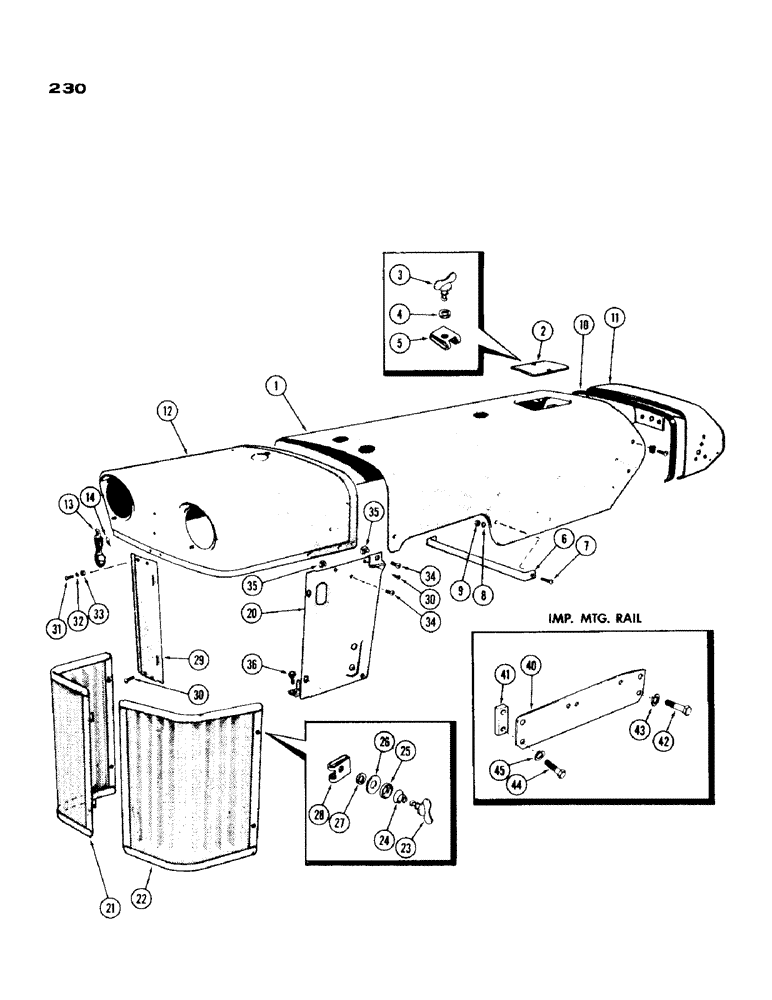

Запчасти Case IH 430 (230) - HOOD, GRILLE AND SIDE PANELS, 430 SERIES (09) - CHASSIS

1

A36400

HOOD

ASSY. - (Diesel) (used w/upright muffler), Includes: Ref. 2 - 5

1шт.

1

A36401

HOOD

ASSY. - (Diesel) (used w/hoizontal muffler), Includes: Ref. 2 - 5

1шт.

1

A36398

HOOD

ASSY. - (Gas) (used w/upright muffler), Includes: Ref. 2 - 5

1шт.

1

A36399

HOOD

ASSY. - (Gas) (used w/horizontal muffler), Includes: Ref. 2 - 5

1шт.

2

A36039

DOOR

- battery access

1шт.

3

A36040

STUD

- door lock

2шт.

4

NLS

NO LONGER SERVICED

- stud

2шт.

5

A36042

CLIP

RECEPTACLE - stud

2шт.

6

G17223

STRAP - hood brace

1шт.

7

173-202

SCREW,Rnd Hd, 1/4" - 20 x 3/4"

- strap (1/4" x 3/4" N. C. rd. hd.)

2шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

9

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

10

A36047

MOLDING

MOULDING - hood (54" long)

2шт.

11

A36678

PANEL - instrument (Hydro-Static strg.)

1шт.

11

A36694

PANEL - instrument (w/out Hydro-Static strg.)

1шт.

12

A36685

CAP - radiator grille

1шт.

13

A24526

MEDALLION - cap (Case trade mark)

1шт.

14

131-138

PUSH-ON NUT

- medallion (1/4" tinnerman)

2шт.

20

A36730

PANEL - radiator, right hand side

1шт.

20

A36731

PANEL - radiator, left hand side

1шт.

21

A36702

GRILLE - radiator screen, right hand

1шт.

22

A36703

SCREEN

GRILLE - radiator screen, left hand

1шт.

23

A32881

STUD

- grille lock

4шт.

24

A32882

VALVE SPRING

SPRING - grille lock stud

4шт.

25

A32883

WASHER

- wear, grille stud

4шт.

26

A34012

WASHER

- grille stud

4шт.

27

A36041

RETAINER

RING - snap, stud retaining

4шт.

28

A36042

CLIP

RECEPTACLE - grille stud

4шт.

29

G13936

BRACE

- grille, center

1шт.

30

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- (1/4" x 1/2" N. C. truss hd.)

6шт.

31

175-408

SCREW,Phil Truss Head, 1/4" - 20 x 3/4"

- (1/4" x 3/4" N. C. truss hd.)

2шт.

32

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

33

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

34

175-437

SCREW,Phil Truss Hd, 5/16" - 18 x 5/8"

- (5/16" x 5/8" N. C. truss hd.)

4шт.

35

131-123

NUT,Ret, 5/16"-24

- speed (1/4" N. C. tinnerman)

1шт.

36

175-437

SCREW,Phil Truss Hd, 5/16" - 18 x 5/8"

- (5/16" x 5/8" N. C. truss hd.)

4шт.

40

A36732

RAIL - imp. mtg., right hand (Diesel) (24" long)

1шт.

40

A36733

RAIL - imp. mtg., left hand (Diesel) (24" long)

1шт.

40

A36734

RAIL - imp. mtg., right hand (Gas) (22-3/4" long)

1шт.

40

A36735

RAIL - imp. mtg., left hand (Gas) (22-3/4" long)

1шт.

41

G17126

SPACER - imp. mtg. rail, front

2шт.

42

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Rail, rear Hex, 5/8"-11 x 1 1/2", G5, Full Thd

4шт.

43

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

44

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

Rail, front Hex, 3/4"-10 x 1 1/2", G5

4шт.

45

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.
