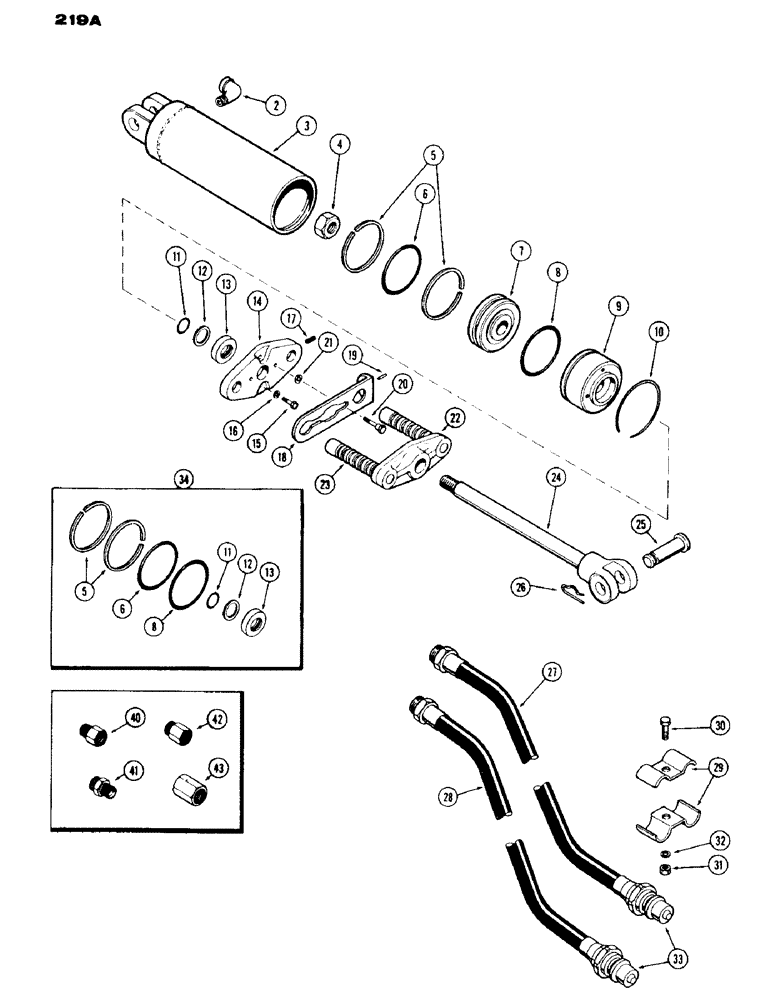

Запчасти Case IH 430 (219A) - 3-1/4" X 8" REMOTE HYDRAULIC CYLINDER, WITH MECHANICAL LIMIT STOP, HYDRAULIC HOSE ADAPTERS (08) - HYDRAULICS

A23557

CYLINDER ASSY. - complete, Includes: Ref. 2 - 24

1шт.

2

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- hose, 1/2" P.T. 90 deg.

2шт.

3

A31162

BODY & HEAD ASSY.

1шт.

4

131-369

LOCK NUT,7/8"-14, GA

NUT - lock (7/8" N.F. hex.)

1шт.

5

A23562

OIL SEAL

RING - back-up, piston

2шт.

6

A30893

O-RING,0.21" Thk x 2.85" ID, -336, Cl 5, 75 Duro

"O" RING - piston (3-1/4" O.D.)

1шт.

7

A23560

PISTON - cylinder

1шт.

8

A23555

O-RING,2.984" ID x 3.262" OD x 0.139"

"O" RING - head

1шт.

9

A23561

HEAD - cylinder

1шт.

10

A31158

RING, SNAP

RING - snap, head

1шт.

11

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - inner, head (1-3/8" O.D.)

1шт.

12

A23553

RING

- back-up

1шт.

13

A23537

OIL SEAL,28.57mm ID x 46.582mm OD x 6.35mm Thk

- piston rod

1шт.

14

A27345

GUIDE - limit stop pin

1шт.

15

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16" x 1-1/4" N.C. hex. hd.

2шт.

16

92-5

LOCK WASHER,5/16"

2шт.

17

A27421

SPRING

- limit stop latch

1шт.

18

A31156

LATCH

ASSY. - limit stop, Includes: Ref. 19

1шт.

19

138-128

LOCK PIN,1/4" x 5/8", Slotted

PIN, 1/4" x 5/8", Slotted

1шт.

20

A31157

SCREW,5/16" - 18 x 1 3/4"

- latch

2шт.

21

193-82

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

22

A31154

STOP ASSY. - piston limit, Includes: Ref. 23

1шт.

23

A31155

PIN - stop

2шт.

24

A30972

ROD - piston

1шт.

25

A27347

PIN

- yoke

2шт.

26

A29054

HAIR PIN COTTER

- cotter, hair pin

2шт.

27

A20816

HOSE

- socket to cylinder (106")

1шт.

28

A20817

HOSE

- socket to cylinder (118")

1шт.

29

A27440

CLAMP

- hose

2шт.

30

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

1шт.

31

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

32

92-5

LOCK WASHER,5/16"

1шт.

33

A28541

COUPLING, BREAK AWAY

PLUG - break-away coupling (Repairs Figure 218)

2шт.

34

A40758

SEAL,0.21" Thk x 2.85" ID, -336, Cl 5, 75 Duro

KIT - cylinder repair (includes ref. 5, 6, 8, 11, 12 & 13)

1шт.

40

A11161

ADAPTER,7/8" - 18 NPT x 1/2" NPT

- (7/8"-18 female to 1/2" male P.T.) hydraulic hose

1шт.

41

A27359

ADAPTER

- (7/8"-18 male x 1/2" male P.T.), hydraulic hose

1шт.

42

A27744

ADAPTER,7/8" - 18 x 1/2" NPT

(7/8"-18 male to 1/2" female P.T.), hydraulic hose

1шт.

43

A34928

ADAPTER,1/2" NPT Fem x 7/8"-18 Fem

(7/8"-18 FEMALE TO 1/2" FEMALE P.T.), hydraulic hose

1шт.
