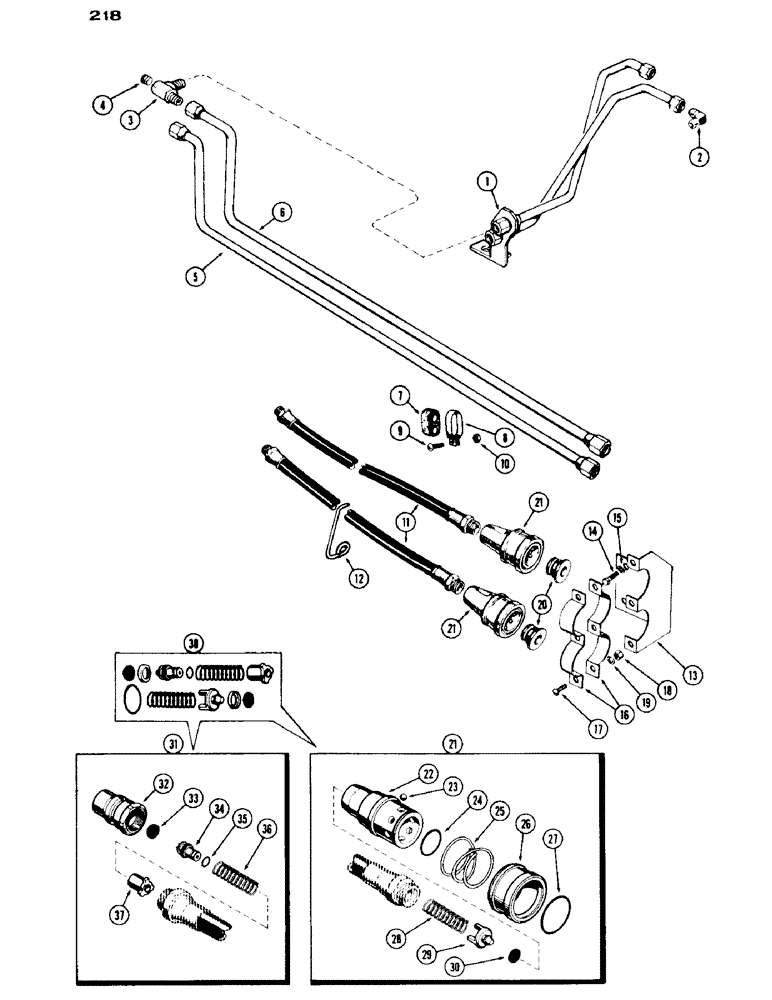

Запчасти Case IH 430 (218) - REMOTE HYDRAULIC TUBES AND COUPLINGS, CASE-O-MATIC DRIVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
A35612
MANIFOLD - cross-over
1шт.
2
218-484
ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF
- tube to valve
2шт.
3
A35607
TEE - cross-over, Serial Range: manifold-tee
2шт.
5
A35720
TUBE - lower, cross over, Serial Range: tube-hose
1шт.
6
A35719
SPLIT PIN/SAFETY PIN
TUBE - upper, cross over, Serial Range: tube-hose
1шт.
7
G46835
GROMMET
- rubber, tube clamp
1шт.
8
G46194
CLAMP
- tube
1шт.
9
173-203
SCREW,Sl Rnd Hd, #6 - 32 x 1/2"
- clamp (#10-32 x 3/4" rd. hd.)
1шт.
10
193-1000
NUT,Keps, w/LW,#10-32
- #10-32 hex. (Keps)
1шт.
11
A35453
HOSE - tube to coupling (22")
2шт.
12
G15434
SUPPORT - hose to trans. case
1шт.
13
A35439
BRACKET - coupling socket
1шт.
14
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
2шт.
15
92-6
LOCK WASHER,3/8"
1шт.
16
A29224
CLAMP - coupling socket
2шт.
17
75-416
SCREW,Rd, 1/4" - 20 x 1"
- 1/4 x 3/4" rd. hd. mach
3шт.
18
25-104
NUT,1/4"-20, G5
3шт.
19
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
3шт.
20
A22768
PLUG
- dust, coupling socket
2шт.
21
A28542
COUPLING, QUICK, FEM
SOCKET ASSY. - break-away coupling, Includes: Ref. 22 - 30
2шт.
22
A27349
BODY
1шт.
23
211-7
BALL,1/4" Dia
- locking 1/4" Dia
8шт.
24
A34848
O-RING
"O" RING - body
1шт.
25
A27354
SPRING
- ball sleeve
1шт.
26
A27353
SLEEVE
SLEEVE - ball retainer
1шт.
27
A27355
O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro
"O" RING - sleeve
1шт.
28
A11324
SPRING
- piston
1шт.
29
A26215
PISTON
1шт.
30
A33964
SEAL
- piston
1шт.
31
A28541
COUPLING, BREAK AWAY
PLUG ASSY. - break-away coupling, Includes: Ref. 32 - 37
2шт.
32
A27356
PIPE FITTING
BODY
1шт.
33
A33964
SEAL
- piston
1шт.
34
A27508
PISTON
1шт.
35
A27358
O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro
"O" RING - piston
1шт.
36
A27351
SPRING
- piston
1шт.
37
A9634
SLEEVE
- piston
1шт.
38
A40459
KIT
- repair, break-away coupling
1шт.
Выбрано товаров: 38
