Запчасти Case IH 430 (215C) - REMOTE HYDRAULIC HOSES AND COUPLINGS, STANDARD CLUTCH DRIVE (08) - HYDRAULICS

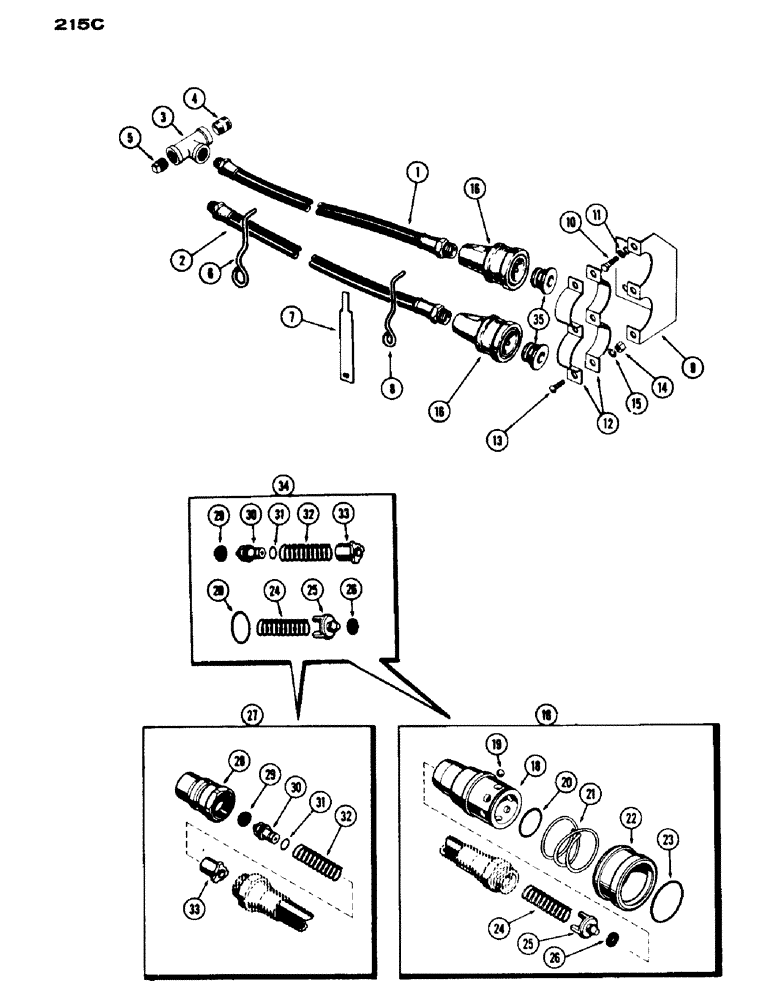

Схема запчастей Case IH 430 - (215C) - REMOTE HYDRAULIC HOSES AND COUPLINGS, STANDARD CLUTCH DRIVE (08) - HYDRAULICS
30
2
24
33
26
25
11
4
13
32
30
6
35
16
20
33
32
29
34
10
12
24
26
7
31
16
5
28
15
1
16
23
29
21
19
8
9
27
14
18
20
31
25
22
3

Артикул

Название

Примечание

Количество

1

A35438

HOSE

- upper valve to cplg. (62")

1шт.

2

A37507

HOSE - lower valve to cplg. (63-1/4")

1шт.

3

221-1423

TEE,Pipe, 3/8" NPT

- hose to valve (3/8" P.T.)

2шт.

4

221-1160

FITTING

NIPPLE - tee to valve (3/8 P.T. x 1-3/4" Lg.)

2шт.

5

221-1843

PLUG

- tee (3/8" P.T. socket hd.)

2шт.

6

A36402

SUPPORT

- hoses to brake cover

1шт.

7

A35209

CLAMP

- hose

2шт.

8

G10996

SUPPORT - hoses to trans. case

1шт.

9

A35439

BRACKET - coupling socket

1шт.

10

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

A29224

CLAMP - coupling socket

2шт.

13

75-416

SCREW,Rd, 1/4" - 20 x 1"

- 1/4" x 3/4" rd. hd. mach.

3шт.

14

25-104

NUT,1/4"-20, G5

3шт.

15

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

16

A28542

COUPLING, QUICK, FEM

SOCKET ASSY. - break-away cplg., Includes: Ref. 18 - 26

2шт.

18

A27349

BODY

1шт.

19

211-7

BALL,1/4" Dia

- locking 1/4" Dia

8шт.

20

A34848

O-RING

"O" RING - body

1шт.

21

A27354

SPRING

- ball sleeve

1шт.

22

A27353

SLEEVE

SLEEVE - ball retainer

1шт.

23

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - sleeve

1шт.

24

A11324

SPRING

- piston

1шт.

25

A26215

PISTON

1шт.

26

A33964

SEAL

- piston

1шт.

27

A28541

COUPLING, BREAK AWAY

PLUG ASSY. - break-away cplg., Includes: Ref. 28 - 33

2шт.

28

A27356

PIPE FITTING

BODY

1шт.

29

A33964

SEAL

- piston

1шт.

30

A27508

PISTON

1шт.

31

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING

1шт.

32

A27351

SPRING

- piston

1шт.

33

A9631ASY

SPARE PART

- piston

1шт.

34

A40459

KIT

- repair, break-away cplg.

1шт.

35

A22768

PLUG

- dust, cplg. socket

2шт.

Выбрано товаров: 34
