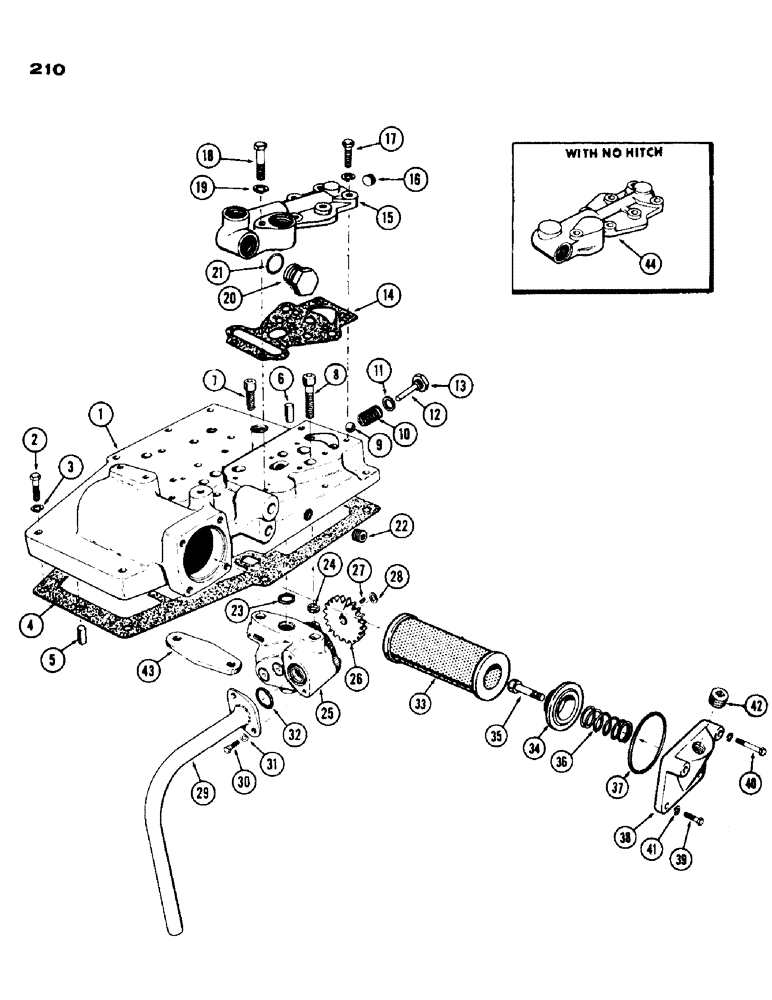

Запчасти Case IH 430 (210) - HYDRAULIC PUMP AND ADAPTER, CASE-O-MATIC DRIVE (08) - HYDRAULICS

1

A37869

HOUSING

- adapter, hydraulic

1шт.

2

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N. C. hex. hd.

1шт.

2

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

5шт.

3

92-6

LOCK WASHER,3/8"

7шт.

4

G46818

GASKET

- adapter hsg.

1шт.

5

G10711

PIN

- dowel, adapter housing rear

1шт.

6

A29426

AXLE PIN

PIN - dowel adapter housing front

1шт.

7

165-104

SCREW - pump 7/16 x 3/4" sckt. hd. self-locking

1шт.

8

165-106

SCREW - pump 7/16" x 1" sckt. hd. self-locking

1шт.

9

211-13

BALL,1/2" Dia

- drop check valve 1/2" Dia

1шт.

10

A35442

VALVE SPRING

SPRING - drop check valve

1шт.

11

A27927

OIL PAN GASKET SET

- plug, drop check valve

1шт.

12

138-104

LOCK PIN,3/16" x 2", Slotted

PIN, , Drop check valve 3/16" x 2", Slotted

1шт.

13

A14280

PLUG

- drop check valve

1шт.

14

A35617

GASKET

- cover

1шт.

15

A35443

RIVET

COVER - housing or value (w/Draft-O-Matic)

1шт.

16

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, 1/8" hex. sckt. hd.

1шт.

17

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16" x 1-1/4" N. C. hex. hd.

7шт.

18

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- 5/16" x 1-3/4" N. C. hex. hd.

1шт.

19

92-5

LOCK WASHER,5/16"

8шт.

20

86512512

PLUG,7/8" - 14 ORB

5/8" O. D. (Incl. Ref. 21) Hex Hd, 7/8"-14 ORB

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - plug to cover

1шт.

22

221-32

PLUG,Sq Soc, 3/8"-18 NPTF

- pipe, 3/8" hex. sckt. hd. (short)

1шт.

23

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - pump to adapter

1шт.

24

G16785

RING

- dowel, Serial Range: pump-adapter

2шт.

25

G45460

PUMP

- hydraulic

1шт.

26

G16797

GEAR

- pump drive

1шт.

27

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

1шт.

28

G46176

SNAP RING,#56, Ext

Ring, Snap, , gear to pump #56, Ext

1шт.

29

A35210

TUBE - suction pump

1шт.

30

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

31

92-5

LOCK WASHER,5/16"

2шт.

32

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

"O" RING - suction tube to pump

1шт.

33

G13113

ELEMENT,2.25" OD x 6" L

ELEMENT - filter, hyd. oil

1шт.

34

A36523

CAP

- retainer, filter element

1шт.

35

13-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

1шт.

36

A29993

VALVE SPRING

SPRING - retainer, filter element

1шт.

37

A29884

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

"O" RING - filter cap

1шт.

38

G1353

CAP - cover, oil filter

1шт.

39

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

40

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

41

92-6

LOCK WASHER,3/8"

4шт.

42

221-845

PLUG,Hex Soc, 3/4"-14

- pipe, 3/4" hex. sckt. hd.

1шт.

43

G16830

COVER - pump to opening (w/o hyd. pump)

1шт.

44

A35440

COVER - valve to housing (w/o Draft-O-Matic)

1шт.
