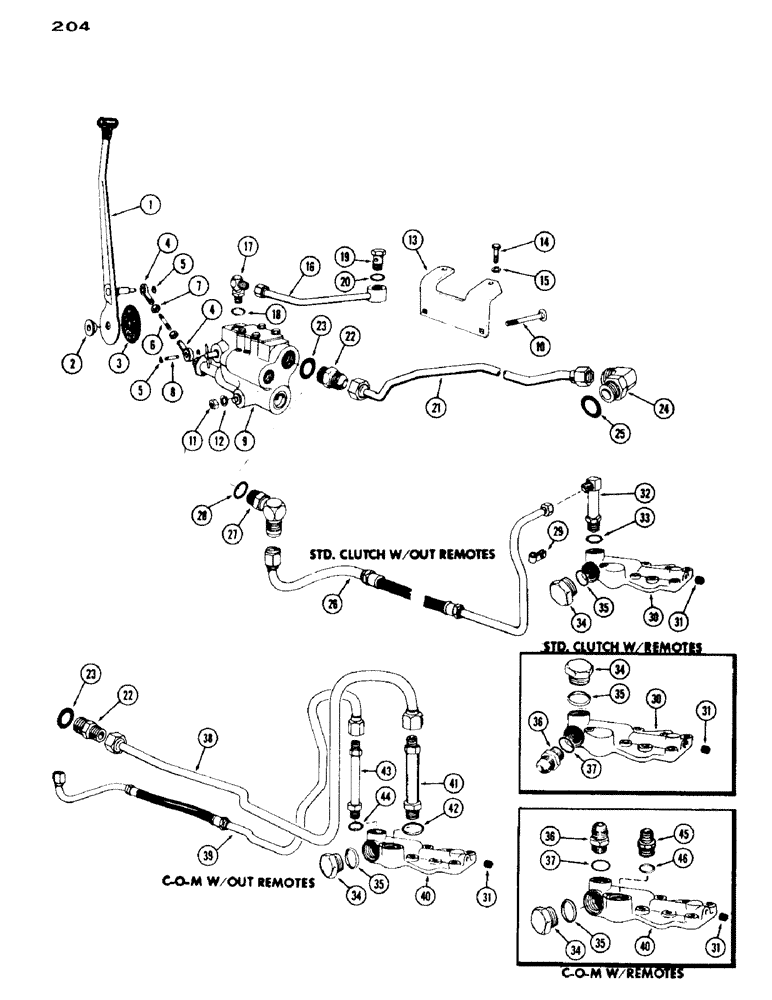

Запчасти Case IH 430 (204) - VALVE AND CONTROLS, GENERAL PURPOSE, DRAFT-O-MATIC (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
A35701
LEVER - hand, quadrant control, Includes: Ref. 2
1шт.
2
G15947
BUSHING
1шт.
3
G10786
DISC
- friction
1шт.
4
A35134
BEARING
EYE - adjusting, control rod
2шт.
5
A27810
CIRCLIP,#X31, .243" Dia, E-Type
Ring, Retaining, , adjusting eye #X31, .243" Dia, E-Type
3шт.
6
A35135
ROD
- hand, Serial Range: lever-valve
1шт.
7
25-155
JAM NUT,Jam, 5/16"-24, G5
- jam, 5/16" N. C. hex.
2шт.
8
A35137
PIN
- rod to valve spool
1шт.
9
A35685
VALVE
- control (For repairs see Figure 206)
1шт.
10
11-548
BOLT - 5/16" x 3" rd. hd. sq. neck
2шт.
11
9635082
NUT,5/16" - 18, Gr 5
- 5/16" N. C. hex.
2шт.
12
92-5
LOCK WASHER,5/16"
2шт.
13
A35136
BRACKET - valve mounting
1шт.
14
14-632
BOLT,Hex, 3/8" - 24 x 2", Gr 5
- 3/8" x 2" N. C. hex. hd.
2шт.
15
92-6
LOCK WASHER,3/8"
2шт.
16
A35515
TUBE
- valve to rockshaft housing
1шт.
17
218-5106
90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
- valve, 1/2" O. D. x 3/4" - 16, Includes: Ref. 18
1шт.
18
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk, 1/2" tube
1шт.
19
A35146
SCREW,5/8" - 11 x 1 9/16"
-, Serial Range: tube-housing
1шт.
20
F62114
O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro
"O" RING - tube screw
2шт.
21
A35140
TUBE
- return (w/std. clutch)
1шт.
22
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
CONNECTOR - 3/4" x 1-1/16" - 12, Incl. Ref. 23
1шт.
23
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
"O" RING - 3/4" tube
1шт.
24
218-5108
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
- 5/8" O. D., Incl. Ref. 25
1шт.
25
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
"O" RING - 5/8" tube
1шт.
26
A37765
TUBE - pressure (w/std. clutch)
1шт.
27
A37067
ELBOW - valve, 5/8" O.D., Includes: Ref. 28
1шт.
28
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
"O" RING - 5/8" tube
1шт.
29
A35506
CLAMP - pressure tube
1шт.
30
A35425
COVER ASSY
COVER - (w/std. clutch)
1шт.
31
221-1849
PLUG
- pipe, 1/8" socket hd.
1шт.
32
D23143
FITTING
ELBOW - tube to cover (std. clutch w/o remote)
1шт.
33
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
"O" RING - 5/8" tube
1шт.
34
86512512
PLUG,7/8" - 14 ORB
- 7/8" -14 thrd., Incl. Ref. 35
1шт.
35
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
"O" RING - 5/8" tube
1шт.
36
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
CONNECTOR - 5/8" O.D. x 7/8"-14, Includes: Ref. 37
1шт.
37
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
"O" RING - 5/8" tube
1шт.
38
A35447
TUBE - return (w/Case-O-Matic)
1шт.
39
A35445
TUBE - pressure (w/Case-O-Matic)
1шт.
40
A35443
RIVET
COVER - (w/Case-O-Matic)
1шт.
41
A35446
CONNECTOR - return tube to cover (C-O-M w/remote), Includes: Ref. 42
1шт.
42
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
"O" RING - 3/4" tube
1шт.
43
A35444
CONNECTOR - pressure tube to cover (C-O-M w/o remote), Includes: Ref. 44
1шт.
44
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
"O" RING - 5/8" tube
1шт.
45
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
CONNECTOR - return to cover (w/remote), Incl. Ref. 46
1шт.
46
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
"O" RING - 3/4" tube
1шт.
Выбрано товаров: 46
