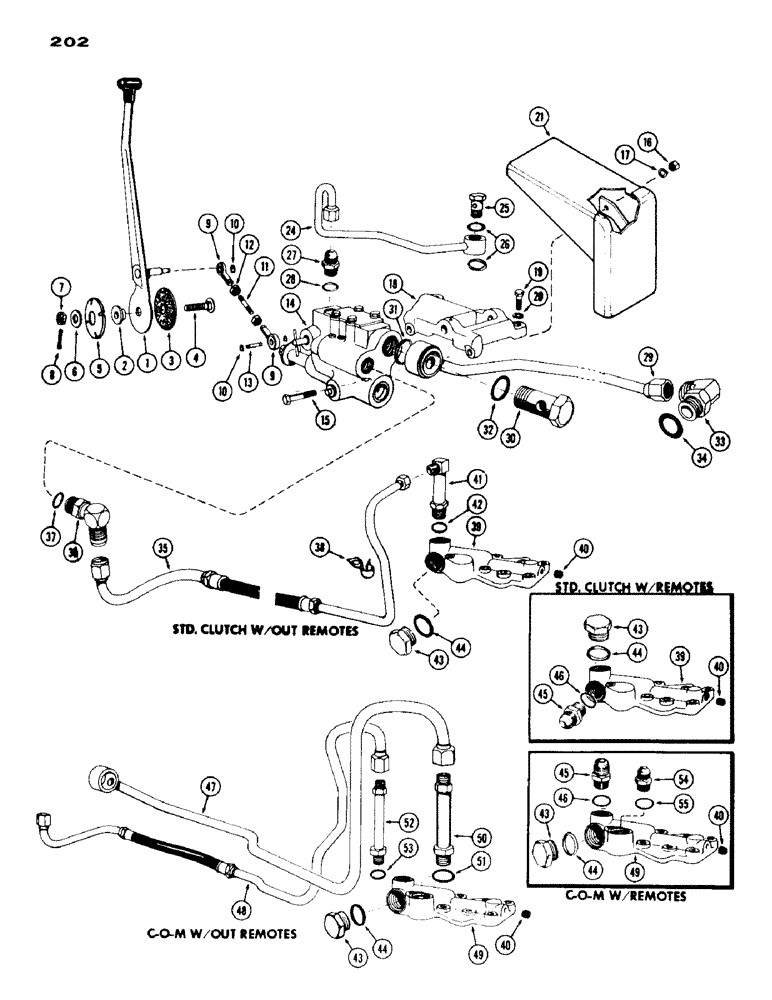

Запчасти Case IH 430 (202) - VALVE AND CONTROLS, STANDARD, DRAFT-O-MATIC (08) - HYDRAULICS

1

A35701

LEVER - hand, Includes: Ref. 2

1шт.

2

G15947

BUSHING

1шт.

3

G10786

DISC

- friction

1шт.

4

G49100

BOLT - hand lever

1шт.

5

G49412

WASHER

- spring

1шт.

6

195-433

WASHER - 1/2" plain

1шт.

7

425-128

SLOTTED NUT,1/2"-13, G5

NUT - slotted, 1/2" N. C. (7/16" thick)

1шт.

8

132-27

COTTER PIN,3/32" x 7/8"

Pin, Split (Cotter), 3/32" x 7/8"

1шт.

9

A35134

BEARING

EYE - adjusting, lever to valve rod

2шт.

10

A27810

CIRCLIP,#X31, .243" Dia, E-Type

RING - retaining, , adjusting eye pin #X31, .243" Dia, E-Type

3шт.

11

A35135

ROD

- hand, Serial Range: lever-valve

1шт.

12

25-155

JAM NUT,Jam, 5/16"-24, G5

- jam, 5/16" N. F. hex.

2шт.

13

A35137

PIN

- eye to valve spool

1шт.

14

A35685

VALVE

- control (For repairs see Figure 206)

1шт.

15

13-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- 5/16" x 3-1/4" N. C. hex. hd.

2шт.

16

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N. C. hex.

2шт.

17

92-5

LOCK WASHER,5/16"

2шт.

18

A35478

BRACKET

- valve mounting

1шт.

19

14-632

BOLT,Hex, 3/8" - 24 x 2", Gr 5

- 3/8" x 2" N. F. hex. hd.

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

A36515

GUARD

SHIELD - valve

1шт.

24

A35507

TUBE - valve to rockshaft housing

1шт.

25

A35146

SCREW,5/8" - 11 x 1 9/16"

-, Serial Range: tube-housing

1шт.

26

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - tube to housing

2шт.

27

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - 1/2" x 3/4" - 16 thrd., Incl. Ref 28

1шт.

29

A35490

TUBE

- return (w/std. clutch)

1шт.

30

A35553

SCREW

- return, Serial Range: tube-valve

1шт.

31

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

"O" RING - inner (1-1/4 O. D.)

1шт.

32

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O" RING - outer (1-1/16" O. D.)

1шт.

33

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- return tube (w/std. clutch), Incl. Ref. 34

1шт.

34

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 3/4" tube

1шт.

35

A35489

TUBE - pressure (w/std. clutch)

1шт.

36

A37067

ELBOW - pressure tube to valve, Includes: Ref. 37

1шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 5/8" tube

1шт.

38

A35142

CLAMP - pressure tube

1шт.

39

A35425

COVER ASSY

COVER - adapter (w/std. clutch)

1шт.

40

221-1849

PLUG

- cover (1/8" socket hd.)

1шт.

41

D23143

FITTING

ELBOW - pressure tube to cover (w/std. clutch and no remote controls), Includes: Ref. 42

1шт.

42

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 5/8" tube

1шт.

43

86512512

PLUG,7/8" - 14 ORB

- 7/8"-14 thrd., Incl. Ref. 44

1шт.

44

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 5/8" tube

1шт.

45

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - pressure tube cover (w/remote), Includes: Ref. 46

1шт.

46

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 5/8" tube

1шт.

47

A35551

TUBE - return (w/Case-O-Matic)

1шт.

48

A35520

TUBE - pressure (w/Case-O-Matic)

1шт.

49

A35443

RIVET

COVER - adapter (w/Case-O-Matic)

1шт.

50

A35446

CONNECTOR - return tube cover (Case-O-Matic tractor with no remote controls), Includes: Ref. 51

1шт.

51

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 3/4" tube

1шт.

52

A35444

CONNECTOR - pressure tube to cover (Case-O-Matic with no remote controls), Includes: Ref. 53

1шт.

53

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 5/8" tube

1шт.

54

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - return to cover (w/remote), Incl. Ref. 55

1шт.

55

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 3/4" tube

1шт.

28

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" tube

1шт.
