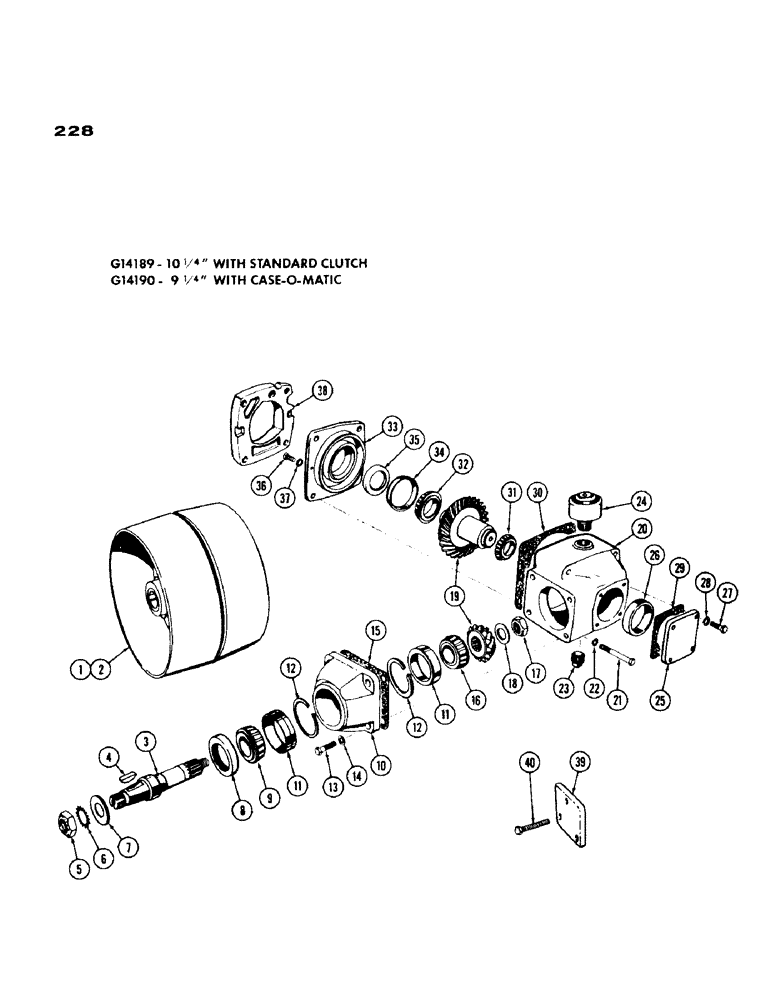

Запчасти Case IH 430 (228) - REAR MOUNTED BELT PULLEY (06) - POWER TRAIN

1

G14189

PULLEY - belt (10-1/4" dia. w/std. clutch)

1шт.

2

G14190

PULLEY - belt (9-1/4" dia. w/Case-O-Matic)

1шт.

3

A36055

SHAFT

- pulley

1шт.

4

126-144

WOODRUFF KEY,#129, 3/8" x 2 1/8", HT

KEY - pulley to shaft

1шт.

5

25-1116

NUT,1"-14, G5

- 1" N. F. hex.

1шт.

6

193-17

LOCK WASHER,Ext Tooth, 1"

WASHER, LOCK, Ext Tooth, 1"

1шт.

7

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- 1" plain

1шт.

8

G13817

SEAL ASSY.

OIL SEAL - pulley shaft

1шт.

9

G15213

ROLLER BEARING

CONE - outer bearing, pulley shaft

1шт.

10

G14188

HOUSING - output, Includes: Ref. 11 and 12

1шт.

11

A26680

ROLLER BEARING,2.7510" OD x 0.75"

CUP - bearing, pulley shaft

2шт.

12

A29330

RING, SNAP

SNAP RING - bearing cup

2шт.

13

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

14

92-8

LOCK WASHER,1/2"

4шт.

15

G46832

GASKET - output housing (green .003")

1шт.

16

A36054

CONE

- inner bearing, pulley shaft

1шт.

17

G16614

NUT

- lock, drive pinion (3/4"-24)

1шт.

18

195-45

WASHER,3/4"

1шт.

19

G45126

GEAR SET - pinion, matched

1шт.

20

G1297

HOUSING - pinion

1шт.

21

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

4шт.

22

92-8

LOCK WASHER,1/2"

4шт.

23

221-834

X

PLUG - pipe, 1/2" std. sq. hd.

1шт.

24

A9238

BREATHER

- oil

1шт.

25

G14186

HOUSING - rear bearing, Includes: Ref. 26

1шт.

26

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - rear bearing pinion

1шт.

27

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

28

92-6

LOCK WASHER,3/8"

4шт.

29

G46830

GASKET - rear housing (blue .005")

1шт.

29

G46834

GASKET - rear housing (brown .010")

1шт.

30

G46831

GASKET - front housing (blue .005")

1шт.

30

G46833

GASKET

- front housing (brown .010")

1шт.

31

G15214

BEARING CUP

CONE - rear bearing pinion

1шт.

32

G15215

ROLLER BEARING

CONE - front bearing, pinion

1шт.

33

G14187

HOUSING - front bearing

1шт.

34

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CUP - front bearing, pinion, Includes: Ref. 34

1шт.

35

G13817

SEAL ASSY.

OIL SEAL - front bearing

1шт.

36

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

37

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

38

G4538

PLATE - adapter (Std. P.T.O.)

1шт.

39

T134

PULLER - pulley

1шт.

40

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8" x 2-1/2" N. C. hex. hd.

3шт.
