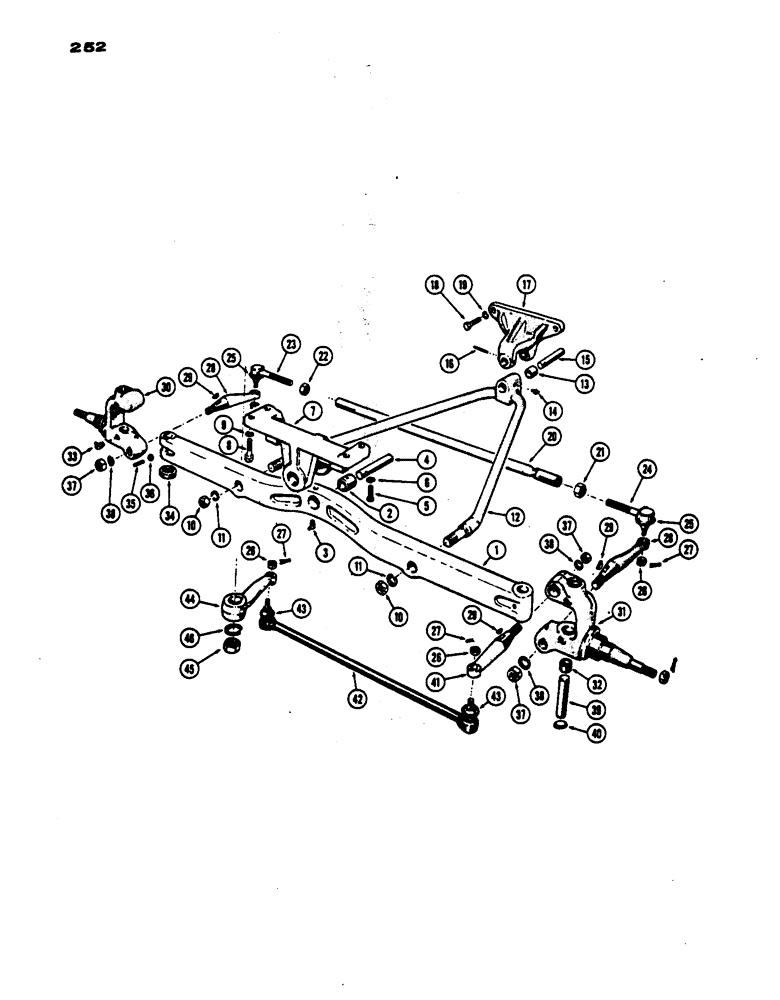

Запчасти Case IH 430 (252) - 430 STANDARD UTILITY FRONT AXLE, PRIOR TO S/N 8262800 (06) - POWER TRAIN

1

G14204

AXLE ASSY. (incl. ref. 2)

1шт.

2

VT5020

BUSHING - pivot

1шт.

3

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

4

G15425

PIN - axle pivot

1шт.

5

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8" x 2-3/4" N.C. hex hd.

1шт.

6

92-6

LOCK WASHER,3/8"

1шт.

7

G1122

SUPPORT - axle pivot

1шт.

8

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

4шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

10

25-1016

NUT,1"-8, G5

Radius rod 1"-8, G5

2шт.

11

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

12

G14206

RADIUS ROD (incl. ref. 13)

1шт.

13

V20457

X

BUSHING - pivot

2шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING

1шт.

15

V14619

PIN - pivot, radius rod

1шт.

145

V14619

PIN - pivot, radius rod

1шт.

16

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

1шт.

17

G1715

BRACKET - pivot, radius rod

1шт.

18

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

19

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

20

G30495

TUBE

- tie rod (includes nuts) (incl. ref. 21 & 22)

1шт.

21

G49085

JAM NUT

- L.H. tie rod end

1шт.

22

G49084

JAM NUT

- R.H. tie rod end

1шт.

23

G45368

END ASSY.

END - R.H., tie rod (incl. ref. 25)

1шт.

24

G45369

END ASSY.

END - L.H., tie rod (incl. ref. 25)

1шт.

25

G46043

COVER

- dust

1шт.

26

25-139

SLOTTED NUT,9/16"-18, G5

NUT - 9/16" N.F. slotted

4шт.

27

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

4шт.

28

G17221

ARM - steering, tie, Serial Range: rod-spindle

2шт.

29

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - arm to spindle (Hi-Pro 1/4" x 1-1/16")

3шт.

30

G13218

SPINDLE - R.H. wheel (includes bushings) (incl. ref. 32)

1шт.

31

G13219

SPINDLE - L.H. wheel (includes bushings) (incl. ref. 32)

1шт.

32

5332A

X

BUSHING - king pin

2шт.

33

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - 1/8" 45 deg.

2шт.

34

VT3984

X

BEARING - thrust, spindle (Timken #T-101)

2шт.

35

176-175

SCREW - set, 3/8" x 7/8" N.C. headless slotted

2шт.

36

25-146

JAM NUT,Jam, 3/8"-16, G5

- jam, 3/8" N.C. hex

2шт.

37

25-1512

JAM NUT,Jam, 3/4"-10, G5

- jam, N.F. hex

3шт.

38

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

39

A11414

AXLE PIN,25.02mm OD x 152.4mm L

PIN - king, wheel spindle

2шт.

40

VT5156

PLUG - spindle

4шт.

41

G17210

ARM - steering, drag, Serial Range: link-spindle

1шт.

42

G45370

DRAG LINK - center arm to L.H. spindle (incl. ref. 43)

1шт.

43

G46043

COVER

SEAL - dust

2шт.

44

G10884

ARM - steering, center -024, 70 Duro, 1.114" ID x .070" Thk

1шт.

45

25-1116

NUT,1"-14, G5

- 1" N.F. hex

1шт.

46

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.
