Запчасти Case IH 430 (250) - STEERING GEAR & SUPPORT, UTILITY, PRIOR S/N 8262800, S/N 8199596 THROUGH 8201862 & AFTER S/N 8209856 (05) - STEERING

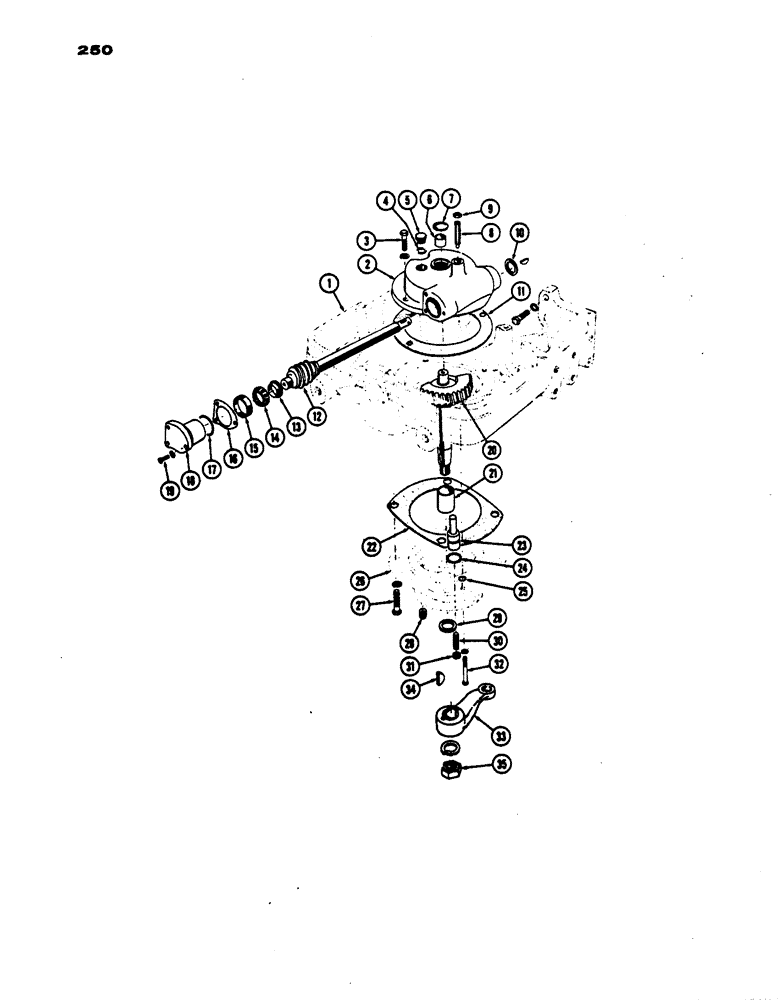

Схема запчастей Case IH 430 - (250) - STEERING GEAR & SUPPORT, UTILITY, PRIOR S/N 8262800, S/N 8199596 THROUGH 8201862 & AFTER S/N 8209856 (05) - STEERING
1
29
8
9
3
19
22
30
16
33
28
23
10
32
12
7
11
17
35
25
24
31
14
21
4
26
15
20
6
34
5
13
2
18
27

Артикул

Название

Примечание

Количество

1

A35164

SUPPORT - front axle & radiator

1шт.

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

4шт.

2

A35240

HOUSING - steering gear (includes ref. 6 & 13)

1шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

92-8

LOCK WASHER,1/2"

3шт.

4

O9844AB

X

GASKET - filler plug

1шт.

5

A14280

PLUG

- filler, gear housing

1шт.

6

G10725

BUSHING

- upper, steering shaft

1шт.

7

41-24

PLUG

- expansion, gear housing

1шт.

8

A35301

PIN - gear positioning

1шт.

9

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" N.F.

1шт.

10

O10983AB

X

OIL SEAL - worm gear shaft

1шт.

11

G10637

GASKET

- gear, Serial Range: housing-support

1шт.

12

A35244

WORM & SHAFT - steering gear

1шт.

13

O7164AB

X

CONE - bearing (Timken #12BC)

1шт.

14

O7163AB

X

BEARING - roller (Timken #1BC)

1шт.

15

O7165AB

X

CUP - bearing (Timken #13C)

1шт.

16

A35246

SHIM - housing cover (.003")

1шт.

16

A35247

SHIM - housing cover (.005")

1шт.

16

A35248

SHIM - housing cover (.010")

1шт.

17

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING - housing cover

1шт.

18

A35245

COVER - housing

1шт.

19

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

92-6

LOCK WASHER,3/8"

3шт.

20

A35249

SHAFT & GEAR - steering

1шт.

21

VT2220

X

BUSHING - lower, steering shaft (incl. ref. 22)

1шт.

22

A35255

GASKET

- steering support

1шт.

23

A3525.

PLUG - adjusting, sector gear

1шт.

24

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - adjusting plug

1шт.

25

O9787AB

X

"O" RING - 3/8" x 3" bolt

1шт.

26

A35253

SUPPORT - steering shaft (includes ref. 21)

1шт.

27

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

4шт.

12034871

WASHER

WASHER, LOCK, (5/8") M16

4шт.

28

221-1013

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe, 3/8" sq. hd.

1шт.

29

O4240AB

X

OIL SEAL - steering shaft

1шт.

30

176-397

SCREW - adj. plug, 1/2" x 3/4" slotted set

1шт.

31

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" N.F. hex

1шт.

32

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8" x 3" N.C. hex hd.

1шт.

92-6

LOCK WASHER,3/8"

1шт.

33

G10884

ARM - steering, center -024, 70 Duro, 1.114" ID x .070" Thk

1шт.

34

126-40

WOODRUFF KEY,#G, 3/8" x 1 1/2"

1шт.

35

25-1516

NUT,Jam, 1"-14, G5

- jam, 1" N.F. hex

1шт.

193-17

LOCK WASHER,Ext Tooth, 1"

WASHER, LOCK, Ext Tooth, 1"

1шт.

Выбрано товаров: 45
