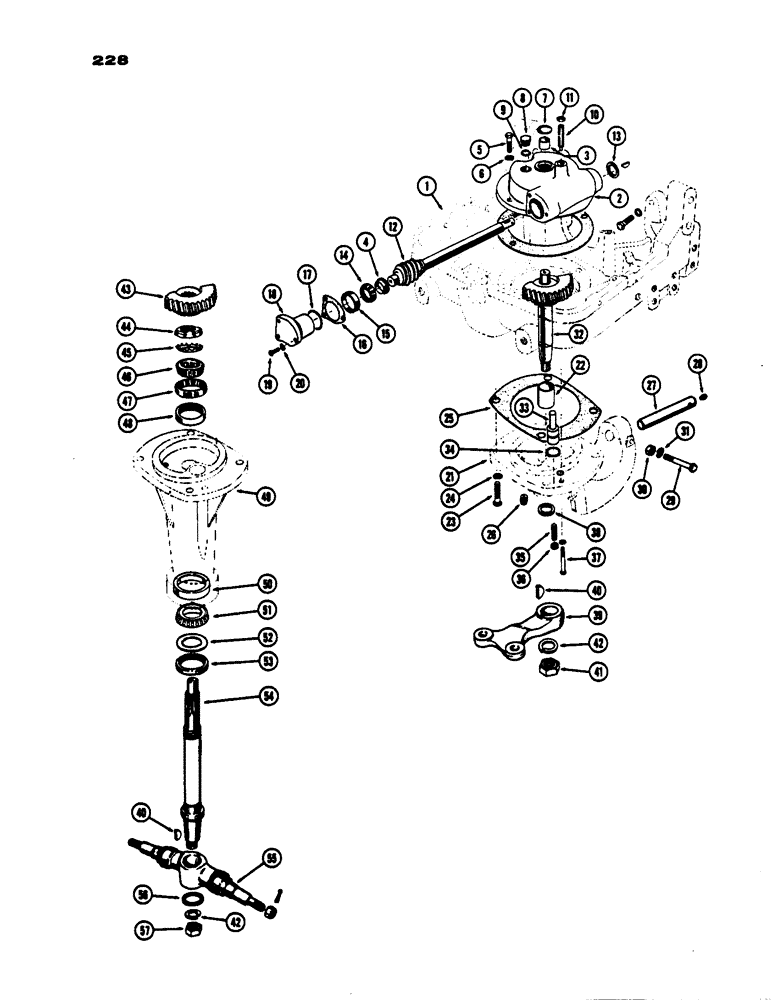

Запчасти Case IH 430 (228) - STEERING GEAR AND SUPPORT, GENERAL PURPOSE S/N 8199596 AND AFTER, PRIOR S/N 8262800 (05) - STEERING

1

A35165

SUPPORT - front axle and radiator

1шт.

2

A35240

HOUSING - steering gear (incl. ref. 3)

1шт.

3

G10725

BUSHING

- upper, steering shaft

1шт.

4

O7164AB

X

CONE - bearing, worm shaft (Timken #12BC)

1шт.

5

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

6

92-8

LOCK WASHER,1/2"

3шт.

7

14-24

PLUG - expansion (1-1/2" dia.)

1шт.

8

A14280

PLUG

- filler

1шт.

9

O9844AB

X

GASKET - filler plug

1шт.

10

A35301

SCREW - gear adjusting

1шт.

11

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" N.F. hex

1шт.

12

A35312

WORM & SHAFT - steering gear

1шт.

13

O10983AB

X

OIL SEAL - worm gear shaft

1шт.

14

O7163AB

X

CONE - bearing, worm shaft (Timken #11BC)

2шт.

15

O7165AB

X

CONE - bearing, worm shaft (Timken #13C)

2шт.

16

A35246

SHIM - housing cover (.003")

1шт.

16

A35247

SHIM - housing cover (.005")

1шт.

16

A35248

SHIM - housing cover (.010")

1шт.

17

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING - housing cover (2" O.D.)

1шт.

18

A35245

COVER - housing, steering gear

1шт.

19

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

20

92-6

LOCK WASHER,3/8"

3шт.

21

A35330

SUPPORT

- steering shaft (w/dry clutch) (incl. ref. 22)

1шт.

21

A35330

SUPPORT

- steering shaft (w/Case-O-Matic) (incl. ref. 22)

1шт.

22

VT2220

X

BUSHING - steering shaft

1шт.

23

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

4шт.

24

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

25

A35255

GASKET

- pivot support or pedestal

1шт.

26

221-1013

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe, 3/8" std. sq. hd.

1шт.

27

G10628

PIN - pivot, adjustable axle

1шт.

28

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" 45 deg.

1шт.

29

16-664

BOLT - 3/8 x 4" N.F. hex hd. (Gr 5)

1шт.

30

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

1шт.

31

92-6

LOCK WASHER,3/8"

1шт.

32

A35326

SHAFT & GEAR - (w/adjustable axle)

1шт.

33

A35252

PLUG - adjusting, steering gear

1шт.

34

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - adjusting plug

1шт.

35

176-397

SCREW - set, 1/2" x 1-3/4" headless slotted

1шт.

36

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" N.F. hex

1шт.

37

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- support to housing, 3/8 x 3" N.C. hex

1шт.

38

O4240AB

X

OIL SEAL - steering shaft

1шт.

39

G10629

ARM - steering, center

1шт.

40

126-40

WOODRUFF KEY,#G, 3/8" x 1 1/2"

1шт.

41

25-1116

NUT,1"-14, G5

- 1" N.F. hex

1шт.

42

193-17

LOCK WASHER,Ext Tooth, 1"

WASHER, LOCK, Ext Tooth, 1"

1шт.

43

A35836

GEAR - sector (w/dual front wheel)

1шт.

44

G10948

NUT

- lock, upper bearing

1шт.

45

G10949

LOCK WASHER

LOCKWASHER - upper, steering shaft

1шт.

46

G57452

ROLLER BEARING

CONE - upper bearing (w/dual frt. wheel)

1шт.

47

G57451

BEARING, CUP

CUP - upper bearing (w/dual frt. wheel)

1шт.

48

O4240AB

X

OIL SEAL - upper (w/dual frt. wheel)

1шт.

49

A35308

PEDESTAL - dual front wheel

1шт.

50

G15202

CUP

- lower bearing (Timken #24720)

1шт.

51

VT4995

X

CONE - lower bearing (Timken #24780)

1шт.

52

VT4993

X

WASHER - thrust, lower bearing

1шт.

53

G10689

SEAL

OIL SEAL - lower

1шт.

54

G10850

SPINDLE

SHAFT - steering (w/dual frt. wheel)

1шт.

55

G10812

SPINDLE - dual wheel

1шт.

56

O4267AB

WASHER - take-up, dual wheel spindle

1шт.

57

25-1516

NUT,Jam, 1"-14, G5

- 1" N.F. hex (half nut)

1шт.
