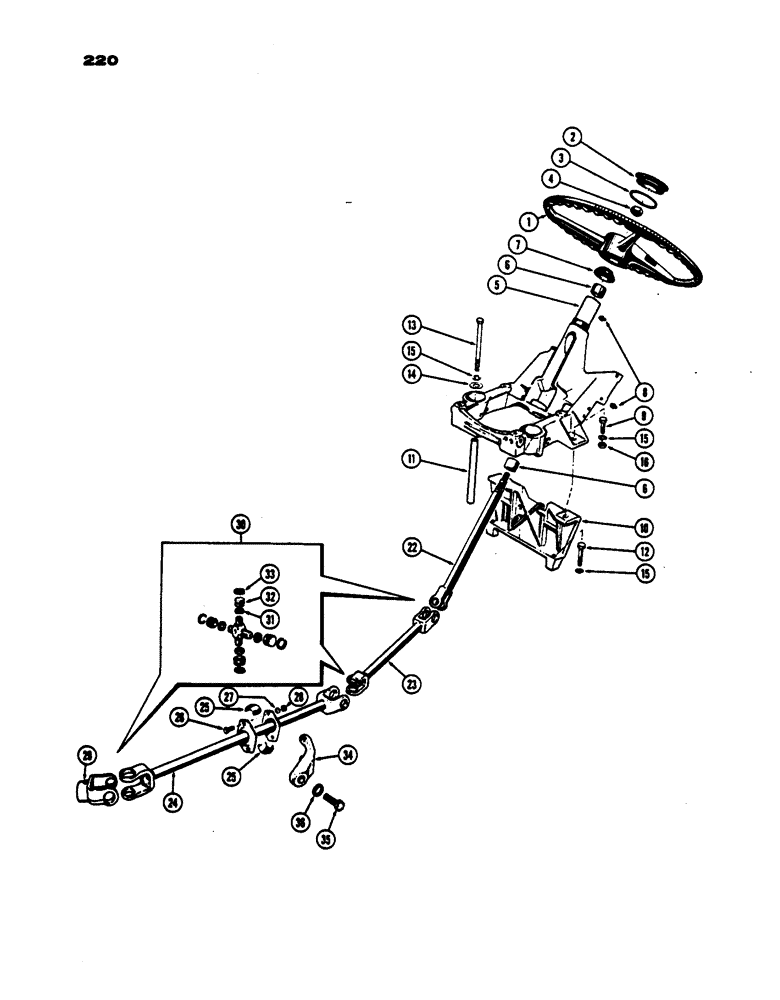

Запчасти Case IH 430 (220) - STEERING WHEEL AND LINKAGE, 430 MODEL, PRIOR TO S/N 8262800 (05) - STEERING
№
Артикул
Название
Примечание
Количество
1
A20456
WHEEL (STEERING)
WHEEL - steering
1шт.
2
A20449
EMBLEM CASE/IH
MEDALLION - steering wheel
1шт.
2
A20475
CAP
MEDALLION - (Power Steering)
1шт.
3
O10984AB
X
"O" RING - medallion (2-1/2 x 2-3/4 x 1/8")
1шт.
4
258-1512
NUT - wheel ret. (3/4" N.F. half hex)
1шт.
5
G13391
COLUMN ASSY. - steering (incl. ref. 6)
1шт.
6
G10741
BUSHING,25.44mm ID x 27mm OD x 34.92mm L
- str. column
2шт.
7
G10742
SEAL
- dust, str. column
1шт.
8
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg
2шт.
9
13-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
Column to support Hex, 3/8"-16 x 1 3/4", G5
2шт.
10
G1076
SUPPORT - steering column
1шт.
11
G10747
SPACER - support (7-3/8" long) 0.75" OD x 7.375" L
2шт.
12
13-636
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
Support Hex, 3/8"-16 x 2 1/4", G5
2шт.
13
15-6128
BOLT
- column (3/8 x 8" N.C. hex)
2шт.
14
195-522
WASHER,5/16"
- (3/8 x 3/4 x 5/64")
2шт.
15
92-6
LOCK WASHER,3/8"
4шт.
16
25-106
NUT,3/8"-16, G5
- (3/8" N.C. hex)
2шт.
22
A20683
SHAFT - steering, upper
1шт.
23
G13131
SHAFT - steering, intermediate
1шт.
24
A40603
SHAFT ASSY. - steering. lower (diesel) (incl. ref. 25 - 28)
1шт.
24
G14033
SHAFT ASSY. - steering lower (gas) (incl. ref. 25 - 28)
1шт.
25
G17025
CYLINDER END CAP
BEARING- half shell
2шт.
26
13-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
Bearing flange Hex, 5/16"-18 x 1", G5, Full Thd
2шт.
27
92-5
LOCK WASHER,5/16"
2шт.
28
9635082
NUT,5/16" - 18, Gr 5
- (5/16" N.C. hex)
2шт.
29
G10897
YOKE
- universal joint, front
1шт.
30
VTA3227
X
UNIVERSAL JOINT ASSY. (incl. ref. 31 - 33)
3шт.
31
V20414
WASHER - cork
4шт.
32
NSS
NOT SOLD SEPARAT
BEARING - (Order VTA 3227)
4шт.
33
V20955
X
RING - snap, brg. ret.
4шт.
34
G1720
BRACKET - bearing support
1шт.
35
13-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd
Bracket Hex, 5/8"-11 x 1 1/2", G5, Full Thd
1шт.
Выбрано товаров: 33
