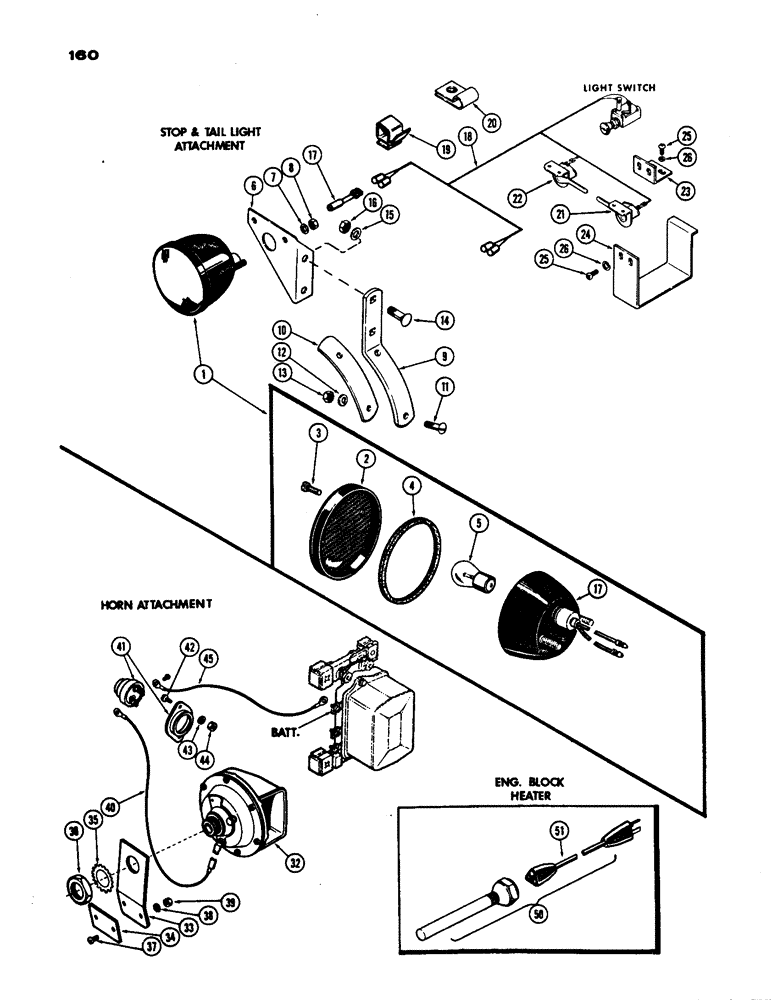

Запчасти Case IH 430 (160) - STOP AND TAIL LAMP ATTACHMENT, HORN ATTACHMENT, PRIOR S/N 8262800 (04) - ELECTRICAL SYSTEMS

A36831

LAMP KIT - stop & tail lights, Includes: Ref. 1 - 26

1шт.

1

A16732

LAMP ASSY., Includes: Ref. 2 - 5

2шт.

2

B50336

LENS

- lamp

1шт.

3

187-553

SCREW,Slotted Pan Hd, #8 x 5/8"

- lens retaining

2шт.

4

A40862

GASKET -, Serial Range: lens-body

1шт.

5

R11078

LAMP

BULB - (12 volt)

1шт.

6

A36834

BRACKET - lamp mtg., right hand

1шт.

6

A36835

BRACKET - lamp mtg., left hand

1шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, . Lamp to bracket 1/4"

4шт.

8

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Lamp to brkt

4шт.

9

G10877

SUPPORT - lamp braclet

2шт.

10

G10878

REINFORCEMENT - lamp brkt. support

2шт.

11

175-403

SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

- support (1/4" x 3/4" N.C., truss hd.

4шт.

12

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - (1/4" lock)

4шт.

13

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

14

111-202

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2, Brkt. to support

4шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

16

9635082

NUT,5/16" - 18, Gr 5

4шт.

17

A16731

PLUG

WIRE ASSY. - tail lamp plug

2шт.

18

A36838

HARNESS - main wire

1шт.

19

G46047

CLIP - wire

5шт.

20

O6194AB

CLIP - wire (w/17/32" dia. bolt hole)

4шт.

20

O3092AB

CLIP - wire (w/13/32" dia. bolt hole)

2шт.

21

A33976

SWITCH

- stop light, right hand

1шт.

22

A33977

SWITCH

- stop light, left hand

1шт.

23

A33974

BRACKET - switch mounting

2шт.

24

A36837

COVER - switch guard

2шт.

25

187-1126

SCREW - switch & cover (#10-3/8" N.F. pan hd.)

8шт.

26

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

8шт.

A36945

HORN ATT. - (Machinery item). Includes: Ref. 32 - 45

1шт.

32

A19581

HORN

- (12 volt), attachment

1шт.

33

A36946

BRACKET

- horn mounting, attachment

1шт.

34

A36947

PLATE ASSY.

PLATE - mounting bracket, horn attachment

1шт.

35

193-16

LOCK WASHER,Ext Tooth, 7/8"

WASHER - horn (7/8" ext. skpf), attachment

1шт.

36

A19827

X

NUT - horn to bracket (7/8" N.F. hex spec.), attachment

1шт.

37

173-207

X

SCREW - brkt. to support (1/4" x 5/8" N.C. rd. hd.), horn attachment

2шт.

38

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Horn attachment 1/4"

2шт.

39

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Horn attachment

2шт.

40

A36949

WIRE - button to horn, attachment

1шт.

41

A36948

SWITCH

- horn, attachment

1шт.

42

173-234

SCREW - button (#5 x 1/2" N.C. rd. hd.), horn attachment

2шт.

43

192-14

LOCK WASHER,Helical Spring, #5, 0.13" ID, CST, ZND

Washer, Lock, , Horn attachment #5

2шт.

44

129-14

NUT,#5-40

Horn attachment #5-40

2шт.

45

A13906

WIRE - button to vol. regulator, horn attachment

1шт.

50

A44815

HEATER

ASSY. - w/cord (Replaces A40637), Includes: Ref. 51, cylinder block

1шт.

51

A40477

ELECTRICAL WIRE

CORD - heater, cylinder block

1шт.
