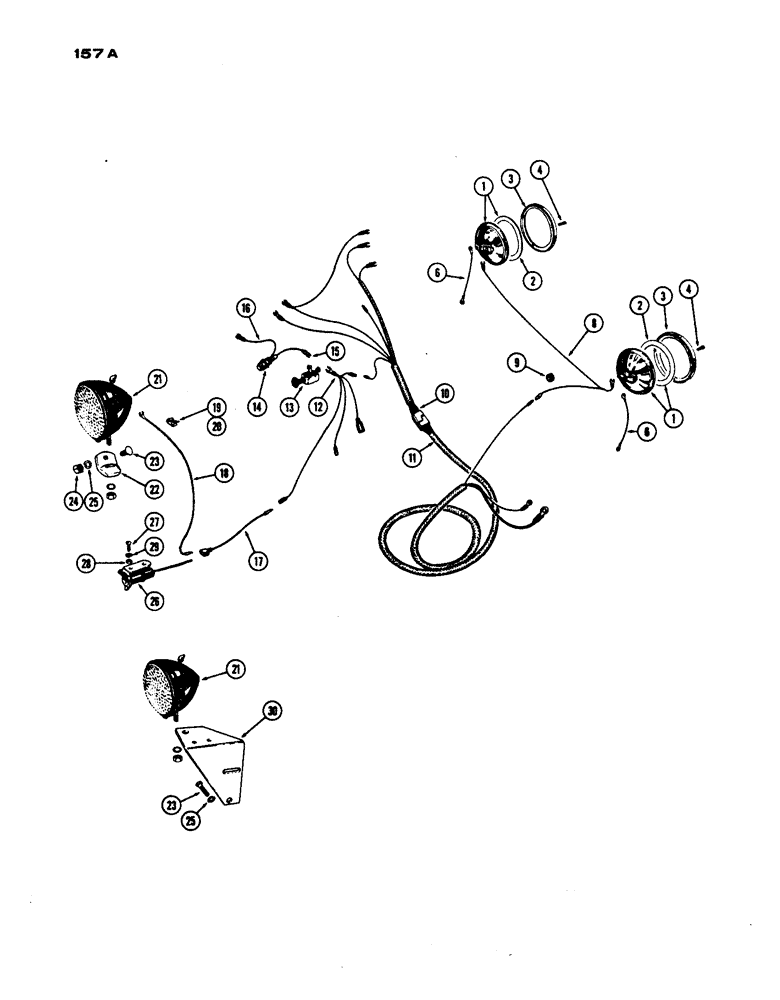

Запчасти Case IH 430 (157A) - ELECTRIC LIGHTING AND WIRING, PRIOR TO S/N 8262800 (04) - ELECTRICAL SYSTEMS

1

A24572

LAMP

HEAD LAMP (incl. ref. 2)

2шт.

2

A11276

GASKET

- head lamp

1шт.

3

A11275

RING

- retainer, head lamp

2шт.

4

182-503

SCREW,Sl Pan Hd, #6 - 32 x 1"

- (#6-32 x 1" pan hd.)

6шт.

6

A11768

ELECTRICAL WIRE

WIRE - ground, head lamp

2шт.

8

G44050

WIRE - head lamp harness

1шт.

9

O8332AB

X

GROMMET - light wire

1шт.

10

NSS

NOT SOLD SEPARAT

CABLE - master, (See Figures 34, 86, 150 and 152)

1шт.

11

NSS

NOT SOLD SEPARAT

CABLE - master, (See Figures 34, 86, 150 and 152)

1шт.

12

G44048

CABLE - light switch

1шт.

13

G13142

IGNITION SWITCH

SWITCH - light

1шт.

14

A22874

HOLDER

FUSE HOLDER - (See Figure 142)

1шт.

15

A22875

ELECTRICAL WIRE

WIRE -, Serial Range: fuse-switch

1шт.

16

A22876

ELECTRICAL WIRE

WIRE -, Serial Range: fuse-terminal

1шт.

17

A36555

ELECTRICAL WIRE

WIRE & COUPLER - tail lamp and outlet socket (46-1/4" used w/hitch)

1шт.

17

A36557

ELECTRICAL WIRE

WIRE & COUPLER - tail lamp and outlet socket (30-1/4" used w/o hitch)

1шт.

18

A36554

ELECTRICAL WIRE

WIRE - tail lamp (48" used w/hitch)

1шт.

18

A36556

ELECTRICAL WIRE

WIRE - tail lamp (57" used w/o hitch)

1шт.

19

G46047

CLIP -, Serial Range: cable-fender

3шт.

20

O2457AB

CLIP - cable to rear axle

5шт.

21

A20965

LAMP BASE

LAMP - combination flood & tail (Parts list next page)

1шт.

22

6122A

X

BRACKET - tail lamp (530)

1шт.

23

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

26

A8170

SOCKET

- auxiliary outlet

1шт.

27

173-97

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- #10-24 x 1/2" rd. hd.

2шт.

28

129-7

NUT,Hex, #10 - 24

- hex #10-24

2шт.

29

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

30

G17220

BRACKET - tail lamp (430)

1шт.
