Запчасти Case IH 430 (154) - GENERATOR PARTS, PRIOR TO S/N 8262800, 430 AND 530 MODEL, 188 DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

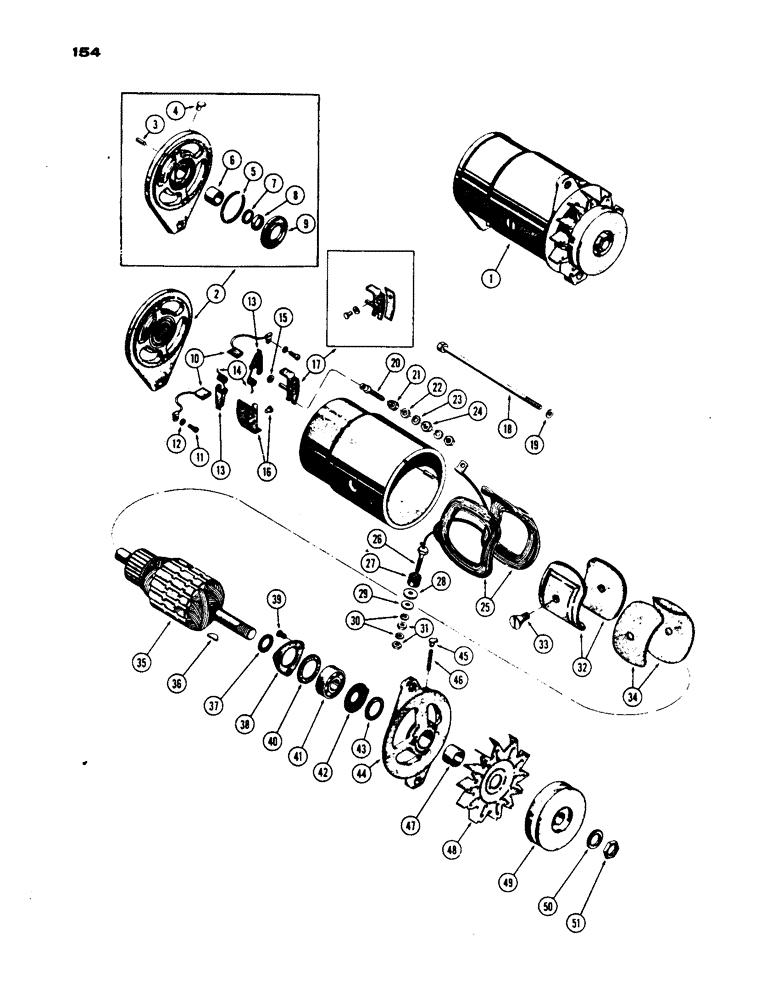

Схема запчастей Case IH 430 - (154) - GENERATOR PARTS, PRIOR TO S/N 8262800, 430 AND 530 MODEL, 188 DIESEL ENGINE (04) - ELECTRICAL SYSTEMS
10
12
40
8
35
30
4
9
47
2
23
51
19
42
49
20
37
46
5
14
1
50
25
32
22
24
15
26
44
3
36
34
38
11
13
29
18
16
21
33
31
43
13
6
45
28
41
27
48
17
7
39

Артикул

Название

Примечание

Количество

1

G44877

SPARE PART GENERATOR ASSY. (Delco #1100385) Order A36563) (incl. ref. 2 - 51)

1шт.

1

A36563

GENERATOR

GENERATOR ASSY. (Delco #1100443) (incl. ref. 2 - 51)

1шт.

1

103817A1R

REMAN-GENERATOR

Remanufactured 12 VOLT, 20 AMP Generator

1шт.

1

103817A1C

CORE-GENERATOR

Return Number, 12 VOLT, 20 AMP Generator

1шт.

2

A25411

HOUSING

HOUSING ASSY. commutator end (incl. ref. 3, 4 & 5)

1шт.

3

NSS

NOT SOLD SEPARAT

PIN - head locating

1шт.

4

NSS

NOT SOLD SEPARAT

OILER

1шт.

5

NSS

NOT SOLD SEPARAT

WICK - oiler

1шт.

6

A25459

BUSHING

BUSHING - armature shaft

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER - comm. end (felt)

1шт.

8

NSS

NOT SOLD SEPARAT

CUP - retainer, felt washer

1шт.

9

NSS

NOT SOLD SEPARAT

RETAINER - oil wick

1шт.

10

R4286

BRUSH, COMMUTATOR

BRUSH BRUSH

2шт.

11

NSS

NOT SOLD SEPARAT

SCREW - brush lead

2шт.

12

NSS

NOT SOLD SEPARAT

WASHER - lock, brush lead screw

2шт.

13

R15090

ARM

ARM - brush pressure

2шт.

14

R16161

VALVE SPRING

SPRING - brush arm

2шт.

15

NSS

NOT SOLD SEPARAT

WASHER - brush arm spacer

2шт.

16

A40703

NOZZLE HOLDER

BRUSH HOLDER KIT - ground

1шт.

17

A40704

NOZZLE HOLDER

BRUSH HOLDER KIT - insulated

1шт.

18

A40129

BOLT

BOLT - thru

2шт.

19

NSS

NOT SOLD SEPARAT

WASHER - lock, thru bolt

2шт.

20

R16146

X

STUD - armature terminal

1шт.

21

R16147

BUSHING

BUSHING - arm term., insulating

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER - arm term., plain (metal)

1шт.

23

NSS

NOT SOLD SEPARAT

WASHER - lock, arm term.

2шт.

24

NSS

NOT SOLD SEPARAT

NUT - arm. term.

2шт.

25

A25437

COIL

COIL ASSY. - field (incl. ref. 26)

1шт.

26

R16150

X

STUD - field terminal

1шт.

27

R15077

X

PLUG - manifold heater (Eng. #2028232 and after) (incl. ref. 25)

1шт.

28

NSS

NOT SOLD SEPARAT

WASHER - field term., insulating

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER - field term., plain (metal)

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER - lock, field term.

2шт.

31

NSS

NOT SOLD SEPARAT

NUT - field term.

2шт.

32

R16145

SPARE PART SHOE - pole

2шт.

33

NSS

NOT SOLD SEPARAT

SCREW - pole shoes

2шт.

34

R16152

INSULATOR

INSULATION - field coil

2шт.

35

A40130

ARMATURE

ARMATURE - (A36563)

1шт.

35

A25426

SPARE PART ARMATURE - (G44877)

1шт.

36

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, , Armature shaft #5, 1/8" x 5/8", HT

1шт.

37

NSS

NOT SOLD SEPARAT

SPACER - retainer

1шт.

38

R15101

PLATE

RETAINER - bearing

1шт.

39

NSS

NOT SOLD SEPARAT

SCREW - brg. retainer

3шт.

40

R16170

GASKET

GASKET - retainer

1шт.

41

G10623

BALL BEARING

BEARING - ball, drive end

1шт.

42

NSS

NOT SOLD SEPARAT

RETAINER - felt washer

1шт.

43

NSS

NOT SOLD SEPARAT

WASHER - drive end, felt

1шт.

44

R16163

X

HOUSING - assy, drive end (incl. ref. 45 & 46)

1шт.

45

NSS

NOT SOLD SEPARAT

OILER

1шт.

46

NSS

NOT SOLD SEPARAT

WICK - oil

1шт.

47

R16166

BUSHING

SPACER - fan & pulley

1шт.

48

A25449

FAN

FAN - ventilating

1шт.

49

A25454

PULLEY

PULLEY - generator drive

1шт.

50

R16171

SPRING WASHER

WASHER - lock pulley nut

1шт.

51

A25546

NUT

NUT - pulley retaining

1шт.

Выбрано товаров: 55
