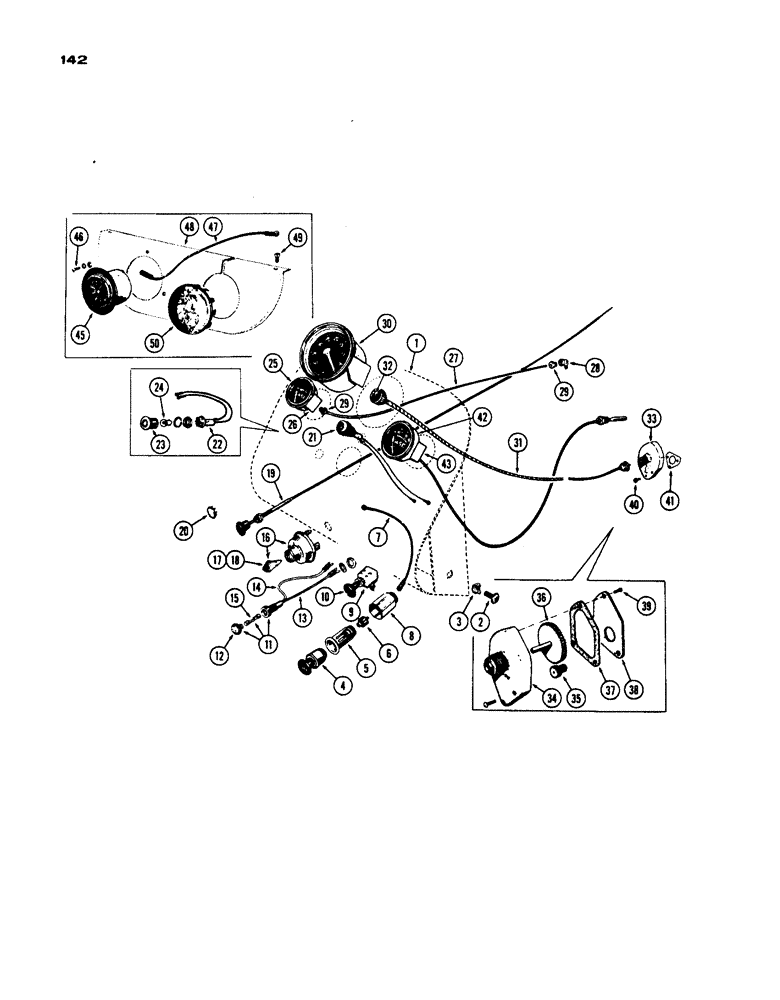

Запчасти Case IH 430 (142) - INSTRUMENT PANEL, PRIOR TO S/N 8262800, 430 MODEL, 188 DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A36038

PANEL - instrument mounting

1шт.

2

175-406

SCREW,Phil Truss Hd, 5/16 - 18 x 1/2"

- 5/16" x 1/2" N.C. truss hd.

4шт.

3

131-106

SPRING NUT,Ret, 5/16"-18

Ret, 5/16"-18

4шт.

4

G13345

UNIT

- lighter (Before SN8191147)

1шт.

4

G44919

UNIT - lighter (SN8191147 and after)

1шт.

5

G13344

SOCKET - lighter (Before SN8191147) (incl. ref. 6 & 7)

1шт.

5

G44916

SOCKET

- lighter (SN8191147 and after) (incl. ref. 6 & 7)

1шт.

6

G44803

FUSE - lighter (Before SN8191147)

1шт.

6

G44918

FUSE - lighter (SN8191147 and after)

1шт.

7

G44022

ELECTRICAL WIRE

CABLE - lighter (old and new)

1шт.

8

G46107

PIN

SHELL - clamping (Before SN8191147)

1шт.

8

G46381

SHELL - clamping (SN8191147 and after)

1шт.

9

G13142

IGNITION SWITCH

SWITCH - light (incl. ref. 10)

1шт.

10

G13141

KNOB

- light switch

1шт.

11

A22874

HOLDER

FUSE HOLDER ASSY. (incl. ref. 12, 13 & 14)

1шт.

12

A10958

CAP

- fuse holder

1шт.

13

A22875

ELECTRICAL WIRE

WIRE - fuse to light switch

1шт.

14

A22876

ELECTRICAL WIRE

WIRE - fuse to starter switch

1шт.

15

223-20

FUSE,20 Amp, Type SFE

- light

1шт.

16

A24510

SWITCH

- starting w/keys (Diesel) (incl. ref. 17)

1шт.

17

A24509

KEY

- ignition start, Set of 2 (See ref. 18)

2шт.

18

A20621

KEY

- starting (Before SN8201105)

1шт.

19

A36573

CONTROL

ROD - fuel shut-off

1шт.

20

205-16

PLUG - lighter opening

1шт.

21

G44875

LIGHT

- warning, generator (incl. ref. 22, 23 & 24)

1шт.

22

G44838

SOCKET & WIRE ASSY.

1шт.

23

G44837

LENS - warning light

1шт.

24

A14553

BULB

(Mfrs. #57)

1шт.

25

G45317

X

GAUGE - engine oil pressure (incl. ref. 26)

1шт.

26

G46227

CLAMP - mounting

1шт.

27

G46298

TUBE,0.125" OD x 52" L

- oil pressure to engine (52")

1шт.

28

222-430

ELBOW,90 Degree x 1/8" NPT x 5/16"-24

- tube to engine

1шт.

29

222-500

TUBE NUT,5/16" - 24 NPT

NUT - 1/8" tube

2шт.

30

A32143

X

TACHOMETER - (includes hour meter)

1шт.

31

G45357

CABLE

ASSY. - tach. drive (50-1/2" long) (incl. ref. 32)

1шт.

32

A24523

KIT

CABLE KIT - replacement

1шт.

33

A36818

DRIVE

ASSY. - tachometer (incl. ref. 34 - 39)

1шт.

34

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

35

G46306

GEAR WHEEL

GEAR - drive

1шт.

36

A36522

GEAR WHEEL

GEAR - driven

1шт.

37

G46882

GASKET

- cover

1шт.

38

G46307

COVER - drive assy.

1шт.

39

187-1108

SCREW - #8-32 x 3/8" pan hd.

3шт.

40

193-518

SCREW,SEMS, Pan Hd, #8-32 x 1"

- #8 x 1" pan hd. (drive to generator)

3шт.

41

G46878

GASKET

- tach., Serial Range: drive-generator

1шт.

42

O5076AB1

X

GAUGE - engine temperature (incl. ref. 43)

1шт.

43

G46227

CLAMP - mounting

1шт.

45

33481

X

HOUR METER (incl. ref. 46 & 47)

1шт.

46

174-57

SCREW - #6-32 x 1/4" rd. hd.

3шт.

47

G44077

CABLE - hour meter (18")

2шт.

48

G17229

PANEL - hour meter

1шт.

49

77-512

SCREW

- 5/16" x 3/4" truss hd.

2шт.

50

205-68

HOLE PLUG BUTTON,2 3/32"

PLUG - button

1шт.
