Запчасти Case IH 430 (036) - DISTRIBUTOR PARTS, PRIOR TO S/N 8262800, 430 MODEL, 148B SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

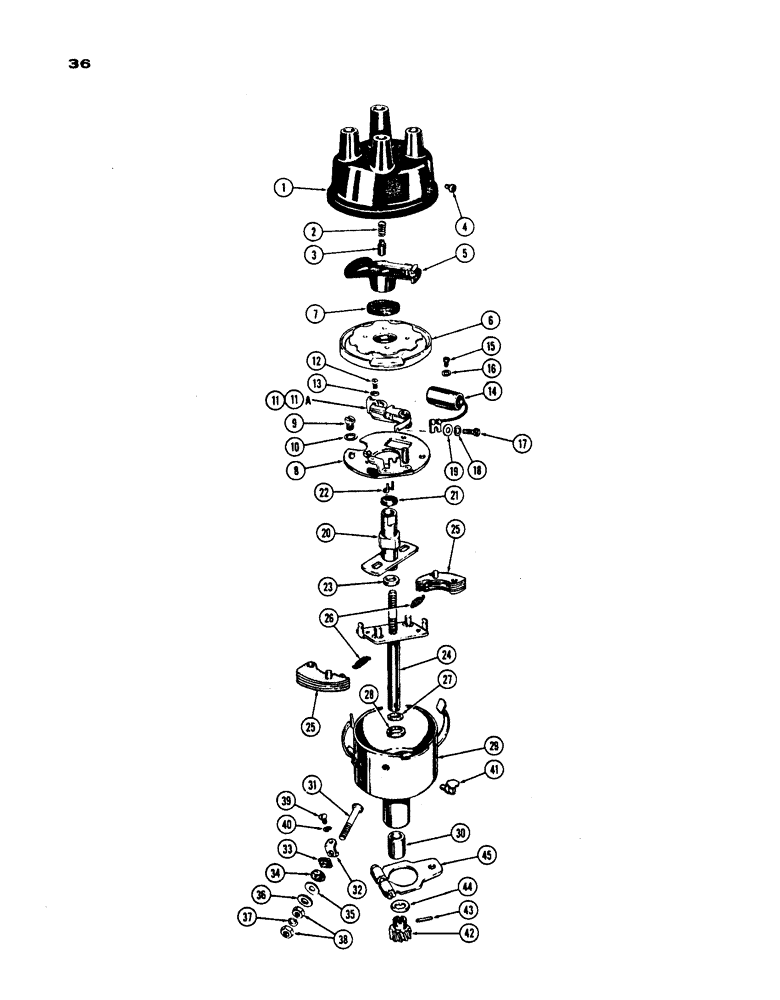

Схема запчастей Case IH 430 - (036) - DISTRIBUTOR PARTS, PRIOR TO S/N 8262800, 430 MODEL, 148B SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS
36
10
45
28
19
1
30
4
16
32
13
20
11
37
39
40
44
18
11
5
43
22
29
25
33
12
31
42
8
6
21
9
26
7
25
15
36
24
2
17
38
35
34
23
27
14
41
3

Артикул

Название

Примечание

Количество

G11051

DISTRIBUTOR

ASSY. - (Prestolite IAD-6003-2J) (incl. ref. 1 - 11)

1шт.

1

A8368

CAP

ASSY. (incl. ref. 2, 3 & 4)

1шт.

2

NSS

NOT SOLD SEPARAT

SPRING - brush tension

1шт.

3

NSS

NOT SOLD SEPARAT

BRUSH - hi-tension contact (carbon)

1шт.

4

NSS

NOT SOLD SEPARAT

PLUG - cap vent hole (rubber)

1шт.

5

A8369

ROTOR

1шт.

6

A25194

PLATE

COVER ASSY. - breaker plate (incl. ref. 7)

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - dust (felt)

1шт.

8

A25196

PLATE

- breaker

1шт.

9

177-94

SCREW,Sl Fil Hd, #10 - 32 x 5/16"

- plate (#10-32 x 5/16" fill. hd.)

2шт.

10

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

11

A25963

CONTACT

POINT SET (See A25195)

1шт.

11

A25195

CONTACT

POINT SET - (heavy duty) (incl. ref. 12 - 44)

1шт.

12

177-72

SCREW - point set (#8-32 x 3/16" fill. hd.)

1шт.

13

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

14

A8370

PACKAGE

CONDENSER

1шт.

15

177-56

SCREW - condenser (#6-32 x 3/16" fill. hd.)

1шт.

16

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

17

171-216

SCREW,Sl Flat Hd, #6 - 32 x 5/16"

- spring clamp (#6-32 x 5/16" flat. hd.)

1шт.

18

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

19

195-6

WASHER,#6

- ( small flat) #6

1шт.

20

A25193

CAM

ASSY. (incl. ref. 21)

1шт.

21

NSS

NOT SOLD SEPARAT

WICK - oiler

1шт.

22

A25180

RING, SNAP

RING - snap (See A40322)

1шт.

23

A25197

SPACER

- cam (See A40322)

1шт.

24

A25177

SHAFT

- drive

1шт.

25

A25198

WEIGHT

- governor

2шт.

26

A25208

SET

SPRING SET - governor weights

1шт.

27

A24752

WASHER

- thrust, drive shaft (See A40322)

1шт.

28

A24753

WASHER

- thrust, drive shaft (See A40322)

1шт.

29

NSS

NOT SOLD SEPARAT

BASE ASSY. - (Order G11051)

1шт.

30

NSS

NOT SOLD SEPARAT

BEARING - drive shaft (Order A40322)

1шт.

31

NSS

NOT SOLD SEPARAT

CONTACT - lo-tension terminal (Order A40321)

1шт.

32

NSS

NOT SOLD SEPARAT

CONNECTOR - lo-tension (Order A40321)

1шт.

33

NSS

NOT SOLD SEPARAT

INSULATION - inner (Order A40321)

1шт.

34

NSS

NOT SOLD SEPARAT

BUSHING - insulator (Order A40321)

1шт.

35

NSS

NOT SOLD SEPARAT

INSULATION - contact (outer) (Order A40321)

1шт.

36

195-5

WASHER

- (#10 small flat) (Order A40321)

1шт.

37

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

38

129-27

NUT,Hex, #10 - 32

- ( hex.) (Order A40321) #10-32

2шт.

39

174-56

SCREW - connector (#6-32 x 3/16" rd. hd.)

1шт.

40

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

41

A24887

OILER - drive shaft

1шт.

42

G11714

GEAR

- drive (See A40323)

1шт.

43

138-56

LOCK PIN,1/8" x 11/16", Slotted

PIN, (See A40322) 1/8" x 11/16", Slotted

1шт.

44

A25200

WASHER

- thrust, drive gear (See A40322 and A40323)

1шт.

45

VTA2775

X

ARM ASSY. - adjustment clamp

1шт.

A40321

KIT

- terminal stud (includes ref. 32, 33 & 34)

1шт.

A40322

KIT

- shaft bearing (includes ref. 22, 23, 27 28, 30, 43 and 44)

1шт.

A40323

GEAR

KIT - gear (includes 42, 43 and 44)

1шт.

Выбрано товаров: 50
