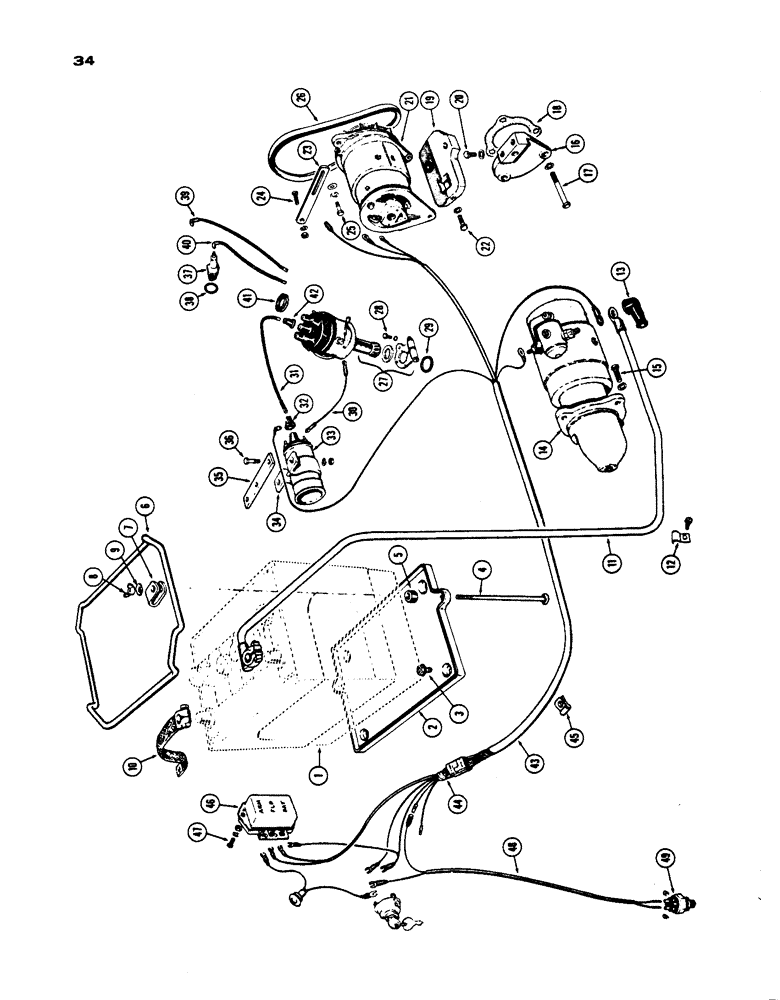

Запчасти Case IH 430 (034) - ELECTRICAL SYSTEM, PRIOR TO S/N 8262800, 430 MODEL, 148B SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

1

11MS

BATTERY - 12 volt

1шт.

2

G16909

PAN

- battery

1шт.

3

193-513

SCREW,SEMS, Hex Hd, 5/16"-18 x 1/2"

- 5/16" x 1-1/2" N.C. hex hd.

4шт.

4

111-213

CARRIAGE BOLT,Short NK, 5/16"-18 x 9", G2

BOLT - 5/16" x 9" rd. hd. sq. neck

2шт.

5

G46096

RETAINER

BUSHING - bolt retaining

2шт.

6

A35009

SECURING STRAP

FRAME - hold down, battery

1шт.

7

A35010

CLIP

- hold down frame bolt

2шт.

8

G49020

NUT

- hold down bolt (5/16" N.C. wing)

2шт.

9

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" plain

2шт.

10

VT2336

X

STRAP - ground (Before SN8233766)

1шт.

10

A36368

STRAP

- ground (SN8233766 and after)

1шт.

11

G44049

CABLE

- batt. to solenoid (Before SN8233766)

1шт.

11

O9999AB

X

CABLE - batt. to solenoid (SN8233766 and after)

1шт.

12

O3092AB

CLIP - cable

1шт.

13

A21753

CAP

NIPPLE - solenoid terminal

1шт.

14

G44880

STARTING MOTOR - (Auto-Lite #MDU-7102) Use A36581

1шт.

14

A36581

STARTING MOTOR - (Prestolite #MDU-7102A) For starting motor repairs see Figure 40

1шт.

15

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

16

G2098

SUPPORT - generator bracket

1шт.

17

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8" x 3-1/4" N.C. hex hd.

3шт.

18

VT3691

X

GASKET - support

1шт.

19

G2131

X

BRACKET - generator mounting

1шт.

20

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

20

13-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- 5/16" x 1-3/8" N.C. hex hd.

1шт.

21

G44879

GENERATOR - (Auto-Lite #GJT-7104A) Before SN8233766

1шт.

21

A36195

GENERATOR - Prestolite #GJT-7403A)SN8233766 and after For generator repairs see Figure 38

1шт.

22

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

23

G11344

STRAP - adjusting, generator

1шт.

24

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

25

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

1шт.

26

G46238

BELT,0.55" W x 17.78" L

Fan and Generator Drive 0.55" W x 17.78" L

1шт.

27

G11051

DISTRIBUTOR

- (Auto-Lite #IAD-6003-2J) Repairs Figure 88

1шт.

28

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

29

VT4593

X

"O" RING -, Serial Range: distributor-block

1шт.

30

G13085

ELECTRICAL WIRE

WIRE - dist. to coil (lo-tension) (12")

1шт.

31

VT3534

X

CABLE - dist. to coil (hi-tension) (11")

1шт.

32

G46803

BOOT

NIPPLE -, Serial Range: cable-coil

1шт.

33

A33438

COIL

- ignition (Prestolite #200578)

1шт.

34

G46106

BRACKET

CLAMP - coil

1шт.

173-219

SCREW - #10-32 x 1-1/2" rd. hd. self tapping

1шт.

35

G11705

BRACKET

- coil mounting

1шт.

36

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

2шт.

37

G44840

SPARK PLUG

- 18 mm (incl. ref. 38)

4шт.

38

G46839

GASKET

1шт.

39

VT2879

X

WIRE - #1 and #4 spark plug (10-1/2")

2шт.

40

VTA3354

X

WIRE - #2 and #3 spark plug (8-1/2" long)

2шт.

41

V20356

NUT

"O" RING - plug wire harness

1шт.

42

VT3561

X

NIPPLE - distributor wire

5шт.

43

G44061

CABLE - master, lower half

1шт.

44

G44060

HARNESS

CABLE - master, upper half

1шт.

45

A22880

CLIP

- master cable

1шт.

46

G44878

REGULATOR

- voltage (Auto-Lite #VBO-6201C1) Before SN8233766

1шт.

46

A36194

REGULATOR

- voltage (Prestolite #VBO-4201-H1) SN8233766 and after

1шт.

47

173-202

SCREW,Rnd Hd, 1/4" - 20 x 3/4"

- 1/4" x 3/4" N.C. rd. hd.

3шт.

48

G44066

CABLE

- safety starting switch

1шт.

49

A20990

SWITCH

- safety starting, neutral (in shift cover)

1шт.
