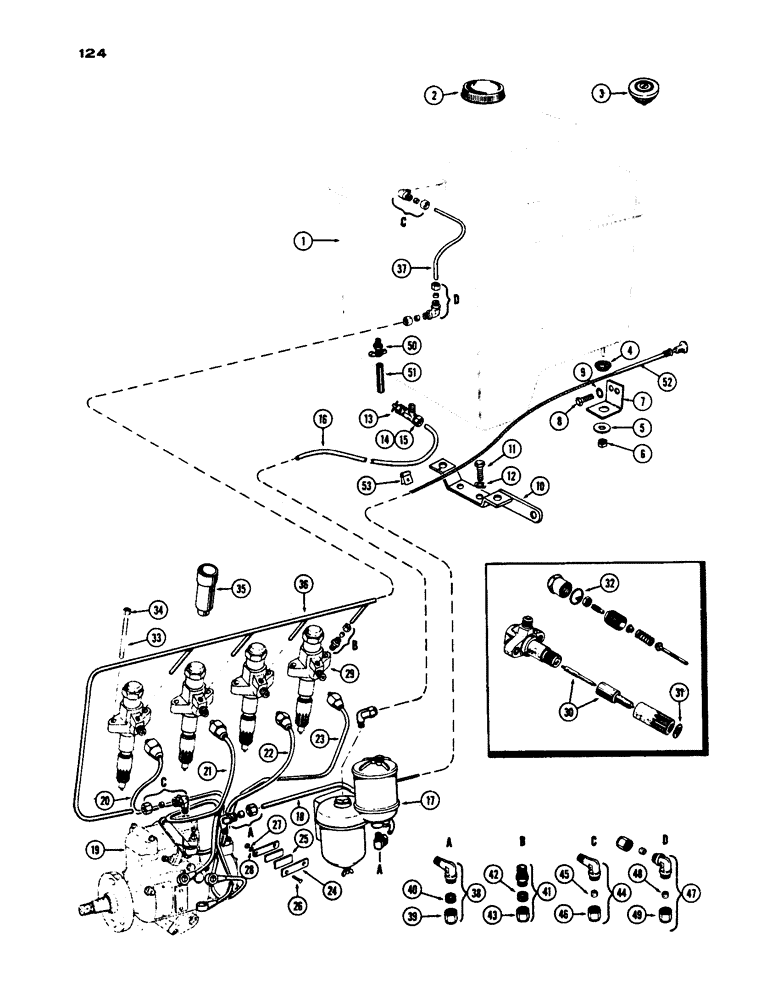

Запчасти Case IH 430 (124) - FUEL SYSTEM, S/N 8217374 AND AFTER, PRIOR TO S/N 8262800, 430 MODEL, 188 DIESEL ENGINE (03) - FUEL SYSTEM

1

A35712

TANK - fuel

1шт.

2

A32119

CAP

- fuel tank (See ref. 3)

1шт.

3

A32120

CAP

- fuel tank (locking type) Includes keys. Keys not furnished for repairs

1шт.

4

A7336

CUSHION

- rubber, tank stud

3шт.

5

O30577HT

X

WASHER - tank stud

3шт.

6

131-5

LOCK NUT,3/8"-16, GB

NUT - lock, tank stud (3/8" N.F.)

3шт.

7

G10691

SUPPORT - rear, fuel tank

1шт.

8

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

9

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

10

G30407

SUPPORT - front, fuel tank

1шт.

11

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

12

92-5

LOCK WASHER,5/16"

2шт.

13

G13311

VALVE

- needle (incl. ref. 14 & 15)

1шт.

14

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

15

222-114

NUT,5/8"-24

NUT - 3/8" tube

1шт.

16

A35715

TUBE

LINE - fuel, Serial Range: valve-filter

1шт.

17

A35735

FILTER

ASSY. - (For repairs see page 135)

1шт.

18

A36566

TUBE

LINE - fuel, Serial Range: filter-pump

1шт.

19

G37030

PUMP - injection (For repairs see page 135)

1шт.

20

A35058

TUBE

- pump to #1 injector

1шт.

21

A35059

TUBE

- pump to #2 injector

1шт.

22

A35060

TUBE

- pump to #3 injector

1шт.

23

A35061

TUBE

- pump to #4 injector

1шт.

24

O9970AB

X

CLAMP - injection tube

2шт.

25

O9973AB

X

CUSHION - tube clamp

2шт.

26

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- clamp, #10-24 x 1" rd. hd.

2шт.

27

129-7

NUT,Hex, #10 - 24

- hex #10-24

2шт.

28

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

29

A49056

NOZZLE CAP

INJECTOR - fuel (incl. ref. 30, 31 & 32)

4шт.

30

A35085

NOZZLE CAP

NOZZLE - injector

1шт.

31

G49068

GASKET

- seat

1шт.

32

G46885

GASKET

- adjusting cap

1шт.

33

VT4510

X

STUD - injector to head (3/8" x 3/4")

8шт.

34

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

8шт.

35

G11724

LINER

-, Serial Range: injector-head

4шт.

36

A36511

PIPE

TUBE - injector leak-off

1шт.

37

G45381

LINE - leak-off, Serial Range: tube-tank

1шт.

38

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- 3/8" O.D. x 1/4" P.T. (incl. ref. 39 & 40)

3шт.

39

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

40

222-114

NUT,5/8"-24

NUT - 3/8" tube

1шт.

41

222-21

FITTING,7/16"-24 x 1/8" NPTF

Leak-off, Includes Ref. 42 & 43 7/16"-24 x 1/8" NPTF

4шт.

42

222-101

SLEEVE,3/16" Tube

- 3/16" Tube

1шт.

43

222-111

TUBE NUT,7/16" - 24

NUT - 3/16" tube

1шт.

44

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- 5/16" O.D. x 1/8" P.T. (incl. ref. 45 & 46)

2шт.

45

222-103

SLEEVE,5/16" Tube

1шт.

46

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

1шт.

47

222-133

ELBOW,90 Degree, 9/16"-24

- 5/16" O.D. x 1/8" P.T (incl. ref. 48 & 49)

1шт.

48

222-103

SLEEVE,5/16" Tube

2шт.

49

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

2шт.

50

217-102

PLUG, DRAIN

VALVE - tank drain

1шт.

51

A22988

HOSE,0.25" ID x 15.00", SAE SC716 CS

- Drain valve 0.25" ID x 15.00", SAE SC716 CS

1шт.

52

A36573

CONTROL

ROD - fuel shut-off

1шт.

53

O2825AB

X

CLIP - shut-off rod

1шт.
