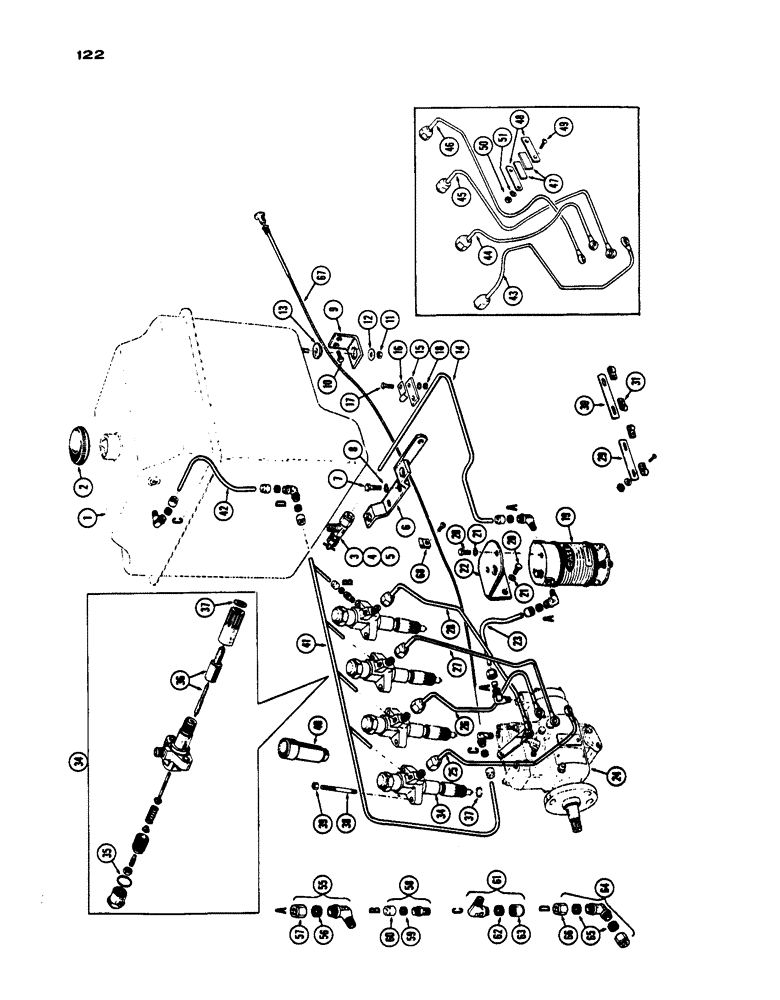

Запчасти Case IH 430 (122) - FUEL SYSTEM, BEFORE S/N 8217374, PRIOR TO S/N 8262800, 430 MODEL, 188 DIESEL ENGINE (03) - FUEL SYSTEM

1

G30403

TANK - fuel

1шт.

2

A32119

CAP

- fuel tank

1шт.

3

G13311

VALVE

- needle (incl. ref. 4 & 5)

1шт.

4

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

5

222-114

NUT,5/8"-24

NUT - 3/8" tube

1шт.

6

G30407

SUPPORT - front, fuel tank

1шт.

7

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

8

92-5

LOCK WASHER,5/16"

2шт.

9

G10691

SUPPORT - rear, fuel tank

1шт.

10

73-510

SCREW - mach., 5/16" x 5/8" flat hd.

2шт.

11

131-5

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8" N.F. hex

3шт.

12

O30577HT

X

WASHER - tank stud

3шт.

13

A7336

CUSHION

- rubber, tank stud

3шт.

14

G45380

LINE - fuel, Serial Range: valve-filter

1шт.

15

G15736

BRACKET - fuel line

1шт.

16

O6162AB

CLIP - fuel line

1шт.

17

14-58

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5, Full Thd

- 5/16" x 1/2" N.F. hex hd.

1шт.

18

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

19

G45316

FILTER ASSY. - fuel (Repairs Filter 132)

1шт.

20

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

21

92-5

LOCK WASHER,5/16"

3шт.

22

G11366

BRACKET - filter mounting

1шт.

23

A35180

LINE - fuel, Serial Range: filter-pump

1шт.

24

G37030

PUMP - injection (Repairs page 135)

1шт.

25

NSS

NOT SOLD SEPARAT

TUBE - #1 injector (Order ref. 43 thre 49)

1шт.

26

NSS

NOT SOLD SEPARAT

TUBE - #2 injector (Order ref. 43 thru 49)

1шт.

27

NSS

NOT SOLD SEPARAT

TUBE - #3 injector (Order ref. 43 thru 49)

1шт.

28

NSS

NOT SOLD SEPARAT

TUBE - #4 injector (Order ref. 43 thru 49)

1шт.

29

G15969

STRAP - tube support (Before eng. #2003318)

1шт.

30

G15970

STRAP - tube support (Before eng. #2003318)

1шт.

31

G46395

CLAMP - tube (Before eng. #2003319)

4шт.

34

A49056

NOZZLE CAP

INJECTOR ASSY. - fuel (incl. ref. 35, 36 & 37)

4шт.

35

G46885

GASKET

- injector cap

1шт.

36

A35085

NOZZLE CAP

NOZZLE - injector

1шт.

37

G49068

GASKET

- nozzle seat

1шт.

38

VT4510

X

STUD - injector mounting (3/8" x 1-3/4")

8шт.

39

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

8шт.

40

G11724

LINER

-, Serial Range: injector-head

4шт.

41

A36511

PIPE

TUBE - manifold, leak-off

1шт.

42

G45381

TUBE -, Serial Range: leak-off-tank

1шт.

43

A35058

TUBE

- #1 injector

1шт.

44

A35059

TUBE

- #2 injector

1шт.

45

A35060

TUBE

- #3 injector

1шт.

46

A35061

TUBE

- #4 injector

1шт.

47

O9973AB

X

CUSHION -, Serial Range: tube-clamp

2шт.

48

O9970AB

X

CLAMP - tube

2шт.

49

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- #10-24 x 1" rd. hd.

2шт.

50

129-7

NUT,Hex, #10 - 24

- hex #10-24

2шт.

51

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

55

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- 3/8" tube x 1/4" P.T. (incl. ref. 56 & 57)

3шт.

56

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

57

222-114

NUT,5/8"-24

NUT - 3/8" tube

1шт.

58

222-21

FITTING,7/16"-24 x 1/8" NPTF

Leak-off, Includes Ref. 59 & 60 7/16"-24 x 1/8" NPTF

4шт.

59

222-101

SLEEVE,3/16" Tube

- 3/16" Tube

1шт.

60

222-111

TUBE NUT,7/16" - 24

NUT - 3/16" tube

1шт.

61

222-44

ELBOW,90 Degree, 9/16"-24 Fem x 1/8"-27 NPTF

- 5/16" tube x 1/8" P.T. (incl. ref. 62 & 63)

2шт.

62

222-103

SLEEVE,5/16" Tube

1шт.

63

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

1шт.

64

222-133

ELBOW,90 Degree, 9/16"-24

- 5/16" tube (incl. ref. 65 & 66)

1шт.

65

222-103

SLEEVE,5/16" Tube

2шт.

66

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

2шт.

67

A36573

CONTROL

WIRE - fuel shut-off

1шт.

68

O2825AB

X

CLIP - shut-off wire

1шт.
