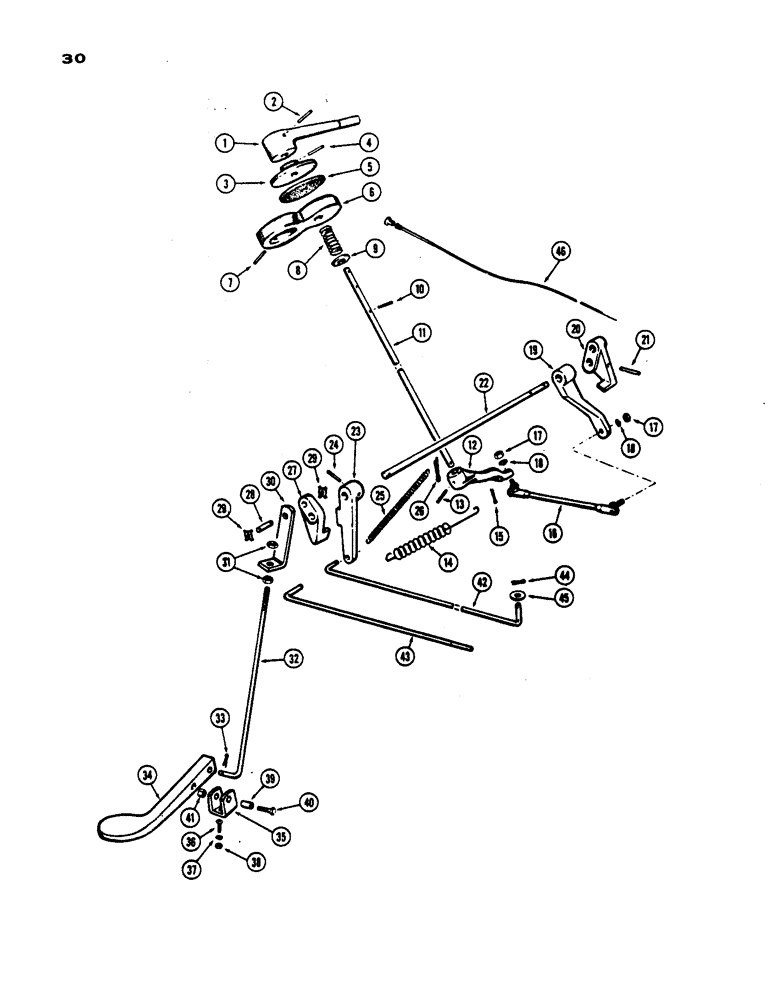

Запчасти Case IH 430 (030) - THROTTLE LINKAGE, PRIOR TO S/N 8262800, 430 MODEL, 148B SPARK IGNITION ENGINE (03) - FUEL SYSTEM

1

G1085

LEVER

- hand, throttle control

1шт.

2

138-82

LOCK PIN,5/32" x 1 5/8", Slotted

PIN, 5/32" x 1-5/8", slotted

1шт.

3

G1078

PLATE

- friction disc

1шт.

4

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, 5/32" x 7/8", Slotted

1шт.

5

G10786

DISC

- friction, cork

1шт.

6

G1077

SUPPPORT - friction plate

1шт.

7

138-130

LOCK PIN,1/4" x 3/4", Slotted

ROLL PIN - 1/8 x 3/4"

2шт.

8

G46214

SPRING

- tension

1шт.

9

195-29

WASHER,7/16"

- plain 7/16"

1шт.

10

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, 5/32" x 7/8", Slotted

1шт.

11

G10743

SHAFT - hand throttle

1шт.

12

G1079

LEVER

- lower hand throttle shaft

1шт.

13

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, 5/32" x 7/8", Slotted

1шт.

15

132-26

COTTER PIN

PIN, split (Cotter), 3/32" x 3/4"

1шт.

14

VT5113

X

SPRING - return, hand throttle lever

1шт.

16

G45128

LINK

- throttle lever

1шт.

17

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

2шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19

G1313

LEVER - actuating, cross shaft

1шт.

20

G1315

LEVER - L.H., cross shaft

1шт.

21

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, 5/32" x 7/8", Slotted

1шт.

22

G16897

SHAFT - cross

1шт.

23

G1082

LEVER

- governor control link

1шт.

24

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, 5/32" x 7/8", Slotted

1шт.

25

VT2434

X

SPRING - control lever

1шт.

26

132-26

COTTER PIN

PIN, split (Cotter), 3/32" x 3/4"

1шт.

27

G1314

LEVER - actuating, foot throttle

1шт.

28

G49056

PIN - pivot, Serial Range: link-lever

1шт.

29

O9416AB

X

RING - retaining, pivot pin

2шт.

30

G16898

LINK - connecting, Serial Range: yoke-lever

1шт.

31

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

2шт.

32

G15695

X

ROD - connecting

1шт.

33

132-26

COTTER PIN

PIN, split (Cotter), 3/32" x 3/4"

1шт.

34

G15692

PEDAL

- foot throttle

1шт.

35

G15694

BRACKET

- pivot, foot pedal

1шт.

36

77512

SCREW - 5/16" x 3/4" truss hd.

2шт.

37

92-5

LOCK WASHER,5/16"

2шт.

38

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

2шт.

39

G49618

BUSHING

- pivot, foot pedal

1шт.

40

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

- 5/16" x 1-1/2" N.F. hex hd.

1шт.

41

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

42

G11379

ROD - throttle to governor (w/wrought guide Page 29)

1шт.

43

G10746

ROD - throttle to governor (w/cast guide Page 29)

1шт.

44

132-26

COTTER PIN

PIN, split (Cotter), 3/32" x 3/4"

2шт.

45

95-6

WASHER,3/8"

- plain 3/8"

1шт.

46

A36578

ROD

- choke control

1шт.
