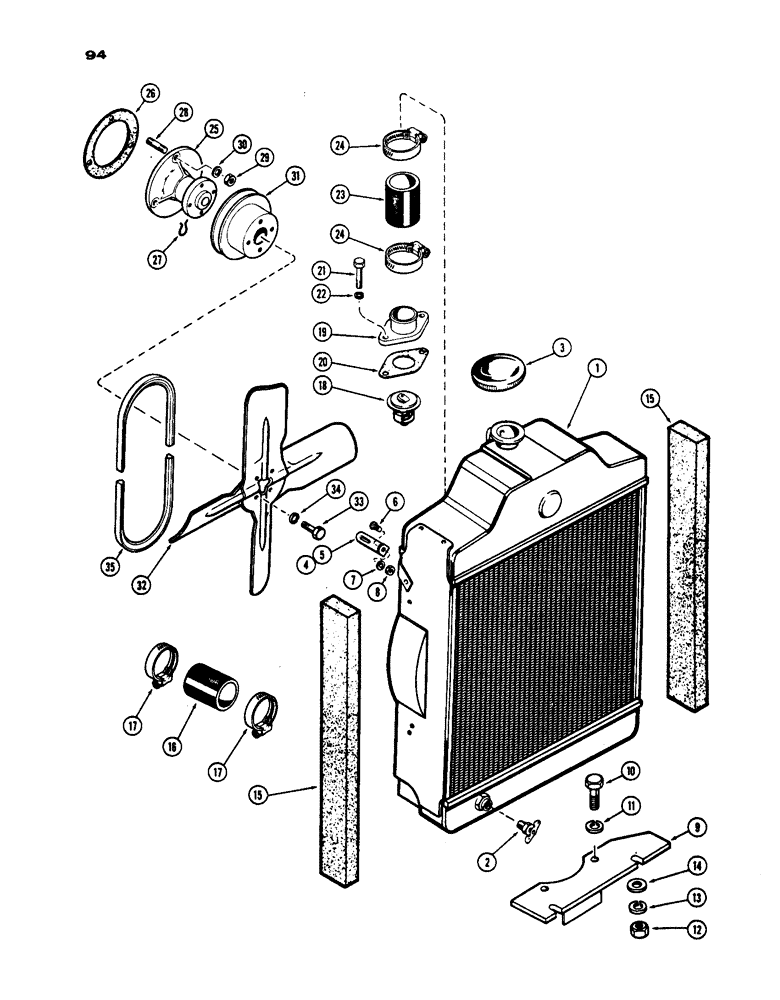

Запчасти Case IH 430 (094) - ENGINE COOLING SYSTEM, PRIOR TO S/N 8262800, 430 MODEL, 188 DIESEL ENGINE (02) - ENGINE

1

G45321

RADIATOR

RADIATOR

1шт.

2

217-103

COCK, DRAIN

DRAIN COCK - radiator

1шт.

3

G45179

CAP

CAP - radiator

1шт.

4

G10838

SPARE PART BRACE - L.H., radiator

1шт.

5

G11367

BRACE - R.H. radiator

1шт.

6

75-410

SCREW,Rd, 1/4" - 20 x 5/8"

SCREW - 1/4" x 5/8" rd. hd

2шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

25-104

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

2шт.

9

A35796

SUPPORT

SUPPORT - radiator

1шт.

10

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

BOLT, Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

11

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

1шт.

12

25-106

NUT,3/8"-16, G5

NUT - radiator stud, 3/8" N.C. hex

2шт.

13

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

14

95-6

WASHER,3/8"

WASHER - plain 3/8"

2шт.

15

G46337

SPARE PART BAFFLE - air

2шт.

16

G46269

RADIATOR HOSE,1.75" ID x 2.50", SAE 20R2

Lower

1шт.

17

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

HOSE CLAMP, #28, 1.31/2.25 Type F Worm

2шт.

18

G45788

SPARE PART THERMOSTAT (180 deg. F)

1шт.

19

G2144

FITTING

CONNECTION - water outlet

1шт.

20

G46907

GASKET

GASKET - water connection

1шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

22

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

23

G46157

AIR INTAKE TUBE,2" ID x 2.375" OD x 2" L

Upper, Radiator

1шт.

24

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

HOSE CLAMP, #36, 1.81/2.75 Type F Worm

2шт.

25

G11939

PUMP

WATER PUMP - complete (incl. ref. 26 & 27)

1шт.

25

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

25

A146584R

REMAN-WATER PUMP

Reman For New P/N G11939, Water Pump

1шт.

25

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

25

A48363

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

25

A48323

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

26

G46875

GASKET

GASKET -, Serial Range: pump-cover

1шт.

27

VT4594

X

RING - retainer

1шт.

28

VT4512

X

STUD - pump mounting (3/8" x 1")

3шт.

29

25-106

NUT,3/8"-16, G5

NUT - 3/8" N.C. hex

3шт.

30

92-6

LOCK WASHER,3/8"

LOCK WASHER, , stud 3/8"

3шт.

31

G11339

PULLEY

PULLEY - drive

1шт.

32

G45244

FAN

FAN

1шт.

33

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

34

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

4шт.

35

G46238

BELT,0.55" W x 17.78" L

Fan and Pump Drive

1шт.
