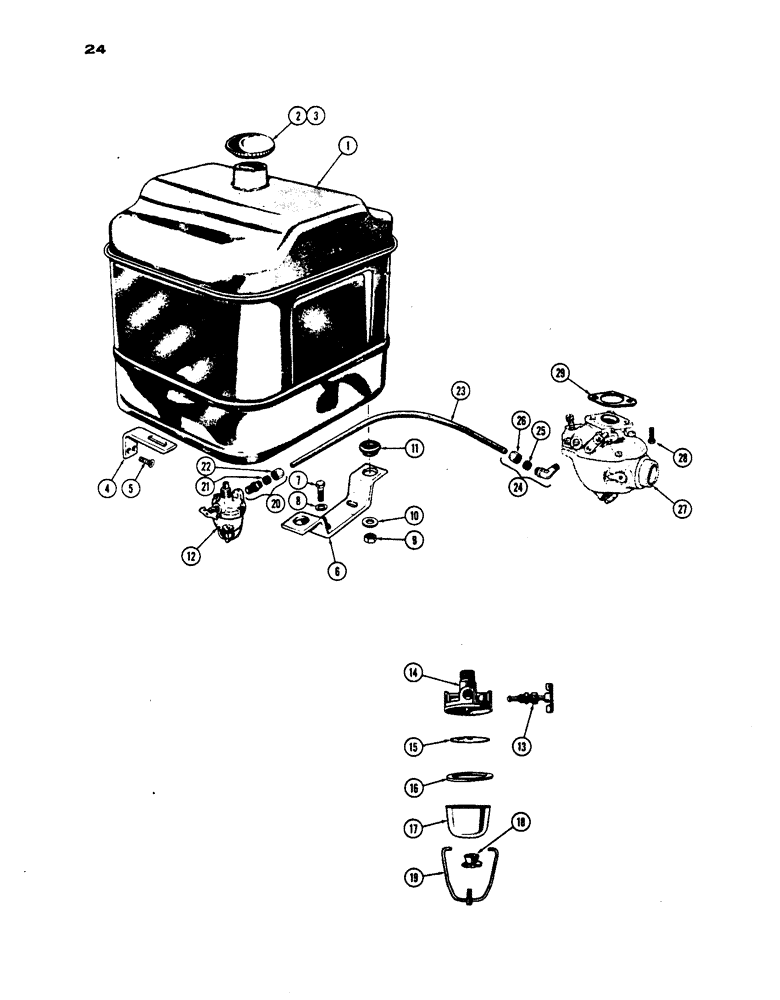

Запчасти Case IH 430 (024) - FUEL SYSTEM, PRIOR TO S/N 8262800, 430 MODEL, 148B SPARK IGNITION ENGINE (02) - ENGINE

1

G14471

FUEL TANK

TANK - fuel

1шт.

2

A32119

CAP

- fuel tank (See ref. 3)

1шт.

3

A32120

CAP

- fuel tank (Locking type) Includes keys. Keys not furnished for repairs

1шт.

4

G10691

SUPPORT - rear, fuel tank

1шт.

5

73-510

SCREW - mach., 5/16" x 5/8" N.C. flat hd.

2шт.

6

G10690

SUPPORT - front, fuel tank

1шт.

7

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

8

92-5

LOCK WASHER,5/16"

2шт.

9

131-5

LOCK NUT,3/8"-16, GB

NUT - lock, tank stud (3/8" N.F.)

3шт.

10

O30577HT

X

WASHER - tank stud

3шт.

11

A7336

CUSHION

- rubber, tank support

3шт.

12

O3990AB1

X

STRAINER ASSY. - fuel (incl. ref. 13 - 19)

1шт.

13

A11205

VALVE

1шт.

14

A11214

HEAD

1шт.

15

A11211

FILTER SCREEN

SCREEN

1шт.

16

A11208

GASKET

- bowl

1шт.

17

A11209

BOWL

1шт.

18

A11210

ADJUSTER

CUP & NUT ASSY.

1шт.

19

A11212

BAIL

ASSY.

1шт.

20

222-604

FITTING,1/2"-24 x 1/8" NPT, Comp

CONNECTOR - tube, 5/16" O.D. x 1/8" P.T. (incl. ref. 21 & 22)

1шт.

21

222-653

SLEEVE,5/16" Tube, Comp

- 5/16" tube

1шт.

22

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT - 5/16" tube

1шт.

23

G10945

LINE - fuel, Serial Range: tank-carburetor

1шт.

24

222-619

ELBOW,90 Degree, 1/2"-24 x 1/8" NPT, Comp

- tube to carburetor (incl. ref. 25 & 26)

1шт.

25

222-653

SLEEVE,5/16" Tube, Comp

- 5/16" tube

1шт.

26

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT - 5/16" tube

1шт.

27

G11050

X

CARBURETOR (Marvel-Schebler TSX-635) (See Figure 26)

1шт.

28

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

29

O562AB

X

GASKET -, Serial Range: carburetor-manifold

1шт.
