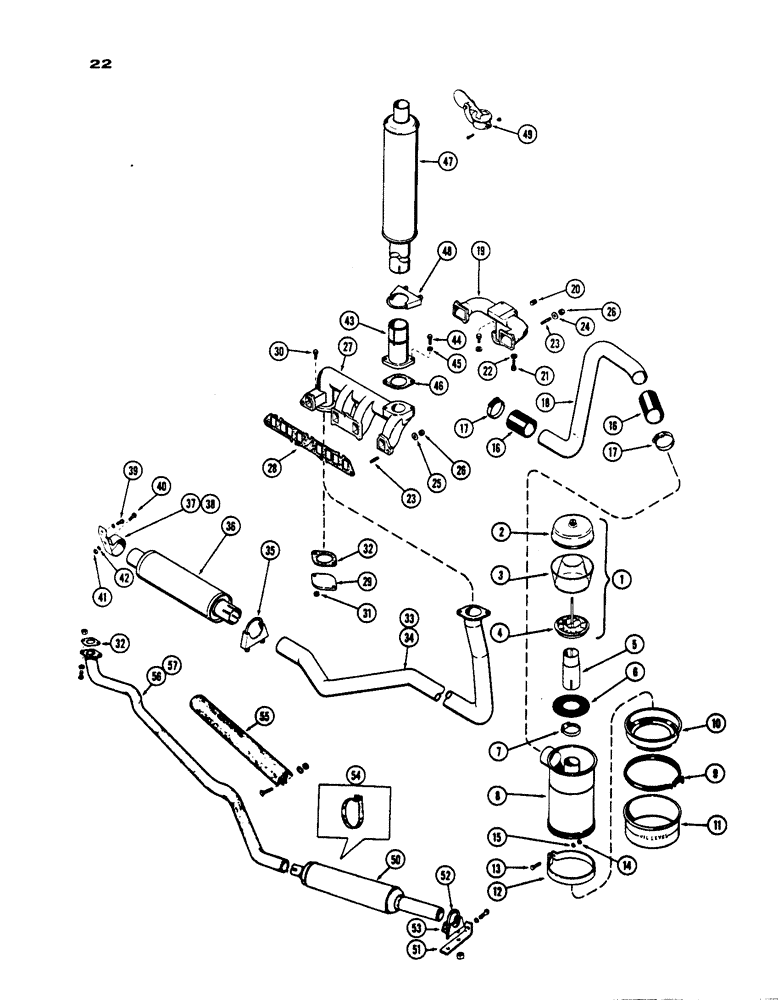

Запчасти Case IH 430 (022) - AIR CLEANER, MANIFOLD AND MUFFLER, PRIOR TO S/N 8262800, 430 MODEL, 148B SPARK IGNITION ENGINE (02) - ENGINE

1

A35321

CLEANER

PRE-CLEANER ASSY. (incl. ref. 2, 3 & 4)

1шт.

2

D30676

COVER

1шт.

3

D30675

BODY

1шт.

4

NSS

NOT SOLD SEPARAT

LOWER HALF

1шт.

5

A35322

EXTENSION

- pre-cleaner

1шт.

6

A35336

SHIELD - pre-cleaner extension

1шт.

7

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- extension to air cleaner #28, 1.31/2.25 Type F Worm

1шт.

8

G45267

AIR-CLEANER - complete (incl. ref. 9, 10 & 11)

1шт.

9

G45011

CLAMP - oil cup

1шт.

10

G46013

CUP

- oil, inner

1шт.

11

G46012

CUP - oil, outer

1шт.

12

G15662

BAND - air cleaner mounting

1шт.

13

111-108

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - 1/4" x 3/4" rd. hld. sq. nk.

1шт.

14

25-104

NUT,1/4"-20, G5

1шт.

15

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

16

G46309

X,1.5" ID x 0.188" OD x 3" L

HOSE - intake tube

2шт.

17

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

18

G46288

TUBE,1.5" OD

- air cleaner to carburetor

1шт.

19

G11920

X

MANIFOLD - intake (incl. ref. 20)

1шт.

20

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" sq. hd.

1шт.

21

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

22

92-6

LOCK WASHER,3/8"

2шт.

23

VT4510

X

STUD - manifold to head (3/8" x 1-3/4")

7шт.

24

VT4504

WASHER

- special, stud

4шт.

25

95-6

WASHER,3/8"

- plain 3/8"

3шт.

26

VT3362

X

NUT - brass, 3/8" N.C.

7шт.

27

G2042

MANIFOLD

- exhaust

1шт.

28

VT3394

X

GASKET -, Serial Range: manifolds-head

1шт.

29

G2044

LARGE PLATE

COVER - exhaust opening

1шт.

30

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- cover, 3/8" x 1-1/2" N.C. hex hd.

2шт.

31

VT3362

X

NUT - brass, 3/8" N.C.

2шт.

32

G46853

MANIFOLD GASKET

- exhaust opening flange

2шт.

33

A35176

PIPE - underneath (Standard #8191147 and after)

1шт.

34

A35177

PIPE - underneath (Gen. Purpose #8191147 and after)

1шт.

35

O6437AB

X

CLAMP - pipe to muffler (SN8191147 and after)

1шт.

36

G45287

MUFFLER

- underneath (SN8191147 and after)

1шт.

37

G15786

CLAMP - muffler (Standard #8191147 and after)

1шт.

38

A35178

BRACKET

CLAMP - muffler (Gen. Purpose #8191147 and after)

1шт.

39

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

40

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

1шт.

41

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

1шт.

42

92-5

LOCK WASHER,5/16"

2шт.

43

G2125

OUTLET

- upright muffler

1шт.

44

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

45

92-6

LOCK WASHER,3/8"

2шт.

46

G46853

MANIFOLD GASKET

- exhaust opening

1шт.

47

G45264

MUFFLER

- upright

1шт.

48

A13240

CLAMP,2-5/8" ID

- muffler

1шт.

49

G45048

CAP

- weather, upright muffler

1шт.

50

G13032

MUFFLER

- underneath (Before SN8191147)

1шт.

51

G15678

BRACKET - rear (Gen. Purpose before SN8191147)

1шт.

52

G46003

U-BOLT

"U" BOLT - muffler (Before SN8191147)

2шт.

53

G46004

CLAMP

- "U" bolt (Before SN8191147)

2шт.

54

G10823

BRACKET - rear (Standard before SN8191147)

1шт.

55

G14421

SHIELD - pipe (Before SN8191147)

1шт.

56

G45279

PIPE - exhaust (Standard before SN8191147)

1шт.

57

G45282

PIPE - exhaust (Gen. Purpose before SN8191147)

1шт.
