Запчасти Case IH 430 (020) - OIL FILTER, OIL PUMP AND OIL PAN, PRIOR TO S/N 8262800, 430 MODEL, 148B SPARK IGNITION ENGINE (02) - ENGINE

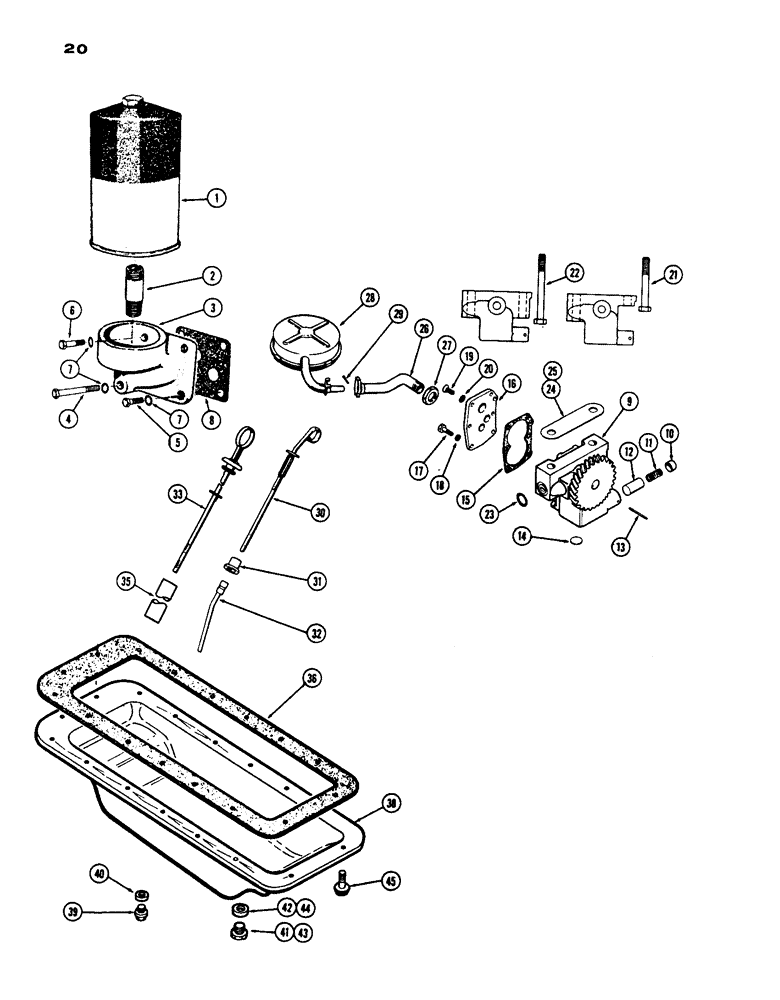

Схема запчастей Case IH 430 - (020) - OIL FILTER, OIL PUMP AND OIL PAN, PRIOR TO S/N 8262800, 430 MODEL, 148B SPARK IGNITION ENGINE (02) - ENGINE
7
16
1
42
12
18
21
36
2
43
17
23
44
39
33
3
28
4
22
20
35
40
41
27
38
30
14
24
25
7
45
9
32
10
15
31
20
29
13
19
11
26
5
8
6

Артикул

Название

Примечание

Количество

1

G45210

FILTER, ELEMENT

FILTER - engine oil

1шт.

2

G49074

ADAPTER -, Serial Range: filter-bracket

1шт.

3

G2122

BRACKET - filter mounting

1шт.

4

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

5

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

6

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

7

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

4шт.

8

G46854

GASKET

-, Serial Range: bracket-block

1шт.

9

G11844

PUMP, ENGINE OIL

OIL PUMP ASSY. - complete (incl. ref. 10 - 20)

1шт.

10

VT3221

X

RETAINER - relief spring

1шт.

11

G48513

VALVE SPRING

SPRING - relief

1шт.

12

VT3298

X

VALVE - relief

1шт.

13

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

PIN, 1/8" x 1 1/8", Slotted

1шт.

14

VT3356

PLUG - pump body

2шт.

15

G46852

GASKET

- pump cover

1шт.

16

NSS

NOT SOLD SEPARAT

COVER - pump

1шт.

17

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Cover Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

17

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Cover Hex, 1/4"-20 x 1 1/4", G5

1шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

19

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- mach., 1/4" x 5/8" N.C. flat hd.

2шт.

20

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, Ext Csk Tooth, 1/4"

2шт.

21

G49063

BOLT

- place, 1/2" x 3-3/4"

1шт.

22

G49059

BOLT

- place, 1/2" x 4-3/4"

2шт.

23

O8416AB

X

"O" RING - oil port

1шт.

24

G11337

SHIM,.002" Thk

Pump to block .002" Thk

2шт.

25

G11338

SHIM,.005" Thk

Pump to block .005" Thk

1шт.

26

G45766

PIPE, EXHAUST SYSTEM

PIPE - suction

1шт.

27

223-207

LOCK NUT

NUT - lock, Serial Range: pipe-pump

1шт.

28

VTA330

FLOAT ASSY. - (includes screen)

1шт.

29

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

30

G37037

DIPSTICK

- oil lever (Before eng. #2122555) (incl. ref. 31)

1шт.

31

G46892

OIL SEAL

- rubber

1шт.

32

G45139

BRACKET

SUPPORT - dipstick (Before eng. #212555)

1шт.

33

A37148

DIPSTICK

- oil level (Eng. #2122555 and after)

1шт.

35

A37149

TUBE

- dipstick & oil filler (Eng. #2122555 and after)

1шт.

36

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A40710 from Figure 8)

1шт.

38

A35275

PAN, ENGINE OIL

OIL PAN ASSY. (Replaces A35725) (incl. ref. 39 & 40)

1шт.

39

G45786

PLUG

- drain (3/8" P.T.) (incl. ref. 40)

1шт.

40

G46903

GASKET

- (fiber)

1шт.

41

VT4521

X

PLUG - drain (7/8" N.F. thrd.)

1шт.

42

VT4520

X

GASKET - drain plug (1-3/32" O.D. x 29/32" I.D.)

1шт.

43

A14280

PLUG

- drain (3/4" N.F. thrd)

1шт.

44

O9844AB

X

GASKET - drain plug (1" O.D. x 3/4" I.D.)

1шт.

45

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - oil pan (includes lockwasher)

16шт.

Выбрано товаров: 44
