Запчасти Case IH 430 (016) - CAMSHAFT, CRANKSHAFT AND FLYWHEEL, PRIOR TO S/N 8262800, 430 MODEL, 148B SPARK IGNITION ENGINE (02) - ENGINE

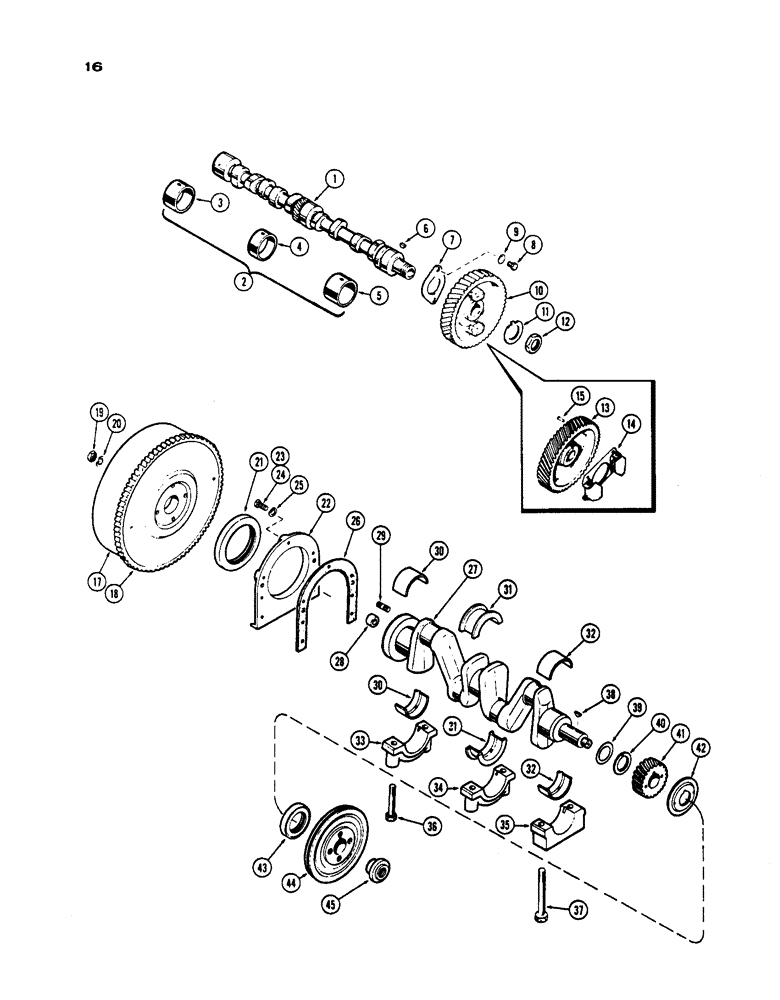

Схема запчастей Case IH 430 - (016) - CAMSHAFT, CRANKSHAFT AND FLYWHEEL, PRIOR TO S/N 8262800, 430 MODEL, 148B SPARK IGNITION ENGINE (02) - ENGINE
10
40
1
45
27
35
9
39
41
16
28
42
32
38
30
43
3
44
2
8
32
15
6
23
5
13
19
22
4
7
36
20
18
26
11
14
31
37
34
12
30
31
29
21
17
33
24
25

Артикул

Название

Примечание

Количество

1

G2055

CAMSHAFT

1шт.

2

VTA2621

X

BUSHING SET - camshaft (incl. ref. 3, 4 & 5)

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - rear

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - center

1шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - front

1шт.

6

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Gear to camshaft #6, 5/32" x 5/8"

1шт.

7

VT3365

X

PLATE - thrust, camshaft

1шт.

8

VT4500

X

SCREW - thrust plate

2шт.

9

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

10

G37066

GEAR

- camshaft (includes governor weight) See ref. 13

1шт.

11

VT4517

X

LOCKWASHER - camshaft nut

1шт.

12

VT4536

X

NUT - camshaft

1шт.

13

VT540

GEAR - camshaft (Before eng. 328T06229)

1шт.

14

VTA856

WEIGHT - governor (Before eng. #328T06229)

1шт.

15

45-38

RIVET,But Hd, 3/16" x 1/2"

- 3/16" x 1/2" rd. hd.

4шт.

17

G11859

FLYWHEEL

ASSY., crankshaft (incl. ref. 18)

1шт.

18

G11710

GEAR

- ring (135 T), crankshaft and flywheel

1шт.

19

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex, crankshaft and flywheel

4шт.

20

92-7

LOCK WASHER,7/16"

crankshaft and flywheel 7/16"

4шт.

21

A36610

OIL SEAL

OIL SEAL - rear, crankshaft, flywheel

1шт.

22

G2017

RETAINER

- rear oil seal, crankshaft and flywheel

1шт.

23

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Crankshaft & flywheel Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

24

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Crankshaft and flywheel Hex, 1/4"-20 x 1", G5

3шт.

25

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Crankshaft and flywheel 1/4"

7шт.

26

G46802

GASKET

- rear oil seal retainer, crankshaft and flywheel

1шт.

27

G11183

CRANKSHAFT

ASSY, flywheel (incl. ref. 28)

1шт.

28

VT3370

X

BUSHING - pilot, crankshaft and flywheel

1шт.

29

VT4513

X

STUD - flywheel (7/16" x 1-3/4"), crankshaft

4шт.

30

G37051

KIT

LINERS - rear brg. (Std.), crankshaft and flywheel

1шт.

30

G37052

KIT

LINERS - rear brg. (.002" undersize), crankshaft and flywheel

1шт.

30

G37053

KIT

LINERS - rear brg. (.020" undersize), crankshaft and flywheel

1шт.

30

G37054

KIT

LINERS - rear brg. (.040" undersize), crankshaft and flywheel

1шт.

31

G37047

KIT

LINERS - center brg. (Std.), crankshaft and flywheel

1шт.

31

G37048

KIT

LINERS - center brg. (.002" undersize), crankshaft and flywheel

1шт.

31

G37049

KIT

LINERS - center brg. (.020" undersize), crankshaft and flywheel

1шт.

31

G37050

KIT

LINERS - center brg. (.040" undersize), crankshaft and flywheel

1шт.

32

G37043

KIT

LINERS - front brg. (Std.), crankshaft and flywheel

1шт.

32

G37044

KIT

LINERS - front brg. (.002" undersize), crankshaft and flywheel

1шт.

32

G37045

KIT

LINERS - front brg. (.020" undersize), crankshaft and flywheel

1шт.

32

G37046

KIT

LINERS - front brg. (.040" undersize), crankshaft and flywheel

1шт.

33

G2037

CAP

- rear bearing, crankshaft and flywheel

1шт.

34

G2036

CAP

- center bearing, crankshaft and flywheel

1шт.

35

G2035

CAP

- front bearing, crankshaft and flywheel

1шт.

36

G49037

BOLT

- center & rear cap (1/2" x 3"), crankshaft and flywheel

4шт.

37

G49059

BOLT

- oil pump & brg. cap (1/2 x 4-3/4"), crankshaft and flywheel

2шт.

37

G49063

BOLT

- oil pump & brg. cap (1/2 x 3-3/4"), crankshaft and flywheel

1шт.

38

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley & gear, crankshaft and flywheel

2шт.

39

VT3368

X

SHIM - thrust (.010), crankshaft and flywheel

1шт.

40

VT3377

X

SPACER - thrust, crankshaft, flywheel

1шт.

41

VT3225

X

GEAR - crankshaft and flywheel

1шт.

42

VT3220

X

SLINGER - oil, crankshaft and flywheel

1шт.

43

A36609

OIL SEAL

OIL SEAL - front, crankshaft and flywheel

1шт.

44

G11342

X

PULLEY - fan & generator drive, crankshaft and flywheel

1шт.

45

A35673

NUT

- pulley to , crankshaft and flywheel

1шт.

Выбрано товаров: 54
