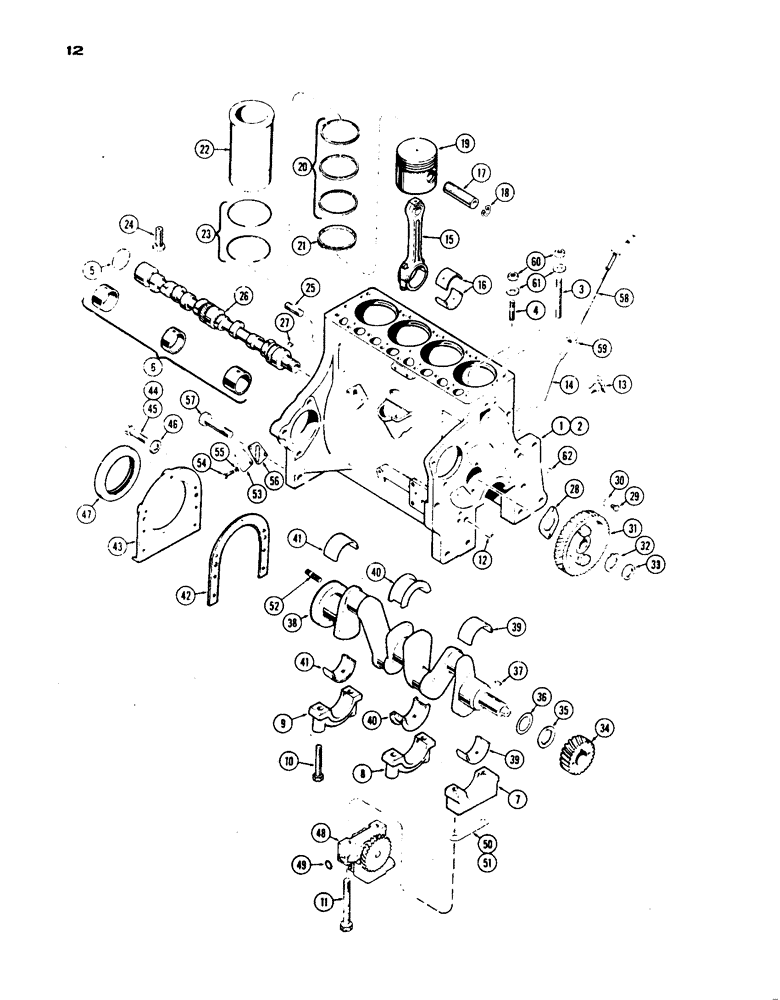

Запчасти Case IH 430 (012) - CYLINDER BLOCK ASSEMBLY, PRIOR TO S/N 8262800, 430 MODEL, 148B SPARK IGNITION ENGINE (02) - ENGINE

1

G10506

X

SHORT BLOCK ASSY (Order from Figure 14 when depleted) (incl. ref. 2 - 11)

1шт.

2

G11911

X

BLOCK ASSY. - stripped, Includes Ref. 3 - 11

1шт.

3

VT4515

X

STUD - head (1/2" x 5-7/8")

5шт.

4

VT4503

X

STUD - (1/2" x 2")

9шт.

5

VT3398

X

PLUG - rear (2-1/8" dia.)

1шт.

6

VTA2621

X

BUSHING SET - camshaft (See Figure 16)

1шт.

7

G2035

CAP

- front brg., crankshaft

1шт.

8

G2036

CAP

- center brg., crankshaft

1шт.

9

G2037

CAP

- rear brg., crankshaft

1шт.

10

G49037

BOLT

- bearing cap (1/2" x 3")

4шт.

11

G49059

BOLT

- front brg. cap (1/2" x 4-3/4")

2шт.

12

VT4535

X

RING - dowel

2шт.

13

217-103

COCK, DRAIN

DRAIN COCK - cyl. block

1шт.

14

G45139

BRACKET

SUPPORT - dipstick

1шт.

15

G11592

EXCHANGE CONROD

CONNECTING ROD ASSY. - (See Figure 18)

4шт.

16

A36500

SEAL

LINERS - bearing, std. (See Figure 18)

4шт.

17

NSS

NOT SOLD SEPARAT

PIN - wrist (See Figure 18)

4шт.

18

VT3363

X

RING - retaining (See Figure 18)

8шт.

19

G1060

PISTON

- (See Figure 18)

4шт.

20

G1062

OIL SEAL

RING - compression (See Figure 18)

12шт.

21

G1063

OIL SEAL

RING - oil (See Figure 18)

4шт.

22

G1061

SLEEVE

- cylinder (See Figure 18)

4шт.

23

G46909

O-RING,3.112" ID x 3.344" OD

"O" RING - sleeve packing

8шт.

24

VT3236

X

TAPPET - valve

8шт.

25

VT3531

X

STUD - engine mtg. (5/8" x 3")

2шт.

26

G2055

CAMSHAFT

1шт.

27

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Camshaft gear #6, 5/32" x 5/8"

1шт.

28

VT3365

X

PLATE - thrust, camshaft

1шт.

29

VT4500

X

SCREW - thrust plate

2шт.

30

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

31

G37066

GEAR

- camshaft

1шт.

32

VT4517

X

LOCKWASHER - camshaft nut

1шт.

33

VT4536

X

NUT - camshaft

1шт.

34

VT3225

X

GEAR - crankshaft

1шт.

35

VT3377

X

SPACER - thrust, crankshaft

1шт.

36

VT3368

X

SHIM - thrust, crankshaft

1шт.

37

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - gear & pulley to crankshaft

2шт.

38

G11183

CRANKSHAFT

ASSY. - (See Figure 16)

1шт.

39

G37043

KIT

LINERS - frt. bearing, Std. - (See Figure 16)

1шт.

40

G37047

KIT

LINERS - center brg., Std. - (See Figure 16)

1шт.

41

G37051

KIT

LINERS - rear bearing, Std. - (See Figure 16)

1шт.

42

G46802

GASKET

- rear oil seal retainer

1шт.

43

G2017

RETAINER

- rear oil seal

1шт.

44

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

45

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

46

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

47

A36610

OIL SEAL

OIL SEAL - rear, crankshaft

1шт.

48

G11844

PUMP, ENGINE OIL

OIL PUMP ASSY. - (See Figure 20)

1шт.

49

O8416AB

X

"O" RING - oil port

1шт.

50

G11337

SHIM,.002" Thk

Pump to block .002" Thk

2шт.

51

G11338

SHIM,.005" Thk

Pump to block .005" Thk

1шт.

52

VT4510

X

STUD - flywheel (7/16 x 1-3/4")

4шт.

53

G11702

COVER

- fuel pump opening

1шт.

54

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

55

92-5

LOCK WASHER,5/16"

2шт.

56

G46902

GASKET

- cover

1шт.

57

V14110

BOLT - block to torque tube

2шт.

58

G37037

DIPSTICK

- oil level, Includes Ref. 59

1шт.

59

G46892

OIL SEAL

- dipstick

1шт.

60

VT3361

X

NUT - head stud

14шт.

61

G49404

WASHER

- head stud

14шт.

62

VT3395

X

PLUG - oil gallery

3шт.
