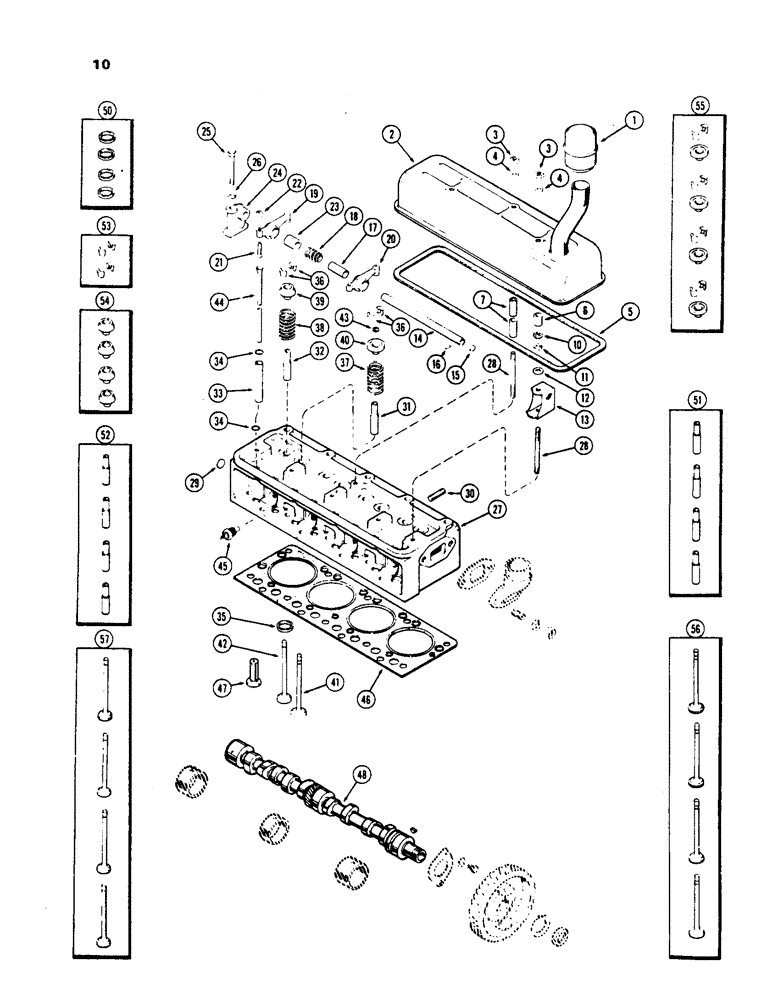

Запчасти Case IH 430 (010) - CYLINDER HEAD ASSEMBLY, PRIOR TO S/N 8262800, 430 MODEL, 148B SPARK IGNITION ENGINE (02) - ENGINE

1

A36608

CAP

- oil filler & breather

1шт.

2

G11597

COVER - valve and rocker arm

1шт.

3

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

3шт.

4

A29277

WASHER

- plain, cover nut

3шт.

5

A30009

GASKET

- cover to head (Replaces A30099)

1шт.

6

A30065

SPACER

- cover (17/32" high)

2шт.

7

A29999

SPACER

- cover (19/32" high)

2шт.

10

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

A28277

WASHER - plain, bracket nut

2шт.

13

G46250

BRACKET

- rocker arm shaft

4шт.

14

A29444

SHAFT

- rocker arm

2шт.

15

A26796

PLUG

- rocker shaft

2шт.

16

139-205

PIN - taper, rocker shaft 2/0 x 3/4", Tapered

2шт.

17

A30008

SPACER

- rocker arm shaft

2шт.

18

A30007

SPRING

- rocker arm shaft

4шт.

19

G45234

ARM

ROCKER ARM - R.H. (incl. ref. 21, 22, & 23)

4шт.

20

G45235

ARM

ROCKER ARM - L.H. (incl. ref. 21, 22 & 23)

4шт.

21

A31056

ADJUSTMENT SCREW,5/16" - 24 x 1 11/32"

SCREW - adjusting

8шт.

22

25-155

JAM NUT,Jam, 5/16"-24, G5

- jam 5/16" N.F. hex

8шт.

23

O5759AB2

X

BUSHING - rocker arm

8шт.

24

G2107

BRACKET

- center, rocker shaft

1шт.

25

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8" x 2-3/4" N.C. hex hd.

3шт.

26

92-6

LOCK WASHER,3/8"

3шт.

G11888

HEAD ASSY. - cylinder, w/valves (Replaces G11909)

1шт.

27

G11874

HEAD (CYLINDER)

HEAD ASSY. - cylinder, stripped, Includes Ref. 28 - 35

1шт.

28

G49505

STUD

- brkt. & cover to hd. (3/8" x 4-5/8") w/2" thrd.

2шт.

29

41-18

PLUG

- rear (1-1/8" dia.)

1шт.

30

G49505

STUD

- manifold

7шт.

31

NSS

NOT SOLD SEPARAT

GUIDE - intake valve stem (Order ref. 51)

4шт.

32

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve stem (Order ref. 52)

4шт.

33

G11360

TUBE,0.687" OD x 3.687" L

- push rod

8шт.

34

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- tube seal

16шт.

35

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 50)

4шт.

36

NSS

NOT SOLD SEPARAT

LOCK - retainer, valve spring (Order ref. 53)

16шт.

37

A30025

SPRING

- intake valve

4шт.

38

G10004

SPRING

- exhaust valve

4шт.

39

NSS

NOT SOLD SEPARAT

ROTO-CAP - exhaust valve (Order ref. 54)

4шт.

40

NSS

NOT SOLD SEPARAT

RETAINER - intake valve spring (Order ref. 55)

4шт.

41

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 56)

4шт.

42

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 57)

4шт.

43

G46851

SEAL

- intake valve stem

4шт.

44

G11086

ROD

PUSH ROD

8шт.

45

A30136

ADAPTER

- heat gauge bulb

1шт.

46

G10672

CYLINDER HEAD GASKET

-, Serial Range: head-block

1шт.

47

A30006

TAPPET

- valve

8шт.

48

G2055

CAMSHAFT

- (See Figure 16)

1шт.

50

G11960

KIT

INSERT KIT - exhaust valve (Set of 4)

1шт.

51

G10269

KIT

GUIDE KIT - intake valve (Set of 4)

1шт.

52

A30270

GUIDE

KIT - exhaust valve (Set of 4)

1шт.

53

G11929

LOCK

KIT - valve spring (Set of 4)

4шт.

54

G11928

CAP

ROTO-CAP KIT - exhaust valve (Set of 4)

1шт.

55

G11927

RETAINER

KIT - intake valve spring (Set of 4 w/locks)

1шт.

56

G11961

VALVE

KIT - intake (Set of 4)

1шт.

57

G11962

VALVE, ENG EXHAUST,

VALVE KIT - exhaust (Set of 4)

1шт.
