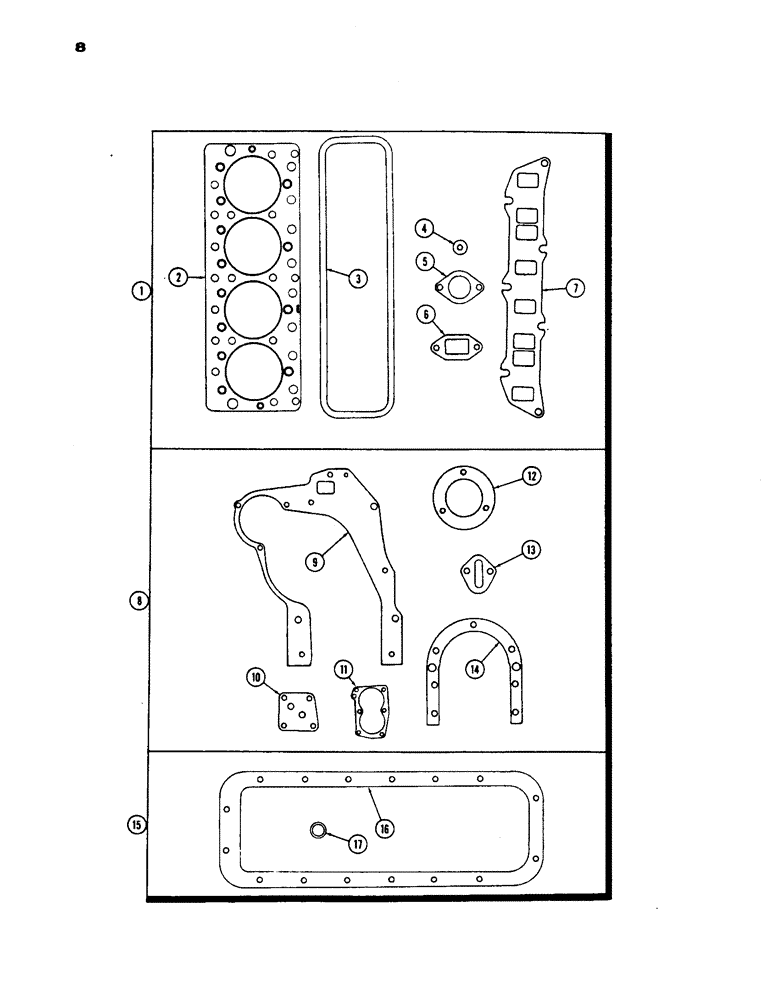

Запчасти Case IH 430 (008) - ENGINE GASKET KITS, PRIOR TO S/N 8262800, 430 MODEL, 148B SPARK IGNITION ENGINE (02) - ENGINE

1

G11917

KIT

VALVE GRIND KIT, Includes Ref. 2 - 7

1шт.

2

G10672

CYLINDER HEAD GASKET

-, Serial Range: head-block

1шт.

3

VT3246

GASKET - valve cover

1шт.

4

G46851

SEAL

- rubber, intake valve stem

4шт.

5

O562AB

X

GASKET - carburetor

1шт.

6

VT3228

X

GASKET - water outlet elbow

1шт.

7

VT3394

X

GASKET - manifold

1шт.

8

G11916

X

CYLINDER BLOCK KIT, Includes Ref. 9 - 14

1шт.

9

VT3248

X

GASKET - timing gear cover

1шт.

10

G46854

GASKET

- oil filter bracket

1шт.

11

G46852

GASKET

- oil pump cover

1шт.

12

G46875

GASKET

- water pump

1шт.

13

G46902

GASKET

- fuel pump opening

1шт.

14

G46802

GASKET

- rear oil seal retainer

1шт.

15

D128322

RELAY

GASKET KIT - oil pan, Includes Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

GASKET - oil pan

1шт.

17

O9844AB

X

GASKET - drain plug (1" O.D. x 3/4" I.D.)

1шт.

17

VT4520

X

GASKET - drain plug (1-3/32" O.D. x 29/32" I.D.)

1шт.
