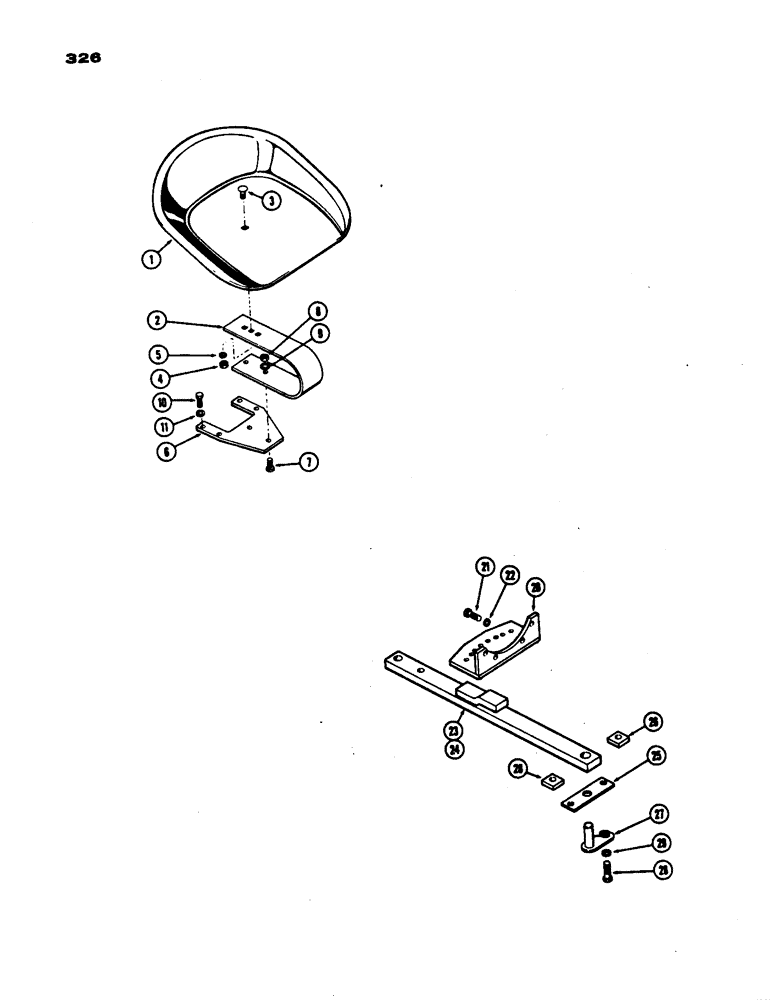

Запчасти Case IH 430 (326) - 430 STANDARD SEAT, AND DRAWBAR, PRIOR TO S/N 8262800 (09) - CHASSIS

1

G14202

PAN - seat

1шт.

2

G17203

SPRING - seat

1шт.

3

11-816

BOLT,Short NK, 1/2"-13 x 1", G2

- 1/2" x 1" rd. hd. sq. nk.

1шт.

4

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

1шт.

5

92-8

LOCK WASHER,1/2"

1шт.

6

G17204

BASE - seat spring anchor

1шт.

7

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- 1/2" x 1-1/2" N.F. hex hd.

2шт.

8

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

2шт.

9

92-8

LOCK WASHER,1/2"

2шт.

10

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

11

92-6

LOCK WASHER,3/8"

4шт.

20

G30266

SUPPORT

- rear, drawbar

1шт.

21

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Drawbar Hex, 5/8"-11 x 1 1/2", G5, Full Thd

4шт.

22

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Drawbar 5/8"

4шт.

23

G30279

DRAWBAR

- 34-3/4"

1шт.

24

G30278

DRAWBAR

- 38-1/4" (w/Case-O-Matic)

1шт.

25

G10617

SUPPORT

- front, drawbar

1шт.

26

G17139

SPACER - front support, drawbar

2шт.

27

G14403

PIN

- latch, drawbar

1шт.

28

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Drawbar Hex, 3/4"-10 x 2", G5

2шт.

29

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", Drawbar

2шт.
