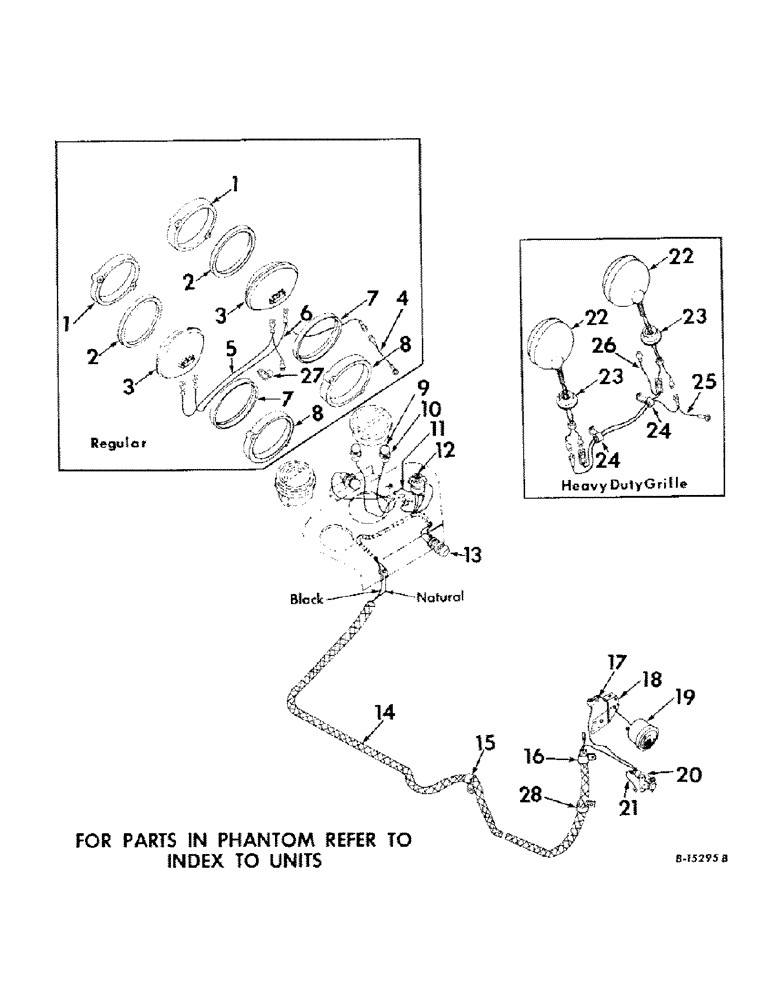

Запчасти Case IH 424 (077) - ELECTRICAL SYSTEM, ELECTRIC LIGHTING (06) - ELECTRICAL SYSTEMS

390036R91

PARTS ACCESSORY, electric lighting, tractors w/heavy duty grille, consists of all unmarked parts and those marked unit A, 424 series w/serial no. 9448 & below, 2424 series w/serial no. 2229 & below

1шт.

390033R91

PARTS ACCESSORY, electric lighting, consists of all unmarked parts and those marked unit B, 424 series w/serial no. 9448 & below, 2424 series w/serial no. 2229 & below

1шт.

394920R91

PARTS ACCESSORY, electric lighting, tractors with heavy duty grille, consists of all unmarked parts and those marked unit C, 424 series w/serial no. 9449 & above, 2424 series w/serial no. 2230 & above

1шт.

394921R91

PARTS ACCESSORY, electric lighting, consists of all unmarked parts and those marked unit D, 424 series w/serial no. 9449 & above, 2424 series w/serial no. 2230 & above

1шт.

394104R91

PARTS ACCESSORY, electric lighting, tractors with 48 inch narrow tread rear axle and rear mounted battery, consists of all unmarked parts and those marked unit E, 424 series w/serial no. 9448 & below, 2424 series w/serial no. 2229 & below

1шт.

394919R91

PARTS ACCESSORY, electric lighting, tractors with 48 inch narrow tread rear axle and rear mounted battery, consists of all unmarked parts and those marked unit F, 424 series w/serial no. 9449 & above, 2424 series w/serial no. 2230 & above

1шт.

1

385112R1

RING, head light clamping front, 2 for units B, D, E & F

1шт.

2

377303R1

RING

head light retaining front, 2 for units B, D, E & F

1шт.

3

373662R91

LAMP

UNIT ASSY, head light sealed beam, 2 for units B, D, E & F

1шт.

4

388825R91

CABLE ASSY, head light ground, units B, D, E & F

1шт.

5

388823R91

CABLE ASSY, head light junction, units B, D, E & F

1шт.

6

388824R91

CABLE ASSY, ground & head light junction, units B, D, E & F

1шт.

7

377304R1

SPECIAL RING

RING, head light retaining rear, 2 for units B, D, E & F

1шт.

155148

SCREW, 10-24 x 1-3/4 cr-rec-rd-hd mach

4шт.

8

377305R1

RING

head light clamping rear, 2 for units B, D, E & F

1шт.

9

A14553

BULB

LAMP, no. 57 12-volt

3шт.

10

376853R91

SOCKET

ASSY, instrument light

3шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

11

376869R91

CABLE

ASSY, light switch to junction block

1шт.

12

376851R91

LIGHT SWITCH

SWITCH ASSY, lighting

1шт.

13

376852R91

HOUSING

ASSY, fuse, units A, B & E

1шт.

117142

FUSE,10 Amp, Type 3AG

cartridge type AGC 10

1шт.

14

388822R91

CABLE ASSY, rear light, units A, B & E

1шт.

15

358986R1

CABLE CLIP

CLIP, rear light cable

1шт.

16

362121R1

CLIP

rear light cable, units A, B, C & D

1шт.

16

384559R1

CLIP

rear light cable, units E & F

1шт.

17

366460R1

CABLE CLIP

CLIP, rear light cable, units A, B, C & D

1шт.

18

395517R1

BRACE, tail and flasher light, units A, B & E

1шт.

102635

NUT,3/8"-16, G5

3шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

19

379789R91

LAMP

LIGHT ASSY, tail, only serviceable items are gasket, 81714R1, lamp, 142450 and lens, 157729R1

1шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

20

362002R92

SOCKET

ASSY, electric breakaway connector

1шт.

64022H

SCREW, 8-32 x 5/16 C-Z slt-fil-hd mach

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21

377119R91

CABLE ASSY, breakaway connector, Serial Range: socket-ground

1шт.

22

377866R91

LIGHT

ASSY, sealed beam head, only serviceable item is sealed beam unit, 371443R91, 2 for units A & C

1шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

23

370307R1

SEAT

head light mounting ball, 2 for units A & C

1шт.

24

370383R1

CLIP

head light cable, 2 for units A & C

1шт.

25

388896R91

CABLE ASSY, head light junction to ground, units A & C

1шт.

26

388897R91

CABLE ASSY, harness to head light junction, units A & C

1шт.

27

362121R1

CLIP

head light cable, units B, D, E & F

1шт.

28

362123R1

CLIP

tail light cable, units E & F

1шт.

271500

SOCKET

7/16-14 hex

1шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

SCREW, 7/16-14 x 3/4 hex-hd cap

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

388644R1

PANEL, headlight-illustrated with hood and radiator grille, units B, D, E & F

1шт.

2750839R1

DECAL

PRODUCT GRAPHIC, lighting switch

1шт.
