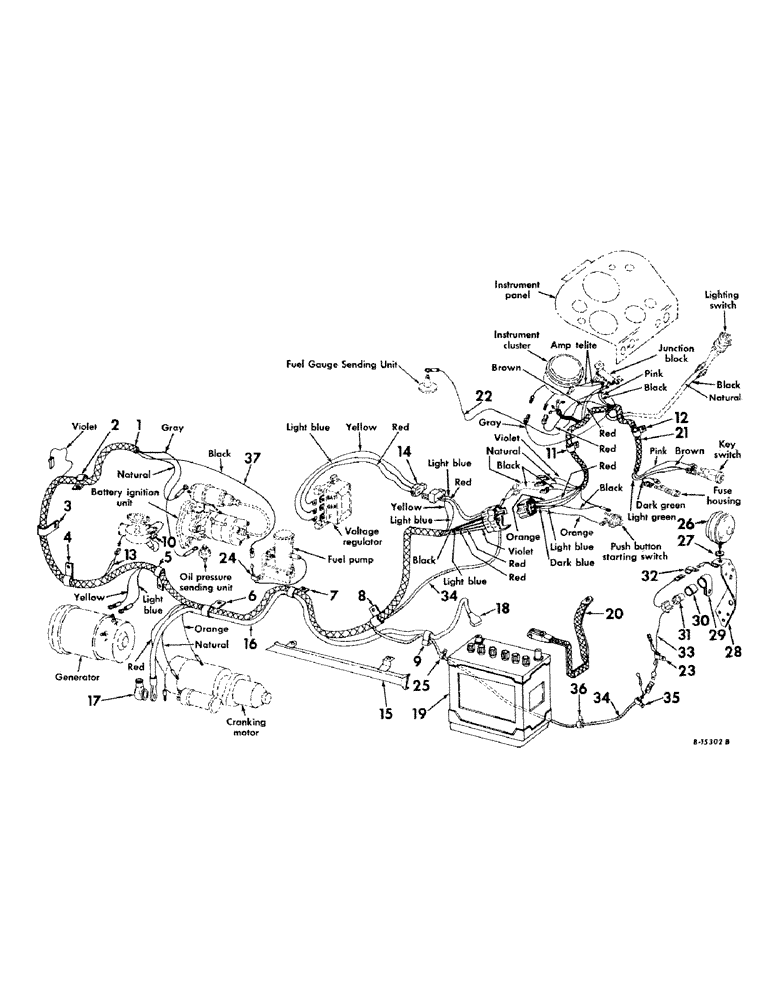

Запчасти Case IH 424 (073) - ELECTRICAL SYSTEM, GASOLINE ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

1

388818R91

HARNESS

ASSY, main cable, 424 w/serial no. 7714 & below, 2424 w/serial no. 1912 & below

1шт.

1

393549R91

HARNESS

ASSY, main cable, 424 w/serial no. 7715 & above, 2424 w/serial no. 1913 & above

1шт.

2

384559R1

CLIP

cable harness, on governor housing RH upper mounting bolt

1шт.

3

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness, on engine water outlet housing upper RH mounting bolt

1шт.

4

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness, on engine water outlet housing upper LH mounting bolt

1шт.

5

362126R1

CLIP

cable harness long, on rear generator bracket rear mounting bolt

1шт.

6

370820R1

CLIP

cable harness and battery cable, on engine mounting plate bolt

1шт.

7

362666R1

CLIP

cable harness and battery cable, on inside mounting bolt of rear steering shaft support bracket

1шт.

179832

SCREW, 3/8-16 x 7/16 hex-hd cap

1шт.

8

362666R1

CLIP

cable harness, on LH side fuel tank & steering support lower rear hole spring anchor pad

1шт.

179832

SCREW, 3/8-16 x 7/16 hex-hd cap

1шт.

9

362666R1

CLIP

battery cable, on transmission case rear cover LH side front mounting bolt

1шт.

10

370535R1

CLIP

cable angle, on LH front carburetor body screw

1шт.

11

370383R1

CLIP

panel cable harness, on lower junction block mounting stud

1шт.

16558R1

WASHER

17/64 x 5/8 x 18 ga

1шт.

12

388699R1

CLIP, panel cable harness angle

1шт.

13

390038R91

CABLE ASSY, fuel shut-off solenoid junction, 424 w/serial no. 7714 & below, 2424 w/serial no. 1912 & below

1шт.

13

NSS

NOT SOLD SEPARAT

CABLE, multiple connector to fuel shut-off solenoid, light green with black tracer, part of cable harness, 393549R91, 424 w/serial no. 7715 & above, 2424 w/serial no. 1913 & above

1шт.

14

376868R91

CABLE

ASSY, voltage regulator

1шт.

15

388700R11

SHIELD ASSY, battery cable

1шт.

16

388817R91

CABLE

W/BOLT AND COVERS, battery to solenoid switch

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

17

364910R1

BOOT

COVER, battery cable terminal

1шт.

18

383618R1

COVER

battery cable terminal small

1шт.

19

395595R1

BATTERY, Prestolite 22NF-A9Z, 12 volt

1шт.

20

378760R91

CABLE

STRAP ASSY, Serial Range: battery-ground

1шт.

21

388820R91

HARNESS

ASSY, panel cable

1шт.

22

391286R91

CABLE ASSY, fuel gauge sending unit to multiple connector, 424 w/serial no. 7714 & below, 2424 w/serial no. 1912 & below

1шт.

22

NSS

NOT SOLD SEPARAT

CABLE, fuel gauge sending unit to multiple connector, dark blue, part of cable harness, 388820R91, 424 w/serial no. 7715 & above, 2424 w/serial no. 1913 & above

1шт.

23

358986R1

CABLE CLIP

CLIP, rear light cable

1шт.

24

370535R1

CLIP

cable, on fuel pump LH mounting bolt

1шт.

25

366460R1

CABLE CLIP

CLIP, flasher to light cable

1шт.

26

394129R91

LIGHT

ASSY, flasher warning, only serviceable items are lamp, 9417866, lens, guide, 396585R1 or lens, dietz, 899280R1

1шт.

120371

NUT,1/2"-20, G5

1шт.

135629

GATHERING CHAIN

1/2 C-Z ext-tooth lock

1шт.

27

394262R1

WASHER

flasher warning light

1шт.

28

395517R1

BRACE, tail and flasher light

1шт.

102635

NUT,3/8"-16, G5

3шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

29

394133R1

FASTENER

CLAMP, flasher mounting

1шт.

109084

NUT,1/4"-20, G5

1шт.

179795

TILLAGE BLADE

SCREW, 1/4-20 x 3/4 hex-hd cap

1шт.

446179

WASHER,#12

1/4 x 1/2 x .036 C-Z

1шт.

30

394134R1

SEAL

HOSE, flasher mounting absorber

1шт.

31

394132R91

FLASHER UNIT

FLASHER ASSY, warning light

1шт.

32

358986R1

CABLE CLIP

CLIP, flasher warning light cable

1шт.

33

394340R91

CABLE ASSY, Serial Range: flasher-light

1шт.

34

388822R91

CABLE ASSY, rear light

1шт.

35

362121R1

CLIP

rear light cable

1шт.

36

NSS

NOT SOLD SEPARAT

CLIP, rear light cable, welded on LH rear fender

1шт.

36

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear light cable, on LH rear fender, tractors with 48 in. narrow tread rear axle

1шт.

102635

NUT,3/8"-16, G5

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

37

391621R91

CABLE ASSY, fuel pump to ignition coil resistor, 424 tractors w/serial no. 6734 & below, 2424 tractors w/serial no. 1774 & below

1шт.

37

394365R91

CABLE ASSY, fuel pump to ignition coil resistor, 424 tractors w/serial no. 6735 to 7714, 2424 tractors w/serial no., Serial Range: 1775-1912

1шт.

37

NSS

NOT SOLD SEPARAT

CABLE ASSY, fuel pump to fuel shut-off solenoid junction, part of cable harness, 393549R91, 424 tractors w/serial no. 7715 & above, 2424 tractors w/serial no. 1913 & above.

1шт.

394473R91

CABLE ASSY, flasher warning light jumper, used to provide a means of omitting flashing feature of the warning light

1шт.
