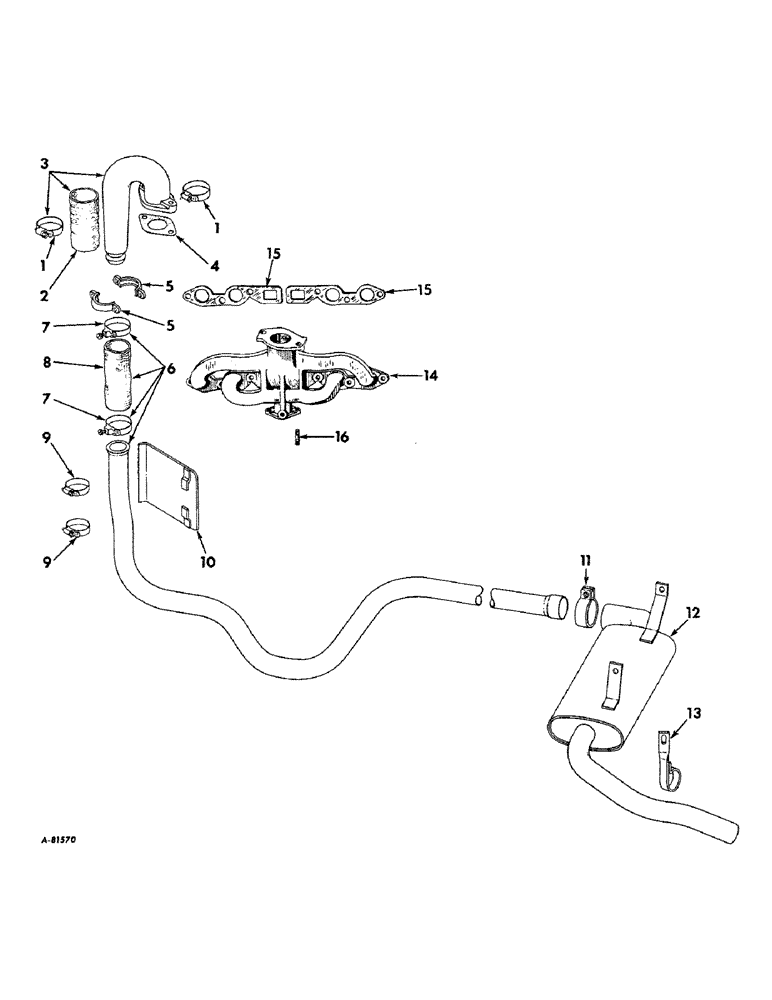

Запчасти Case IH 424 (018) - CARBURETED ENGINE, EXHAUST SYSTEM, TRACTORS WITH UNDERSLUNG EXHAUST (01) - ENGINE

1

279028R91

HOSE CLAMP,#40, 2.06/3.00 Type F Worm

CLAMP, exhaust pipe elbow

2шт.

2

391048R1

SLEEVE

exhaust pipe elbow asbestos

1шт.

3

391053R91

ELBOW

ASSY, exhaust pipe

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

368482R1

GASKET

exhaust pipe elbow

1шт.

5

362300R1

CLAMP

exhaust pipe manifold

2шт.

120376

NUT,5/16"-18, G5

2шт.

180084

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

SCREW, 5/16-18 x 1-5/8 hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

388827R1

PIPE

exhaust

1шт.

7

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

8

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

9

279024R91

HOSE CLAMP,#24, 1.06/2.00 Type F Worm

CLAMP, heat shield

2шт.

10

391051R11

SHIELD

ASSY, heat

1шт.

11

48889DA

CLAMP

exhaust muffler front

1шт.

102635

NUT,3/8"-16, G5

1шт.

NLS

NO LONGER SERVICED

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

12

3047572R92

MUFFLER

exhaust

1шт.

13

705449R1

CLAMP

muffler outer pipe support

1шт.

102635

NUT,3/8"-16, G5

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

388584R11

MANIFOLD

W/PLUG, intake & exhaust

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

6шт.

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8-27 auto-sq-hd pipe

1шт.

15

352014R3

GASKET

intake & exhaust

2шт.

16

50705D

STUD

, Serial Range: carburetor-manifold

2шт.

114493

JAM NUT,Jam, 5/16"-24, G5

2шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.
