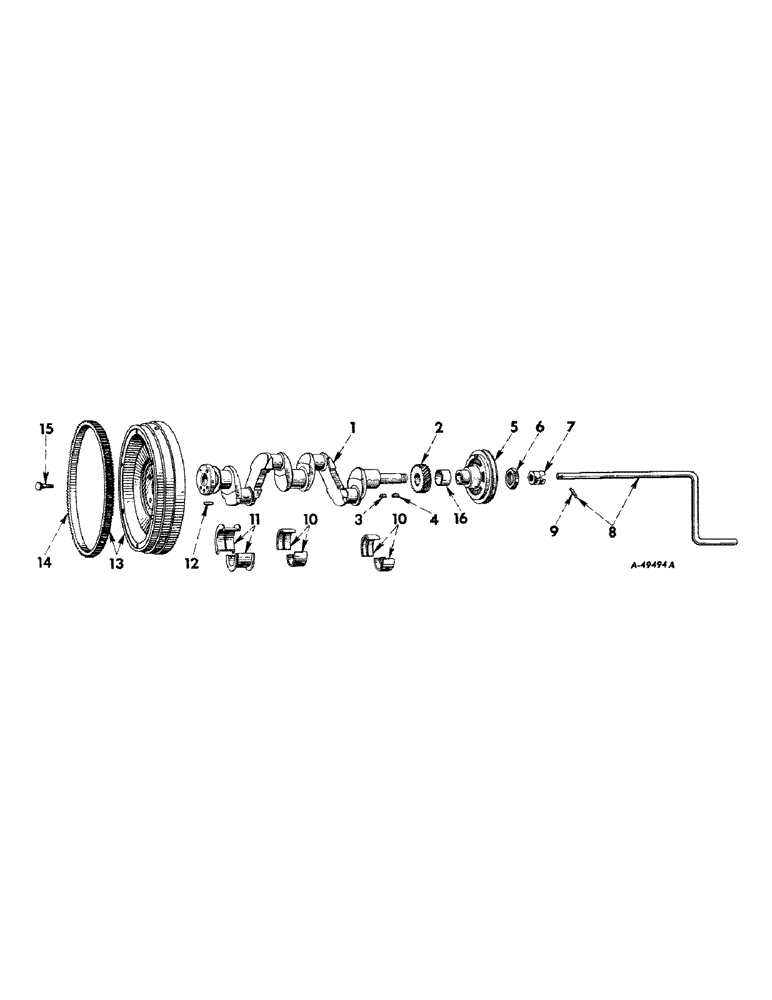

Запчасти Case IH 424 (017) - CARBURETED ENGINE, CRANKSHAFT, FLYWHEEL AND BEARINGS (01) - ENGINE

1

375795R91

CRANKSHAFT ASSEMBLY, standard, composed of (4) bearing 375723R11 (2) bearing 375755R11, (1) bearing 375762R11, (1) bushing 43291D (NSS), (1) bushing 43291D (NSS), (1) crankshaft 375600R1 (NSS), (1) pin 24550D

1шт.

1

375796R91

CRANKSHAFT W/BEARINGS FIELD PACKAGE, undersize, consists of four connecting rod bearings, three crankshaft bearings & crankshaft

1шт.

2

46870DA

PINION

crankshaft, 33 teeth

1шт.

3

218211

DRIVING SPROCKET

1/4 x 3/4 Woodruff 91, crankshaft pinion

1шт.

4

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

1/4 x 3/4 Woodruff 91, fan drive pulley

1шт.

5

368665R3

PULLEY

fan drive

1шт.

6

219760

BACK-UP RING

1-14 hex, jam, crankshaft, for tractors equipped with front PTO

1шт.

7

V84199

NUT,1"-14, Thin

crankshaft, used on tractors with starting crank

1шт.

8

53385DCX

CRANK

ASSY, starting, international tractors equipped with starting crank

1шт.

9

15204D

PIN, starting crank

1шт.

10

375755R11

BEARING SET

BEARING ASSEMBLY, crankshaft front and center, 2 halves, standard

2шт.

10

375757R11

KIT

BEARING ASSEMBLY, crankshaft front and center, 2 halves, .002 undersize

2шт.

10

376660R11

KIT

BEARING ASSEMBLY, crankshaft front and center, 2 halves, .010 undersize

2шт.

10

376663R11

BEARING ASSY

ASSEMBLY, crankshaft front and center, 2 halves, .020 undersize

2шт.

10

375756R11

CRANKSHAFT BEARING

BEARING ASSEMBLY, crankshaft front and center, 2 halves, .030 undersize

2шт.

11

375762R11

BEARING SET

BEARING ASSEMBLY, crankshaft rear, 2 halves, standard

1шт.

11

375764R11

BEARING ASSY

BEARING ASSEMBLY, crankshaft rear, 2 halves, .002 undersize

1шт.

11

376661R11

BEARING ASSY

ASSEMBLY, crankshaft rear, 2 halves, .010 undersize

1шт.

11

376664R11

BEARING ASSY

BEARING ASSEMBLY, crankshaft rear, 2 halves, .020 undersize

1шт.

11

375763R11

BEARING ASSY

BEARING ASSEMBLY, crankshaft rear, 2 halves, .030 undersize

1шт.

12

24550D

PIN

flywheel dowel

1шт.

13

388577R11

FLYWHEEL

W/RING GEAR

1шт.

14

367042R1

GEAR

flywheel ring, 134 teeth

1шт.

15

358246R1

BOLT (SPREADER),Wheel, 3/8" - 24 x 1 1/4"

BOLT, flywheel

4шт.

46349D

LOCK

flywheel bolt

2шт.

16

NSS

NOT SOLD SEPARAT

RING, oil seal wear, not serviced separately order oil seal assembly, 378193R91

1шт.

375769R91

BEARING SET

crankshaft, standard, consists of two bearings, 375755R11 and one bearing, 375762R11

1шт.

377274R91

SET

BEARING SET, crankshaft, .002 undersize, consists of two bearings, 375757R11 and one bearing, 375764R11

1шт.

376659R91

SET

BEARING SET, crankshaft, .010 undersize, consists of two bearings, 376660R11 and one bearing, 376661R11

1шт.

376662R91

SET

BEARING SET, crankshaft, .020 undersize, consists of two bearings, 376663R11 and one bearing, 376664R11

1шт.

375770R91

BEARING SET

crankshaft, .030 undersize, consists of two bearings, 375756R11 and one bearing, 375763R11

1шт.

ST553

BEARING, BALL,20mm ID x 47mm OD x 14mm W

pilot, end of crankshaft next to flywheel

1шт.
