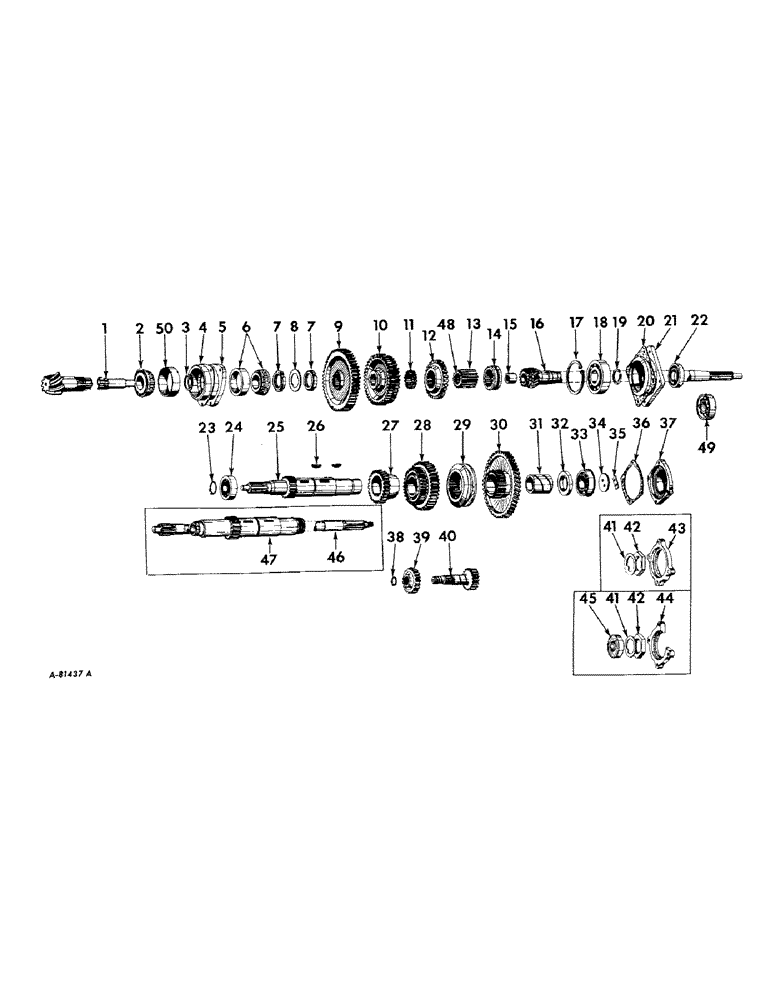

Запчасти Case IH 424 (087) - REAR FRAME AND DRIVING MECHANISMS, TRANSMISSION GEARS AND SHAFTS Rear Frame & Driving Mechanisms

1

NSS

NOT SOLD SEPARAT

SHAFT, transmission spline, not serviced separately, order transmission spline shaft and drive bevel gear package

1шт.

2

392679R91

BEARING CONE,47.63mm ID x 29.37mm W

BEARING ASSY, spline shaft

1шт.

3

3044037R1

SPACER

spline shaft brg

1шт.

3044038R1

SHIM

spline shaft roller brg spacer, .002

1шт.

3044040R1

SHIM

spline shaft roller brg spacer, .004

1шт.

3044039R1

SHIM

spline shaft roller brg spacer, .010

1шт.

4

704008R1

SHIM

spline shaft roller brg cage, .0108 (or as required)

1шт.

4

704009R1

SHIM

spline shaft roller brg cage .006 (or as required)

1шт.

4

704010R1

SHIM

spline shaft roller brg cage .0016, (or as required)

1шт.

5

3044041R1

CAGE

spline shaft roller brg

1шт.

186334

SCREW, 1/2-20 x 2-5/8 hex-hd cap

3шт.

115551

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

3шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex

3шт.

6

3044033R91

BEARING

ASSY, spline shaft taper roller front

1шт.

7

3044035R1

BEARING LOCK NUT

spline shaft brg lock

2шт.

8

3044036R1

LOCK WASHER

spline shaft brg lock nut

1шт.

9

3043990R1

GEAR

1st and reverse speed sliding, 15T

1шт.

10

751071R1

GEAR

2nd and 3rd speed sliding, 44 T and 38 T

1шт.

11

751073R2

GEAR

4th and direct speed coupling

1шт.

12

751072R3

SPLINED COUPLING

GEAR, 4th and direct speed sliding coupling, 31 T

1шт.

13

751074R21

GEAR

W/TWO BEARINGS, 751075R91, sliding quill, power train serial no. 10046 & below

1шт.

13

3069962R11

GEAR

W/TWO BEARINGS, 3069963R91, sliding quill, power train serial no. 10047 & above

1шт.

14

751076R3

COUPLING, BREAK AWAY

COUPLING, sliding rear

1шт.

15

321981R91

NEEDLE BEARING

ASSY, transmission spline shaft pilot

1шт.

3068278R1

BEARING CUP,1.02" ID x 1.25" OD x 0.1"

pilot bearing

1шт.

16

3069967R1

SHAFT

transmission driving, will work for 3068276R1

1шт.

17

751081R1

CLIP

CIRCLIP, driving shaft brg retaining

1шт.

18

ST293

BALL BEARING,45mm ID x 100mm OD x 25mm W

BEARING, transmission driving shaft rear

1шт.

19

751146R1

RING

CIRCLIP, driving shaft brg

1шт.

20

704017R1

GASKET

driving shaft brg cage

1шт.

21

751181R1

CAGE

driving shaft bearing

1шт.

Tractors w/o constant running PTO or forward & reverse transmission.

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

751080R91

SEAL

driving shaft oil

1шт.

23

703984R1

SNAP RING

CIRCLIP, countershaft rear ball bearing

1шт.

Tractors w/o constant running PTO or forward & reverse transmission.

1шт.

23

751638R1

RING, SNAP

CIRCLIP, countershaft rear ball bearing

1шт.

Tractors w/constant running PTO. Tractors w/forward & reverse transmission.

1шт.

24

ST215

BEARING, BALL,40 mm ID x 80 mm OD x 18 mm

BEARING, countershaft rear ball

1шт.

Tractors w/o constant running PTO or forward & reverse transmission.

1шт.

24

751063R91

BALL BEARING,50 mm ID x 80 mm OD x 19 mm

countershaft rear ball

1шт.

Tractors w/constant running PTO. Tractors w/forward & reverse transmission.

1шт.

25

3043987R1

COUNTERSHAFT

W/1ST SPEED GEAR

1шт.

Tractors w/o constant running PTO or forward & reverse transmission.

1шт.

26

124556

WOODRUFF KEY,#18, 1/4" x 1 1/8", HT

2шт.

27

751054R1

GEAR

2nd speed driving, 26T

1шт.

28

751055R3

GEAR

3rd and 4th speed driving, 32 T and 39 T

1шт.

29

3040868R3

SPLINED COUPLING

COUPLING, sliding gear

1шт.

30

3043988R2

GEAR

constant mesh

1шт.

31

751056R1

BUSHING

1шт.

32

751059R1

SPACER

countershaft

1шт.

33

ST382

BEARING, BALL

BEARING, countershaft front ball

1шт.

34

751120R2

WASHER

countershaft retaining

1шт.

Tractors w/o constant running PTO or forward & reverse transmission.

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

35

751441R1

SHIM

PLATE, countershaft lock

1шт.

Tractors w/o constant running PTO or forward & reverse transmission.

1шт.

36

751061R1

GASKET

countershaft front ball bearing retainer

1шт.

Tractors w/o constant running PTO or forward & reverse transmission.

1шт.

37

751062R1

RETAINER

countershaft front ball bearing

1шт.

Tractors w/o constant running PTO or forward & reverse transmission.

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

38

704029R1

RING

CIRCLIP, 1 ext seeger

1шт.

Q319

WASHER, 1-1/64 x 1-35/64 x 12 ga

1шт.

39

3043991R1

GEAR

reverse idler driving, 21 T

1шт.

40

751082R2

GEAR

SHAFT AND GEAR, reverse idler, 20T, power train no. 16649 & below

1шт.

40

3071849R1

SHAFT

AND GEAR, reverse idler, 20T, power train no. 16650 & above

1шт.

41

751066R1

WASHER

countershaft front brg lock

1шт.

Tractors w/constant running PTO. Tractors w/forward & reverse transmission.

1шт.

42

751065R1

BEARING LOCK NUT

countershaft front brg lock

1шт.

Tractors w/constant running PTO. Tractors w/forward & reverse transmission.

1шт.

43

751150R1

RETAINER

countershaft front ball brg

1шт.

Tractors w/constant running PTO.

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

44

3048705R1

RETAINER

countershaft front ball brg

1шт.

Tractors w/forward & reverse transmission.

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1/18 hex-hd cap

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

45

3048764R1

SLINGER

FLINGER, PTO front shaft oil

1шт.

Tractors w/forward & reverse transmission.

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd cup-pt set

2шт.

46

3068451R2

SHAFT

front PTO

1шт.

Tractors w/constant running PTO.

1шт.

46

3048703R31

SHAFT

W/FLINGER, front PTO

1шт.

Tractors w/forward & reverse transmission.

1шт.

516010R1

O-RING

CIRCLIP, 3/4 ext

1шт.

751142R1

WASHER

PTO front shaft retainer

1шт.

47

3043992R11

SHAFT

COUNTERSHAFT W/GEAR & BUSHING, 1st speed driving

1шт.

Tractors w/constant running PTO. Tractors w/forward & reverse transmission.

1шт.

48

751075R91

BEARING

sliding quill gear needle, power train no. 10046 & below

1шт.

48

3069963R91

BEARING

sliding quill gear needle, power train no. 10047 & above

1шт.

49

ST553

BEARING, BALL,20mm ID x 47mm OD x 14mm W

BEARING, clutch pilot

1шт.

50

170234R1

BEARING ASSY,1.75" ID x 3.75" OD x 1.1875"

BEARING, spline shaft rear cup

1шт.

3068279R91

SHAFT

PACKAGE, transmission spline shaft and drive bevel gear, power train no. 10046 & below

1шт.

3069966R91

SHAFT

PACKAGE, transmission spline shaft and drive bevel gear, power train no. 10047 & above

1шт.

372703R4

FLUID

hy-tran, one quart can

1шт.

372704R4

TRANSMISSION OIL

FLUID, hy-tran, one gallon can

1шт.

372705R4

FLUID

hy-tran, five gallon can

1шт.

407024R4

FLUID

hy-tran, fifteen gallon can

1шт.
