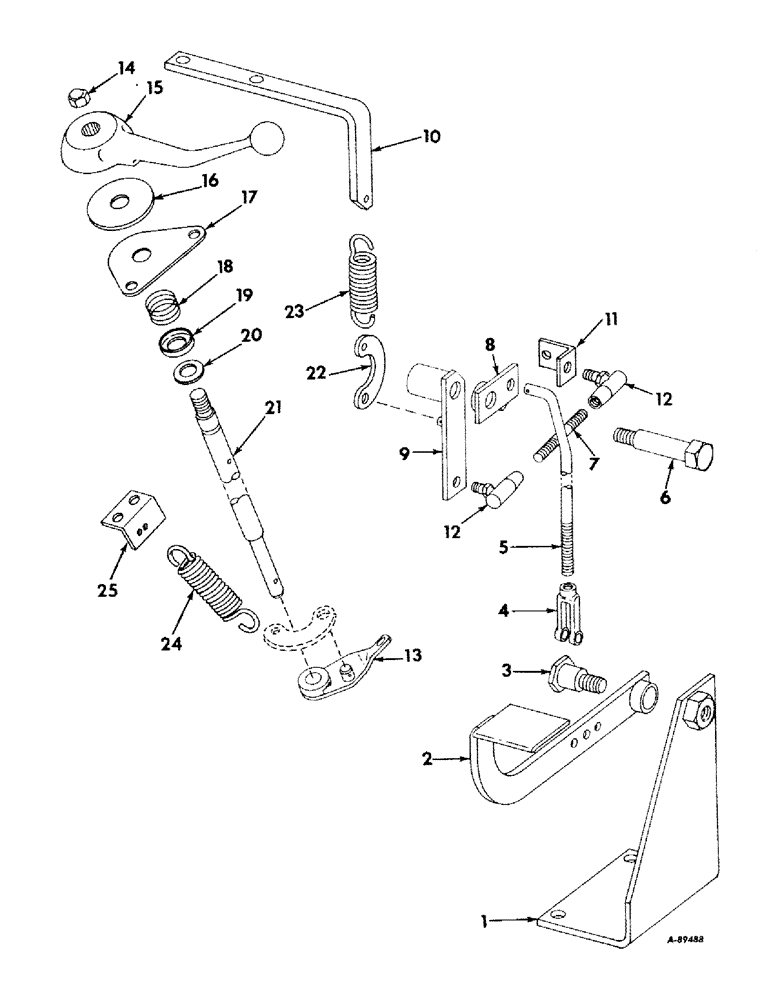

Запчасти Case IH 424 (050) - GOVERNOR, FOOT PEDAL ACCELERATOR, GASOLINE ENGINE TRACTORS Governor

391121R92

PACKAGE

PARTS ACCESSORY, foot pedal accelerator, also order spring, 399150R1 for carburetor, 389683R92, Serial Range: -7333

1шт.

1

391127R11

SUPPORT ASSY, spring anchor and pedal

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

2шт.

2

391124R93

PEDAL ASSY, foot accelerator

1шт.

3

379586R1

SHAFT, foot accelerator pivot

1шт.

4

116383

CLEVIS

1/4-28 x 1-3/8 short adjustable rod end

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-28 hex, jam

1шт.

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, 1/4 x 51/64 rod end

1шт.

137130

PIN

1/16 x 7/16 cot.

2шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .065 C-Z

1шт.

5

391128R1

ROD, throttle control to foot control

1шт.

6

391810R1

BOLT, operating lever

1шт.

120369

NUT,3/8"-24, G5

1шт.

446221

WASHER,7/16"

1/2 x 1-1/8 x .083 C-Z

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

7

399382R1

STUD, foot accelerator operating

1шт.

8

391129R11

LEVER ASSY, foot accelerator control

1шт.

9

391132R21

LEVER ASSY, foot accelerator operating

1шт.

10

393077R1

BRACKET, foot accelerator return spring

1шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

SCREW, 3/8-16 x 1-5/8 hex-hd cap

2шт.

11

391136R1

ANGLE, operating rod bracket

1шт.

12

19322R1

BALL JOINT

JOINT, 1/4-28 x 1-5/16 ball

2шт.

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

2шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-28 C-Z hex

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

13

391137R91

ARM ASSY, governor control rod

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

14

369478R1

NUT

7/16-20 lock, ESNA

1шт.

496-21047

WASHER

15/16 x 59/64 x .065 C-Z

1шт.

15

369464R2

LEVER

HANDLE, governor control

1шт.

16

394716R1

DISC

GASKET, governor control friction

1шт.

17

369465R1

SUPPORT

PLATE, governor control friction

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

131420

NUT

1/4-20 C-Z low crown

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 C-Z hex-hd cap

2шт.

18

394715R1

SPRING

governor control

1шт.

19

370628R1

RETAINER

RETAINER, governor control spring

1шт.

20

370627R2

SPACER

governor control spring

1шт.

21

399383R1

SHAFT, governor control

1шт.

19928R1

PIN,3/16" x 3/4", Coiled

1шт.

22

369468R1

SUPPORT

LINK, governor control spring anchor

1шт.

107761

COTTER PIN,1/16" x 5/8"

PIN, SPLIT, (COTTER), 1/16" x 5/8"

1шт.

23

356789R1

SPRING, foot accelerator return

1шт.

24

357012R1

VALVE SPRING

SPRING, hand lever anchor balance

1шт.

25

392142R1

ANGLE

balance spring anchor

1шт.
