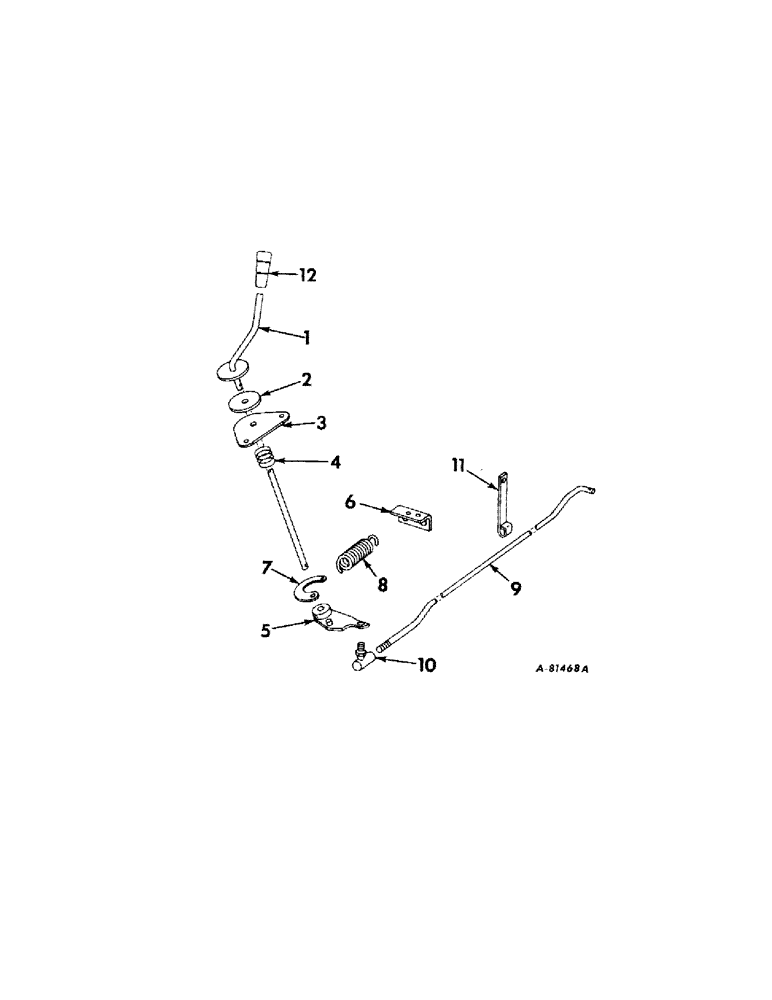

Запчасти Case IH 424 (048) - GOVERNOR, ENGINE SPEED CONTROLS, GASOLINE ENGINE TRACTORS Governor

1

388631R12

LEVER ASSY, governor control hand

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

118775

WASHER,3/8" x 13/16" x .065"

13/32 x 13/16 x 16 ga

2шт.

2

399168R1

WASHER

governor control friction disc

1шт.

3

388633R1

PLATE, governor control friction

1шт.

109084

NUT,1/4"-20, G5

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 hex-hd cap

2шт.

4

48826D

SPRING

governor control

1шт.

5

388635R11

ARM ASSY, governor control rod

1шт.

107761

COTTER PIN,1/16" x 5/8"

PIN, SPLIT, (COTTER), 1/16" x 5/8"

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

1шт.

6

392142R2

ANGLE

balance spring anchor

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

2шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

369468R1

SUPPORT

RING, governor control spring anchor

1шт.

8

370587R1

SPRING

governor control balance

1шт.

9

388637R1

ROD, governor control

1шт.

107761

COTTER PIN,1/16" x 5/8"

PIN, SPLIT, (COTTER), 1/16" x 5/8"

1шт.

16558R1

WASHER

17/64 x 5/8 x .065

1шт.

10

19318R1

BALL JOINT

JOINT, 1/4-28 ball

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-28 hex, jam

1шт.

25-114

NUT,1/4"-28, G5

1/4-28 hex

1шт.

11

388638R1

CLIP, governor control rod

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

12

388634R1

GRIP

governor control rod handle

1шт.
